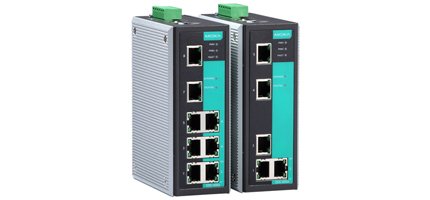

EDS-405A-PN-T
5-port managed Ethernet switches with PROFINET enabled
EDS-405A-PN, PROFINET etkinleştirilmiş 5 portlu Ethernet anahtarlarıdır. Gömülü PROFINET ile Simatic Step 7'ye kolayca entegre edilebilir. Hızlı önyükleme, Turbo Ring ve Turbo Chain Fast Recovery teknolojisine sahip EDS-405A-PN anahtarları, PROFINET ağ performansını optimize edebilir. Ayrıca IGMP, IEEE 802.1Q VLAN, QoS, Port Mirroring, SNMP, bant genişliği yönetimi ve e-posta veya röle ile uyarı gibi çeşitli kullanışlı yönetim işlevlerini de destekler.
- PROFINET enabled by default
- PROFINET I/O parameters, I/O cyclic data, DCP, DHCP, fully compatible with PROFINET Real-Time
- PROFINET GSD file, SIMATIC STEP 7 device icons are included
- Port mirroring, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
ÜRÜN SİPARİŞ KODLARI :
| Model | Açıklama |
|---|---|
| EDS-405A | Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, 0°C to 60°C operating temperature |
| EDS-405A-T | Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, -40 to 75°C operating temperature |
| EDS-405A-MM-SC | Entry-level managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, 0 to 60°C operating temperature |
| EDS-405A-MM-SC-T | Entry-level managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, -40 to 75°C operating temperature |
| EDS-405A-MM-ST | Entry-level managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, 0 to 60°C operating temperature |
| EDS-405A-MM-ST-T | Entry-level managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, -40 to 75°C operating temperature |
| EDS-405A-SS-SC | Entry-level managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, 0 to 60°C operating temperature |
| EDS-405A-SS-SC-T | Entry-level managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, -40 to 75°C operating temperature |
| EDS-405A-EIP | Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, 0 to 60°C operating temperature, EtherNet/IP enabled |
| EDS-405A-EIP-T | Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, -40 to 75°C operating temperature, EtherNet/IP enabled |
| EDS-405A-PN | Entry-level managed Ethernet switch with 5 0/100BaseT(X) ports, 0 to 60°C operating temperature, PROFINET enabled |
| EDS-405A-PN-T | Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, -40 to 75°C operating temperature, PROFINET enabled |
| EDS-405A-PTP | Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, hardware-based IEEE 1588 PTPv2 protocol support, -10°C to 60°C operating temperature |
| EDS-405A-PTP-T | Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, hardware-based IEEE 1588 PTPv2 protocol support, -40°C to 75°C operating temperature |
| Toplam Port Sayısı | : | 5 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 5 |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging |
| Protocols | IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, TFTP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, DHCP Option 66/67/82, BootP, LLDP, PROFINET, EtherNet/IP, Modbus/TCP, IPv6, NTP Server/Client |
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| • Switch Properties | |
| MAC Table Size | 2 K (EDS-405A-PN), 8 K (EDS-408A-PN) |
| Packet Buffer Size | 1 Mbit |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Console Port | RS-232 (RJ45 connector) |
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
| LED Indicators | PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| • Power Requirements | |
| Input Voltage | 24 VDC (12 to 45 VDC), redundant dual inputs |
| Input Current | EDS-405A-PN: 0.24 A @ 24 V EDS-408A-PN: 0.26 A @ 24 V |
| Overload Current Protection | Present |
| Connection | 1 removable 6-contact terminal block |
| Reverse Polarity Protection | Present |
| • Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Packing Size | 19.2 x 16.8 x 9.3 cm |
| Weight | 650 g |
| Packing Weight | EDS-405A-PN series: 1140 g EDS-408A-PN series: 1220 g |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1** |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC |
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A |
| EMS | EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 |
| Traffic Control | NEMA TS2 |
| Rail Traffic | EN 50121-4* |
| Marine | DNV, GL |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| • MTBF (mean time between failures) | |
| Time | EDS-405A-PN Series: 392,000 hrs EDS-408A-PN Series: 363,000 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
