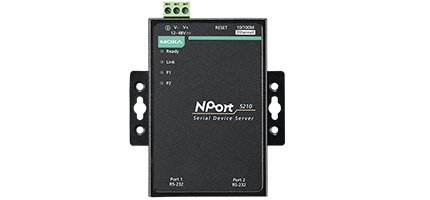

NPort 5210-T
NPort 5200 aygıt sunucuları, standart bir ağ API (Winsock, BSD Soketleri) temelli yazılımlarla uyumluluk sağlayarak TCP Server, TCP Client veya UDP çalışma modunda çalışabilir.
- Kolay kurulum için kompak tasarım
- Soket modları: TCP sunucu / TCP istemci / UDP
- Birden fazla aygıt sunucusunu yapılandırmak için kullanımı kolay Windows yardımcı programı
- 10 / 100M Ethernet'i desteği
- 2 telli ve 4 telli RS-485 için patentli ADDC® (Otomatik Veri Yön Kontrolü)
- Ağ yönetimi için SNMP MIB-II
ÜRÜN SİPARİŞ KODLARI :
| Ürün | Açıklama |
|---|---|
| NPort 5210 | 2-port RS-232 device server, 0 to 55°C operating temperature |
| NPort 5210 w/ adapter | 2-port RS-232 device server with adapter, 0 to 55°C operating temperature |
| NPort 5210-T | 2-port RS-232 device server, -40 to 75°C operating temperature |
| NPort 5230 | 2-port device server with 1 RS-232 port and 1 RS-422/485 port, 0 to 55°C operating temperature |
| NPort 5230 w/ adapter | 2-port device server with 1 RS-232 port and 1 RS-422/485 port, 0 to 55°C operating temperature (with adapter) |
| NPort 5230-T | 2-port device server with 1 RS-232 port and 1 RS-422/485 port, -40 to 75°C operating temperature |
| NPort 5232 | 2-port RS-422/485 device server, 0 to 55°C operating temperature |
| NPort 5232 w/ adapter | 2-port RS-422/485 device server with adapter, 0 to 55°C operating temperature |
| NPort 5232-T | 2-port RS-422/485 device server, -40 to 75°C operating temperature |
| NPort 5232I | 2-port RS-422/485 device server with 2 KV optical isolation, 0 to 55°C operating temperature |
| NPort 5232I w/ adapter | 2-port RS-422/485 device server with 2 KV optical isolation, 0 to 55°C operating temperature (with adapter) |
| NPort 5232I-T | 2-port RS-422/485 device server with 2 KV optical isolation, -40 to 75°C operating temperature |
| Çalışma Sıcaklığı | : | -40/+75C |
| Toplam Port Sayısı | : | 2 |
| RS-232 | : | 2 |
| Konnektör Tipi | : | RJ45 |
| • Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV built-in |
| • Serial Interface | |
| Number of Ports | 2 |
| Serial Standards | NPort 5210: RS-232 NPort 5230: 1 RS-232 port, 1 RS-422/485 port NPort 5232/5232I: RS-422/485 |
| Connector | NPort 5210: RJ45 (8 pins) NPort 5230/5232/5232I: Terminal Block (5 contacts per port) |
| Serial Line Protection | 2 kV isolation protection (NPort 5232I/5232I-T) |
| RS-485 Data Direction Control | ADDC® (Automatic Data Direction Control) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS (RS-232 only), DTR/DSR (NPort 5210 only), XON/XOFF |
| Baudrate | 110 bps to 230.4 kbps |
| • Serial Signals | |
| RS-232 | NPort 5210: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND NPort 5230: TxD, RxD, RTS, CTS, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Network Protocols | ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, ARP |
| Configuration Options | Web Console, Serial Console (NPort 5210/5230 only), Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x |
| • Physical Characteristics | |
| Housing | Metal |
| Weight | NPort 5210: 340 g (0.75 lb) NPort 5230/5232: 360 g (0.79 lb) NPort 5232I: 380 g (0.84 lb) |
| Dimensions | NPort 5210/5230/5232: Without ears: 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in) With ears: 90 x 100.4 x 22 mm (3.54 x 3.95 x 0.87 in) NPort 5232I: Without ears: 67 x 100.4 x 35 mm (2.64 x 3.95 x 1.37 in) With ears: 90 x 100.4 x 35 mm (3.54 x 3.95 x 1.37 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | NPort 5210: 325 mA @ 12 VDC NPort 5230: 325 mA @ 12 VDC NPort 5232: 280 mA @ 12 VDC NPort 5232I: 365 mA @ 12 VDC |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs |
| Marine | DNV (excluding the NPort 5210) |
| Medical | (NPort 5210 only) EN 60601-1-2 Class B, EN55011 |
| • Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| • MTBF (mean time between failures) | |
| Time | NPort 5210: 381,342 hrs NPort 5230: 377,937 hrs NPort 5232/5232I: 309,383 hrs |
| Standard | Telcordia (Bellcore) Standard TR/SR |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
