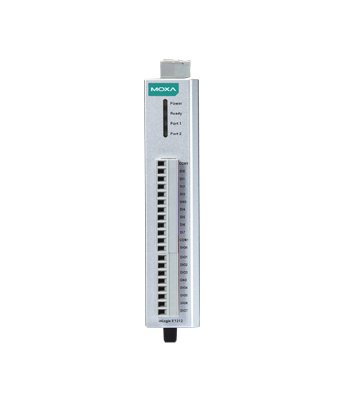

ioLogik E1212-T
Ethernet remote I/O with 2-port Ethernet switch, 8 DIs, 8 DOs
ioLogik E1200 serisi, I/O verilerini almak için en sık kullanılan protokolleri destekler. Moxa'nın Smart I/O serisi, Modbus/TCP, EtherNet/IP protokollerinin yanı sıra SNMP, RESTful API ve Moxa MXIO kütüphanesini de desteklemektedir. IoLogik E1200, I/O verilerini alır ve bu protokollerden herhangi birine aynı anda veri dönüştürerek kolay ve zahmetsiz bağlantı sağlar.
- Esnek ve kullanıcı tanımlı ModbusTCP Slave adresleme olanağı
- Ethernet/IP Scanner mod desteği
- IIoT uygulamaları için RESTful API desteği
- Daisy-chain topolojiler için 2-Ethernet port
- Noktadan noktaya ( peer-to-peer) bağlantı desteği
- MX-AOPC UA Server ile patentli Active OPC iletişim yeteneği ( I/O verilerini doğrudan Active OPC sunucuya gönderir.)
- SNMPv1/v2c desteği ile veriler SNMP ile toplanabilir.
- Modbus/TCP Protocol desteği
- ioSearch yazılımı ile kolay konfigürasyon ve birden fazla cihazı hızlıca devreye alma
- Kullanıcı dostu Web Arabirimi
- MXIO kütüphanesi ile Windows ve Linux plaformlarında I/O Yönetimi
- UL/cUL Class I Division 2 ve ATEX Zone 2 sertifikasyonları
ÜRÜN SİPARİŞ KODLARI :
| Model | Açıklama |
|---|---|
| ioLogik E1210 | Ethernet Remote I/O with 2-port Ethernet switch and 16 DIs |
| ioLogik E1210-T | Ethernet Remote I/O with 2-port Ethernet switch and 16 DIs , -40 to 75°C operating temperature |
| ioLogik E1211 | Ethernet Remote I/O with 2-port Ethernet switch and 16 DOs |
| ioLogik E1211-T | Ethernet Remote I/O with 2-port Ethernet switch and 16 DOs, -40 to 75°C operating temperature |
| ioLogik E1212 | Ethernet Remote I/O with 2-port Ethernet switch, 8 DIs, and 8 DIOs |
| ioLogik E1212-T | Ethernet Remote I/O with 2-port Ethernet switch, 8 DIs, and 8 DIOs, -40 to 75°C operating temperature |
| ioLogik E1213 | Ethernet Remote I/O with 2-port Source Type Ethernet switch and 8 DIs, 4 DOs, and 4 DIOs |
| ioLogik E1213-T | Ethernet Remote I/O with 2-port Source Type Ethernet switch and 8 DIs, 4 DOs, and 4 DIOs, -40 to 75°C operating temperature |
| ioLogik E1214 | Ethernet Remote I/O with 2-port Ethernet switch, 6 DIs, and 6 Relays |
| ioLogik E1214-T | Ethernet Remote I/O with 2-port Ethernet switch, 6 DIs, and 6 Relays, -40 to 75°C operating temperature |
| ioLogik E1240 | Ethernet Remote I/O with 2-port Ethernet switch and 8 AIs |
| ioLogik E1240-T | Ethernet Remote I/O with 2-port Ethernet switch and 8 AIs, -40 to 75°C operating temperature |
| ioLogik E1241 | Ethernet Remote I/O with 2-port Ethernet switch and 4 AOs |
| ioLogik E1241-T | Ethernet Remote I/O with 2-port Ethernet switch and 4 AOs, -40 to 75°C operating temperature |
| ioLogik E1242 | Ethernet Remote I/O with 2-port Ethernet switch, 4 AIs, 4 DIs, and 4 DIOs |
| ioLogik E1242-T | Ethernet Remote I/O with 2-port Ethernet switch, 4 AIs, 4 DIs, and 4 DIOs, -40 to 75°C operating temperature |
| ioLogik E1260 | Ethernet Remote I/O with 2-port Ethernet switch and 6 RTDs |
| ioLogik E1260-T | Ethernet Remote I/O with 2-port Ethernet switch and 6 RTDs, -40 to 75°C operating temperature |
| ioLogik E1262 | Ethernet Remote I/O with 2-port Ethernet switch and 8 TCs |
| ioLogik E1262-T | Ethernet Remote I/O with 2-port Ethernet switch and 8 TCs, -40 to 75°C operating temperature |
| ioLogik E1212-T Özellikler | |
| • Inputs and Outputs | |
| Digital Inputs | 8 channels |
| Isolation | 3k VDC or 2k Vrms |
| • Digital Input | |
| Sensor Type | Wet Contact (NPN or PNP), Dry Contact |
| I/O Mode | DI or Event Counter |
| Dry Contact | • On: short to GND • Off: open |
| Wet Contact (DI to COM) | • On: 10 to 30 VDC • Off: 0 to 3 VDC |
| Common Type | 8 points per COM |
| Counter Frequency | 250 Hz |
| Digital Filtering Time Interval | Software Configurable |
| • Güç Özellikleri | |
| Güç Tüketimi | 155 mA @ 24 VDC |
| • MTBF (mean time between failures) | |
| Süre | 561.930 hrs |
| Veritabanı | Telcordia (Bellcore) |
| E1200 serisi Ortak Özellikler | |
| • LAN | |
| Ethernet | 2 switched 10/100 Mbps RJ45 ports |
| Koruma Seviyesi | 1.5 kV magnetic isolation |
| Protokoller | Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, HTTP |
| • Güç Özellikleri | |
| Güç Girişi | 24 VDC nominal, 12 to 36 VDC |
| • Fiziksel Özellikler | |
| Kablolama | I/O cable max. 14 AWG |
| Boyutlar | 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in) |
| Ağırlık | 200 gram altında |
| Montaj Tipi | DIN rail veya Duvara montaj (wall) |
| • Çevresel Özellikler ve Limitler | |
| Çalışma Sıcaklığı | Standart -10 to 60°C (14 to 140°F) |
| Depolama Sıcaklığı | -40 ile 85°C (-40 to 185°F) |
| Nem | 5 ile 95% (yoğuşmasız) |
| İrtifa | 2000 m kadar |
| Not | Yüksek irtifalarda cihazların düzgün çalışmasını garanti etmek için lütfen Moxa ile kontak kurunuz. |
| • Standartlar ve Sertifikasyonlar | |
| Safety | UL 508 |
| EMC/EMI | EN 55022; EN 55024; FCC Part 15, Subpart B, Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Green Product | RoHS, CRoHS, WEEE |
| Hazardous Location | UL/cUL Class I Diision 2, ATEX Zone 2 |
| • Garanti | |
| Garanti Süresi | 5 YIL |
| Detaylar | Lütfen Baknız! www.moxa.com/warranty |
