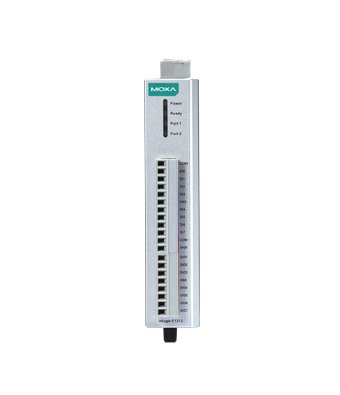

Ethernet remote I/O with 2-port Ethernet switch, 4 DIs, 4 DIOs, 4 AIs
- Esnek ve kullanıcı tanımlı ModbusTCP Slave adresleme olanağı
- Ethernet/IP Scanner mod desteği
- IIoT uygulamaları için RESTful API desteği
- Daisy-chain topolojiler için 2-Ethernet port
- Noktadan noktaya ( peer-to-peer) bağlantı desteği
- MX-AOPC UA Server ile patentli Active OPC iletişim yeteneği ( I/O verilerini doğrudan Active OPC sunucuya gönderir.)
- SNMPv1/v2c desteği ile veriler SNMP ile toplanabilir.
- Modbus/TCP Protocol desteği
- ioSearch yazılımı ile kolay konfigürasyon ve birden fazla cihazı hızlıca devreye alma
- Kullanıcı dostu Web Arabirimi
- MXIO kütüphanesi ile Windows ve Linux plaformlarında I/O Yönetimi
- UL/cUL Class I Division 2 ve ATEX Zone 2 sertifikasyonları
| Model | Açıklama |
|---|---|
| ioLogik E1210 | Ethernet Remote I/O with 2-port Ethernet switch and 16 DIs |
| ioLogik E1210-T | Ethernet Remote I/O with 2-port Ethernet switch and 16 DIs , -40 to 75°C operating temperature |
| ioLogik E1211 | Ethernet Remote I/O with 2-port Ethernet switch and 16 DOs |
| ioLogik E1211-T | Ethernet Remote I/O with 2-port Ethernet switch and 16 DOs, -40 to 75°C operating temperature |
| ioLogik E1212 | Ethernet Remote I/O with 2-port Ethernet switch, 8 DIs, and 8 DIOs |
| ioLogik E1212-T | Ethernet Remote I/O with 2-port Ethernet switch, 8 DIs, and 8 DIOs, -40 to 75°C operating temperature |
| ioLogik E1213 | Ethernet Remote I/O with 2-port Source Type Ethernet switch and 8 DIs, 4 DOs, and 4 DIOs |
| ioLogik E1213-T | Ethernet Remote I/O with 2-port Source Type Ethernet switch and 8 DIs, 4 DOs, and 4 DIOs, -40 to 75°C operating temperature |
| ioLogik E1214 | Ethernet Remote I/O with 2-port Ethernet switch, 6 DIs, and 6 Relays |
| ioLogik E1214-T | Ethernet Remote I/O with 2-port Ethernet switch, 6 DIs, and 6 Relays, -40 to 75°C operating temperature |
| ioLogik E1240 | Ethernet Remote I/O with 2-port Ethernet switch and 8 AIs |
| ioLogik E1240-T | Ethernet Remote I/O with 2-port Ethernet switch and 8 AIs, -40 to 75°C operating temperature |
| ioLogik E1241 | Ethernet Remote I/O with 2-port Ethernet switch and 4 AOs |
| ioLogik E1241-T | Ethernet Remote I/O with 2-port Ethernet switch and 4 AOs, -40 to 75°C operating temperature |
| ioLogik E1242 | Ethernet Remote I/O with 2-port Ethernet switch, 4 AIs, 4 DIs, and 4 DIOs |
| ioLogik E1242-T | Ethernet Remote I/O with 2-port Ethernet switch, 4 AIs, 4 DIs, and 4 DIOs, -40 to 75°C operating temperature |
| ioLogik E1260 | Ethernet Remote I/O with 2-port Ethernet switch and 6 RTDs |
| ioLogik E1260-T | Ethernet Remote I/O with 2-port Ethernet switch and 6 RTDs, -40 to 75°C operating temperature |
| ioLogik E1262 | Ethernet Remote I/O with 2-port Ethernet switch and 8 TCs |
| ioLogik E1262-T | Ethernet Remote I/O with 2-port Ethernet switch and 8 TCs, -40 to 75°C operating temperature |
|
ioLogik E1242 Özellikler |
|
|
•Inputs and Outputs |
|
|
Digital Input |
4 channels |
|
Konfigüre edilebilir DIO (Jumper ile) |
4 channels |
|
Analog Inputs |
4 channels |
|
Isolation |
3k VDC or 2k Vrms |
|
•Digital Input |
|
|
Sensor Type |
Wet Contact (NPN or PNP), Dry Contact |
|
I/O Mode |
DI or Event Counter |
|
Dry Contact |
• On: short to GND |
|
Wet Contact (DI to COM) |
• On: 10 to 30 VDC |
|
Common Type |
4 points per COM |
|
Counter Frequency |
250 Hz |
|
Digital Filtering Time Interval |
Software Configurable |
|
•Digital Output |
|
|
Type |
Sink |
|
I/O Mode |
DO or Pulse Output |
|
Pulse Output Frequency |
500 Hz |
|
Over-Voltage Protection |
45 VDC |
|
Over-Current Protection |
2.6 A (4 channels @ 650 mA) |
|
Over-Temperature Shutdown |
175°C (typical), 150°C (min.) |
|
Current Rating |
200 mA per channel |
|
•Analog Input |
|
|
Type |
Differantial Input |
|
Resolution |
16 bits |
|
I/O Mode |
Voltage / Current (jumper selectable) |
|
Input Range |
0 to 10 VDC, 0 to 20 mA, 4 to 20 mA, 4 to 20 mA (burnout detection) |
|
Accuracy |
±0.1% FSR @ 25°C ±0.3% FSR @ -10 and 60°C ±0.5% FSR @ -40 and 75°C |
|
Sampling Rate |
• All channels: 12 samples/sec |
|
Input Impedance |
10 mega-ohms (min.) |
|
Built-in Resistor for Current Input |
120 Ohm |
|
•Güç Özellikleri |
|
|
Güç Tüketimi |
139 mA @ 24 VDC |
|
Giriş Voltajı |
12 to 36 VDC |
|
•MTBF (mean time between failures) |
|
|
Süre |
502,210 saat |
|
Veritabanı |
Telcordia (SR332) |
|
E1200 serisi Ortak Özellikler |
|
|
•LAN |
|
|
Ethernet |
2 switched 10/100 Mbps RJ45 ports |
|
Koruma Seviyesi |
1.5 kV magnetic isolation |
|
Protokoller |
Modbus/TCP (Slave), EtherNet/IP, SNMPv1/v2c, RESTful API, TCP/IP, UDP, DHCP, BOOTP, HTTP |
|
•Fiziksel Özellikler |
|
|
Kablolama |
I/O cable max. 14 AWG |
|
Boyutlar |
27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in) |
|
Ağırlık |
200 gram altında |
|
Montaj Tipi |
DIN rail veya Duvara montaj (wall) |
|
•Çevresel Özellikler ve Limitler |
|
|
Çalışma Sıcaklığı |
Standard: -40 to 75°C (14 to 140°F) |
|
Depolama Sıcaklığı |
-40 ile 85°C (-40 to 185°F) |
|
Nem |
5 ile 95% (yoğuşmasız) |
|
Vibration |
IEC 60068-2-6 |
|
Shock |
IEC 60068-2-27 |
|
İrtifa |
2000 metreye kadar |
|
Not |
Yüksek irtifalarda cihazların düzgün çalışmasını garanti etmek için lütfen Moxa ile kontak kurunuz. |
|
•Standartlar ve Sertifikasyonlar |
|
|
Safety |
UL 508 |
|
EMC |
EN 55022, EN 55024 |
|
EMI |
CISPR 22, FCC Part 15B Class A |
|
EMS |
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 |
|
Green Product |
RoHS, CRoHS, WEEE |
|
Hazardous Location |
Class I Division 2, ATEX Zone 2 |
|
•Garanti |
|
|
Garanti Süresi |
5 YIL |
|
Detaylar |
Lütfen Bakınız! www.moxa.com/warranty |
