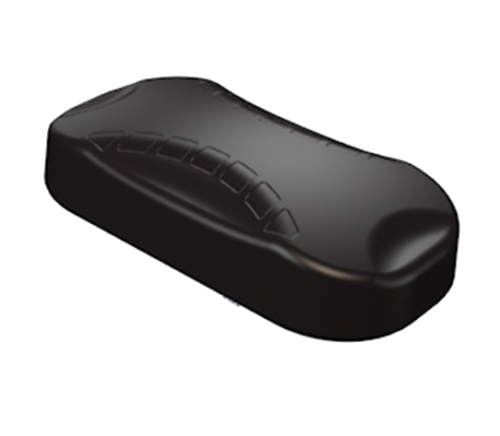

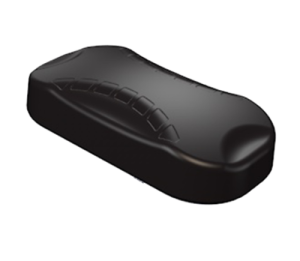

A-MIMO-0001-01 (MIMO-1-1)
Two LTE/4G/3G antennas covering all cellular bands
MIMO-1, tek bir muhafaza içinde 3 anten içerir. Tüm hücresel bantları kapsayan ve aynı zamanda MIMO veri hızını arttıran iki LTE/4G/3G anten içerir. İçerdiği üçüncü anten, -40 dereceye kadar çalışabilen yüksek performanslı bir GPS/GLONASS antendir. Endüstriyel, M2M ve IOT uygulamaları için idealdir.
- Maksimum 4.5dBi
- 2 x MiMo Wi-Fi dual bant
- GPS&GLONASS
- Darbe ve suya dayanıklı muhafaza
- 2M uygulamaları
|
Electrical Specifications |
|
|
Frequency Bands: |
690-960 MHz |
| 1710-2700 MHz |
|
|
Gain (Max): |
3dBi |
|
VSWR |
< 2.5:1 |
|
Feed Power Handling: |
10W |
|
Input Impedance: |
50Ohm (nominal) |
|
Polarisation: |
|
|
Cable loss: |
1000MHz-0.4dB |
| 3000MHz-1.6dB |
|
|
DC Short: |
Yes |
|
Mechanical Specifications |
|
|
Product Dimensions (L x W x D): |
252 mm x 127 mm x 55 mm |
|
Packaged Dimensions: |
TBC |
|
Weight: |
600 g |
|
Packaged Weight: |
TBC |
|
Radome Material: |
ABS (Halogen Free) |
| Base Material: |
Passivated ADC12 |
|
Radome Colour: |
Pantone-Black |
| RAL - Black | |
|
Environmental Specifications |
|
|
Wind Survival: |
160 km/h |
|
Temperature Range (Operating): |
-40°C / +70°C |
|
Environmental Conditions: |
Outdoor/Indoor |
|
Operating Relative Humidity: |
Up to 98% |
|
Storage Humidity: |
5% to 95% - non condensing |
|
Storage Temperature: |
-40°C / +70°C |
|
Certification Approvals and Standards |
|
|
Flammability rating: |
UL 94-V1 |
|
EN 13823 |
|
|
Water Ingress Protection Ratio/Standard: |
IP 65 (NEMA 4X) |
|
Impact resistance: |
IK 10 |
|
Salt Spray: |
MIL-STD 810F/ASTM B117 |
|
Product Safety: |
Complies with UL, CE, EN, CSA and IEC standards |
