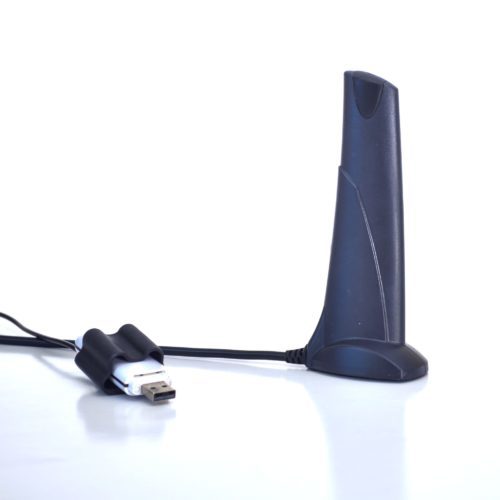

A-OMNI-0039-05-V3 (OMNI-39)
CELLULAR BLADE M2M ANTENNA 790MHZ-960MHZ & 1710MHZ-2700MHZ
İç ve dış ortamlarda kullanılabilen estetik tasarımlı OMNI-39, mobil şebeke (GPRS / EDGE / 3G / HSPA / LTE) üzerinden iletişim kuran M2M uygulamaları için idealdir.
- Maksimum 2.3.dBi
- 4G/3G ve 2G uyumlu
- Estetik tasarım
- POS terminal ve ATM uygulamaları
|
Electrical Specifications |
|
|
Frequency Bands: |
790-960MHz |
| 1710-2700 MHz | |
|
Gain (Max): |
2.3dBi |
|
VSWR |
< 2.5:1 |
|
Feed Power Handling: |
10W |
|
Input Impedance: |
50Ohm (nominal) |
|
Polarisation: |
|
|
Cable loss: |
Optional dependant |
|
DC Short: |
Yes |
|
Mechanical Specifications |
|
|
Product Dimensions (L x W x D): |
150 mm x 60 mm x 40 mm |
|
Packaged Dimensions: |
155 mm x 95 mm x 45 mm |
|
Weight: |
110 g |
|
Packaged Weight: |
140 g |
|
Radome Material: |
ABS (Halogen Free) |
|
Radome Colour: |
Black RAL
|
|
Environmental Specifications |
|
|
Wind Survival: |
Magnetic Mount. Not for vehicle use |
|
Temperature Range (Operating): |
-40°C / +70°C |
|
Environmental Conditions: |
Outdoor/Indoor |
|
Operating Relative Humidity: |
Up to 98% |
|
Storage Humidity: |
5% to 95% - non condensing |
|
Storage Temperature: |
-40°C / +70°C |
|
Certification Approvals and Standards |
|
|
Flammability rating: |
UL 94-V0 |
|
EN 13823 |
|
|
Water Ingress Protection Ratio/Standard: |
IP 55 |
|
Impact resistance: |
IK 08 |
|
Salt Spray: |
MIL-STD 810F/ASTM B117 |
|
Product Safety: |
Complies with UL, CE, EN, CSA and IEC standards |
