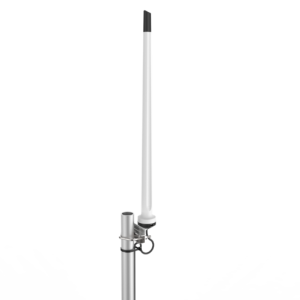

A-OMNI-0121-V3 (OMNI-291)
ALL-BAND GSM OMNI-DIRECTIONAL ANTENNA 690-960MHZ & 1710MHZ-2600MHZ
MAX GAIN: 6 DBI
- GSM 900, GSM 1800 / UMTS ve LTE Frekans bantlarını kapsar
- Kararlılığı yüksek bağlantı
- M2M için uygunluk
- Çok geniş bir frekans bandında yüksek kazanç
- Su geçirmez muhafaza
Electrical Specifications
|
Operating Frequency |
690 - 960 MHz 1710-2170MHz 2500-2700MHz |
|
Gain (Max) |
6 dBi |
|
VSWR |
< 2.5:1 |
|
Feed Power Handling |
10 W |
|
Input impedance |
50 Ohm (nominal) |
|
Polarisation |
Linear Vertical |
|
Cable loss |
0.35dB/m @ 900 MHz 0.53dB/m @ 2000 MHz 0.6dB/m @ 2500 MHz |
|
DC Short |
Yes |
Mechanical Specifications
|
Product Dimensions (L x W x D) |
555mm x 50mm x 50mm |
|
Packaged Dimensions |
595mm x 130mm x 65mm |
|
Weight |
500g |
|
Packaged Weight |
650g |
|
Radome Material |
ABS (Halogen Free) |
|
Radome Colour |
Pantone-Cool Gray (1C) RAL-7047 |
|
End Cap Colour |
Pantone-Black RAL-Black |
Environmental Specifications
|
Wind Survival |
160 km/h |
|
Temperature Range (Operating) |
-40°C to +75°C |
|
Environmental Conditions |
Outdoor/Indoor |
|
Operating Relative Humidity |
Up to 98% |
|
Storage Humidity |
5% to 95% non-condensing |
|
Storage Temperature |
-40°C to +75°C |
Certification Approvals and Standards
|
Cable Flammability rating |
UL 94-V1 EN 13823 |
|
Water Ingress Protection Ratio/ Standard |
IP 65 |
|
Impact resistance |
IK 08 |
|
Salt Spray |
MIL-STD 810F/ASTM B117 |
|
Product Safety |
Complies with UL, CE, EN, CSA and IEC standards |
