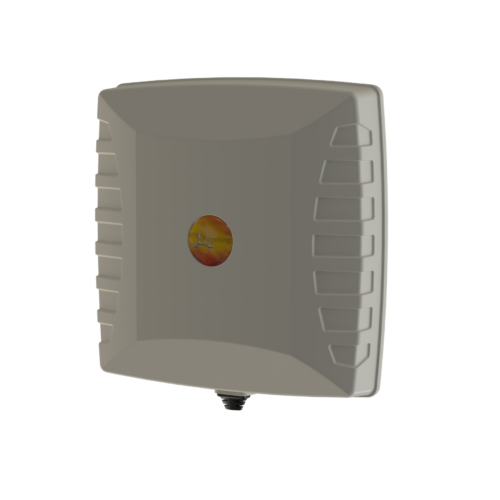

A-PATCH-0025 (PATCH-25)
RFID/CELLULAR CIRCULAR POLARISED DIRECTIONAL OUTDOOR ANTENNA 860MHZ-960MHZ
EU ve ABD RFID frekanslarını destekler. Ürün montajı kolay ve suya dayanıklı muhafazadadır. PATCH-25 aynı zamanda kapalı alanlardaki GSM sinyalini iyileştirmek için de kullanılabilir. VSWR ve kazanç değerleri ile en uygun RFID anten çözümüdür.
- Maksimum 8.75 dBi
- Circularly polarized
- Geniş bant anten
- 4G/3G/2G uyumlu
- Darbe ve suya karşı korumalı muhafaza
- RFID elektriksel gerekliliklere uyumlu
|
Electrical Specifications |
|
|
Frequency Bands: |
860-960MHz |
|
Gain (Max): |
8.75dBi |
|
VSWR @ 860 - 935 MH: |
< 1.3:1 |
| VSWR @ 935 - 960 MH | < 1.7:1 |
|
Feed Power Handling: |
10W |
|
Input Impedance: |
50Ohm (nominal) |
|
Polarisation: |
|
|
Cable loss: |
0.85dB/m @900 MHz |
|
DC Short: |
Yes |
|
Mechanical Specifications |
|
|
Product Dimensions (L x W x D): |
250 mm x 250 mm x 40 mm |
|
Packaged Dimensions: |
335 mm x 250 mm x 95 mm |
|
Weight: |
0.57 kg |
|
Packaged Weight: |
0.83 kg |
|
Radome Material: |
ABS (Halogen Free) |
|
Radome Colour: |
Pantone - Cool Gray (1C)
|
| RAL - 7047 | |
|
Environmental Specifications |
|
|
Wind Survival: |
<160 km/h |
|
Temperature Range (Operating): |
-20°C / +70°C |
|
Environmental Conditions: |
Outdoor/Indoor |
|
Operating Relative Humidity: |
Up to 98% |
|
Storage Humidity: |
5% to 95% - non condensing |
|
Storage Temperature: |
-20°C / +70°C |
|
Certification Approvals and Standards |
|
|
Flammability rating: |
UL 94-V0 |
|
EN 13823 |
|
|
Water Ingress Protection Ratio/Standard: |
IP 65 (NEMA 4X) |
|
Impact resistance: |
IK 08 |
|
Salt Spray: |
MIL-STD 810F/ASTM B117 |
|
Product Safety: |
Complies with UL, CE, EN, CSA and IEC standards |
