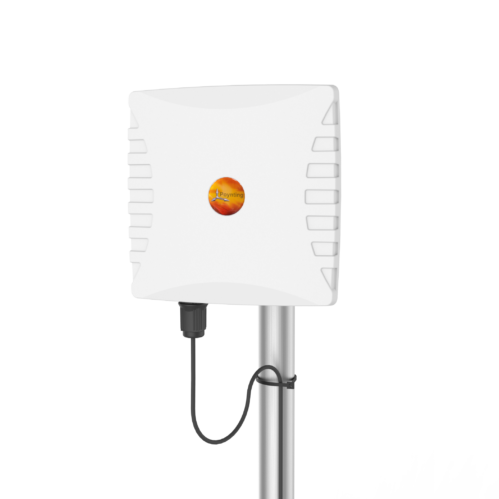

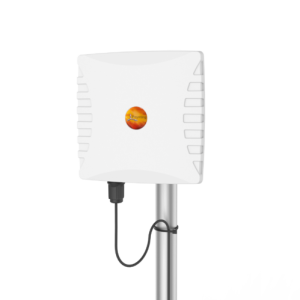

A-WLAN-0060-V1 (WLAN-60)
2400 – 2500, 3300 – 3800 & 5000 – 6000 MHZ WIRELESS ANTENNA
MAX GAIN: 18 DBI
- Dual band 2.4 and 5Ghz Wi-Fi
- Yüksek kazançlı Wi-Fi anten
- IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac kablosuz haberleşme standartlarına uygun
- Dayanıklı gövde tasarımı
- Çabuk ve kolay kurulum
- LTE 3.3GHz-3.8Ghz frekanslarında 15dBi değeri ile çalışabilme
Electrical Specifications
|
Frequency Band |
2400 - 2500MHz 3300 - 3800MHz 5000 - 6000MHz |
|
Gain (Max) |
18 dBi |
|
VSWR |
< 2.5:1 |
|
Feed power handling |
10 W |
|
Input impedance |
50 Ohm (nominal) |
|
Polarisation |
Linear Vertical |
|
Path to ground |
Yes |
|
Cable length |
N/A |
|
Cable Type |
N/A |
|
Connector |
SMA Female |
Mechanical Specifications
|
Product Dimensions (L x W x D) |
240 mm x 240 mm x 60 mm |
|
Packaged Dimensions |
260 mm x 280 mm x 80 mm |
|
Weight |
760.6 g |
|
Packaged Weight |
1334.8 g |
|
Radome Material |
ABS (Halogen Free) |
|
Radome Colour |
Cool Grey (1C) RAL 7047 |
Environmental Specifications
|
Wind Survival |
160 km/h |
|
Temperature Range (Operating) |
-40°C to +70°C |
|
Environmental Conditions |
Outdoor/Indoor |
|
Operating Relative Humidity |
Up to 98% |
|
Storage Humidity |
5% to 95% - non condensing |
|
Storage Temperature |
-40°C to +70°C |
Certification Approvals and Standards
|
Flammability rating |
UL 94-V0 |
|
Water Ingress Protection Ratio/Standard |
IP 65 (NEMA 4X) |
|
Impact resistance |
IK 08 |
|
Salt Spray |
MIL-STD 810F/ASTM B117 |
|
Product Safety |
Complies with UL, CE, EN, CSA and IEC standards |
