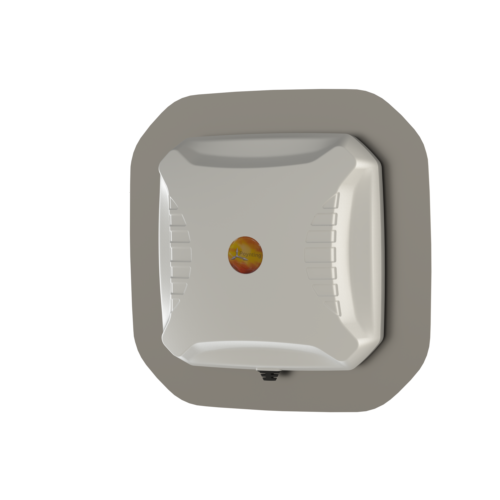

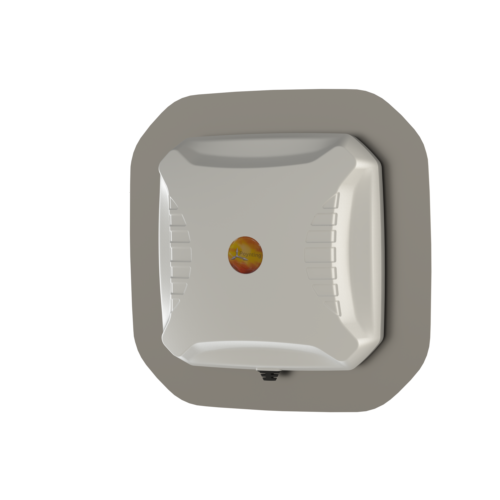

A-XPOL-0016 (XPOL-16)
3400 – 3800 MHZ HIGH GAIN XPOL CPE LTE/WIMAX ANTENNA
XPOL-13, 4G/WiMax/3.4-3.8GHz şebekeleri için ideal çözümdür. Duvar montajlı, çift kutuplu LTE uygulamaları için en uygun çözümdür. XPOL-13, sinyal güvenilirliğini artırır, kullanıcılar için daha yüksek sinyal çıkışı ve yüksek kaliteli bir bağlantı sağlar. 3.4-3.8GHz LTE/WiMax şebekelerini kullanan herhangi bir uygulama için idealdir.
- Maksimum 8 dBi
- Optimum LTE performansı için bir muhafaza içinde iki anten
- Yeni 450-470 MHz frekansları desteği
- 3G/2G uyumlu
- Darbe korumalı muhafaza
|
Electrical Specifications |
|
|
Frequency Bands: |
450-470MHz |
| 790-860MHz | |
| 1710-2170MHz | |
|
Gain (Max): |
8dBi |
|
VSWR: |
<2.5:1 |
|
Feed Power Handling: |
10W |
|
Input Impedance: |
50Ohm (nominal) |
|
Polarisation: |
+45°and-45° |
|
Port to Port Isolation: |
>15dBDC |
|
MIMO decorrelation: |
< 0.3 |
|
Cable loss: |
0.3dB/m @450 MHz |
|
0.35dB/m @ 900 MHz |
|
| 0.53dB/m @ 2000 MHz | |
|
DC Short: |
Yes |
|
Mechanical Specifications |
|
|
Product Dimensions (L x W x D): |
350 mm x 350 mm x 90 mm |
|
Packaged Dimensions: |
360 mm x 360 mm x 98 mm |
|
Weight: |
1.98 kg |
|
Packaged Weight: |
2.38 kg |
|
Radome Material: |
ABS (Halogen Free) |
|
Radome Colour: |
Pantone - Cool Gray (1C) |
|
RAL - 7047 |
|
Environmental Specifications |
|
|
Wind Survival: |
<120 km/h |
|
Temperature Range (Operating): |
-40°C / +70°C |
|
Environmental Conditions: |
Outdoor/Indoor |
|
Operating Relative Humidity: |
Up to 98% |
|
Storage Humidity: |
5% to 95% - non condensing |
|
Storage Temperature: |
-40°C / +70°C |
|
Certification Approvals and Standards |
|
|
Flammability rating: |
UL 94-V0 |
|
EN 13823 |
|
|
Water Ingress Protection Ratio/Standard: |
IP 65 (NEMA 4X) |
|
Impact resistance: |
IK 08 |
|
Salt Spray: |
MIL-STD 810F/ASTM B117 |
|
Product Safety: |
Complies with UL, CE, EN, CSA and IEC standards |
