ANT-LTE-ASM-02
GPRS/EDGE/UMTS/HSPA/LTE, 2 dBi, omni-directional, rubber duck antenna
Datasheet Link: ANT-LTE-ASM-02
Small size for compact fit
- Lightweight for portable deployment
- Tilt and swivel design
- Flexible installation
- SMA connector (male) supported
| • Antenna Characteristics | |
| Frequency | 800/900/1800/2100/2600 MHz |
| Antenna Type | Omni-directional |
| Typical Antenna Gain | 2 dBi |
| Connector | SMA (male) |
| Impedance | 50 ohms |
| Polarization | Linear, vertical |
| HPBW/horizontal | 360° |
| V.S.W.R. | < 3 |
| • Physical Characteristics | |
| Weight | 26 g |

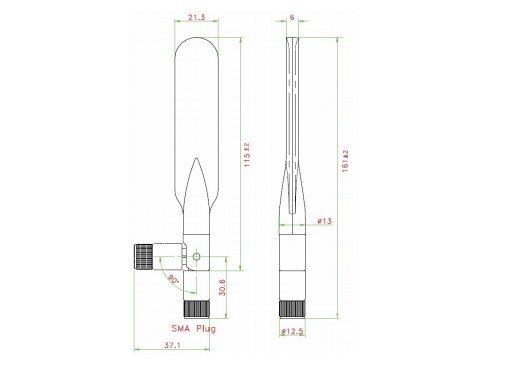

| Dimensions | Length=161 mm |
| Radome Color | Black |
| Radome Material | Plastic |
| Installation | Straight mount |
| • Environmental Limits | |
| Operating Temperature | -22 to 65°C (-4 to 149°F) |
| Storage Temperature | -30 to 70°C (-22 to 158°F) |
| Ambient Relative Humidity | 5 to 95% (30°C, non-condensing) |
| • Warranty | |
| Warranty Period | 1 year |
