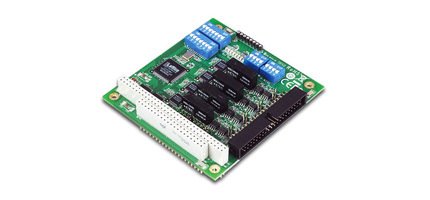

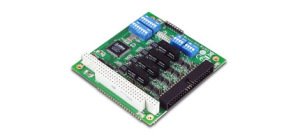

CA-134I
4-port RS-422/485 PC/104 modules with 2 KV optical isolation protection
CA-134I PC/104 modülleri, yüksek performanslı 4 adet RS-422/485 portuna sahip çok noktalı seri iletişim çözümleridir. İsteğe bağlı olarak DB9 ve DB25 bağlantı kabloları seri aygıtlara bağlanmak için kullanılabilir. CA-134'lerin çok yönlü sürücü desteği, modülleri farklı uygulamalar için uygun hale getirir.
- 921.6 kbps maximum baudrate for super fast data transmission
- On-chip S/W flow control
- IRQ settings, I/O settings, and serial interface are jumper and DIP switch selectable
- Onboard Tx and Rx LED indicators for each port
- Windows CE 5.0/6.0 and Windows XP embedded operating systems supported
- Wide temperature model available for -40 to 85°C environments
ÜRÜN SİPARİŞ KODLARI :
|
CA-134I |
PC/104 bus, 4-port RS-422/485 module with 2 KV optical isolation, 0 to 55°C operating temperature |
|
PC/104 bus, 4-port RS-422/485 module with 2 KV optical isolation, -40 to 85°C operating temperature |
| • Hardware | |
| Comm. Controller | 16C550C or compatible x 4 |
| Bus | PC/104 bus |
| Connector | 40-pin box header |
| DIP Switches | I/O base address, interrupt vector, serial interface |
| • Serial Interface | |
| Number of Ports | 4 |
| Serial Standards | RS-422/485 |
| Max. No. of Boards per PC | 8 |
| • Serial Line Protection | |
| Electrical Isolation | 2 kV |
| • Performance | |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| IRQ | 3, 4, 5, 6, 7, 9, 10, 11, 12, 15 (shared for all ports) |
| FIFO | 64 bytes |
| • Serial Signals | |
| RS-422 | TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-485-4w | TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-485-2w | Data+(B), Data-(A), GND |
| • Operating Systems | |
| Windows | Windows 95/98/ME/NT, Windows 2000/XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016 (x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | QNX 4, QNX 6 |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x |
| Note | Please refer to Moxa’s website for the latest driver support information. |
| • Physical Characteristics | |
| Dimensions | 90 x 96 mm (3.54 x 3.78 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| EMC | EN 55022/24, IEC 61000-6-2/6-4 |
| EMI | FCC Part 15 Subpart B Class A |
| EMS | IEC 61000-4-2 ESD: Contact 4kV; Air: 8kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
| Green Product | RoHS, CRoHS, WEEE |
| • MTBF (mean time between failures) | |
| Time | 339,822 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Power Requirements | |
| Power Consumption | 220 mA @ 5 VDC |
| • Warranty | |
| Warranty Period | 5 years |
