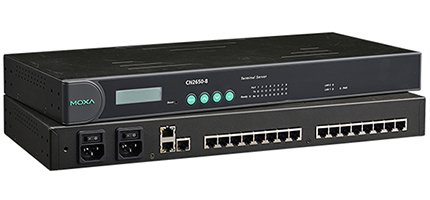

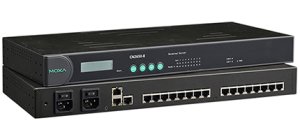

CN2650-16-2AC-T
8 and 16-port RS-232/422/485 terminal servers with dual-LAN redundancy
Yedeklilik, endüstriyel ağlar için önemli bir konudur ve ekipman veya yazılım arızaları meydana geldiğinde alternatif ağ yolları sağlamak için çeşitli çözüm türleri geliştirilmiştir. Yedekli donanım kullanmak için "Watchdog” donanımı kurulmuş ve "Token-Switching" anahtarlama yazılım mekanizması uygulanmıştır. CN2600 terminal sunucusu, uygulamalarınızın kesintisiz çalışmasını sağlayan "Yedekli COM” modunu uygulamak için yerleşik Çift LAN bağlantı noktalarını kullanır.
- LCD panel for easy IP address configuration (excluding wide temperature range models)
- Dual-LAN cards with two independent MAC addresses and IP addresses
- Redundant COM function available when both LANs are active
- Dual-host redundancy can be used to add a backup PC to your system
- Dual-AC-power inputs (for AC models only)
- Real COM/TTY drivers for Windows and Linux
- Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
ÜRÜN SİPARİŞ KODLARI :
| Model | Açıklama |
|---|---|
| CN2610-8 | Dual-LAN terminal server with 8 RS-232 ports |
| CN2610-8-2AC | Dual-LAN, dual-AC-power terminal server with 8 RS-232 ports |
| CN2610-16 | Dual-LAN terminal server with 16 RS-232 ports |
| CN2610-16-2AC | Dual-LAN, dual-AC-power terminal server with 16 RS-232 ports |
| CN2650-8 | Dual-LAN terminal server with 8 RS-232/422/485 ports |
| CN2650-8-2AC | Dual-LAN, dual-AC-power terminal server with 8 RS-232/422/485 ports |
| CN2650-8-2AC-T | Dual-LAN, dual-AC-power terminal server with 8 RS-232/422/485 ports, -40 to 75°C operating temperature |
| CN2650-16 | Dual-LAN terminal server with 16 RS-232/422/485 ports |
| CN2650-16-2AC | Dual-LAN, dual-AC-power terminal server with 16 RS-232/422/485 ports |
| CN2650-16-2AC-T | Dual-LAN, dual-AC-power terminal server with 16 RS-232/422/485 ports, -40 to 75°C operating temperature |
| CN2650I-8 | Dual-LAN terminal server with 8 RS-232/422/485 ports and 2 KV optical isolation |
| CN2650I-8-2AC | Dual-LAN, dual-AC-power terminal server with 8 RS-232/422/485 ports and 2 KV optical isolation |
| CN2650I-8-HV-T | Dual-LAN terminal server with 8 RS-232/422/485 ports and 2 kV optical isolation, 88 to 300 VDC power input, -40 to 85°C operating temperature |
| CN2650I-16 | Dual-LAN terminal server with 16 RS-232/422/485 ports and 2 KV optical isolation |
| CN2650I-16-2AC | Dual-LAN, dual-AC-power terminal server with 16 RS-232/422/485 ports and 2 KV optical isolation |
| CN2650I-16-HV-T | Dual-LAN terminal server with 16 RS-232/422/485 ports and 2 kV optical isolation, 88 to 300 VDC power input, -40 to 85°C operating temperature |
| • Ethernet Interface | |
| Number of Ports | 2 (2 IPs) |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation | 1.5 kV built-in |
| • Serial Interface | |
| Number of Ports | 8 or 16 |
| Serial Standards | CN2610: RS-232 CN2650/2650I: RS-232/422/485 |
| Connector | CN2610/2650: 8-pin RJ45 CN2650I: DB9 male |
| Serial Line Protection | 2 kV optical isolation (CN2650I) |
| RS-485 Data Direction Control | ADDC® (Automatic Data Direction Control) |
| Console Port | Dedicated RS-232 console port on rear panel (8-pin RJ45) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, DTR/DSR, XON/XOFF |
| Baudrate | 50 bps to 921.6 kbps |
| Pull High/Low Resistor for RS-485 | 1 kΩ, 150 kΩ |
| Terminator for RS-485 | 120 Ω |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Network Protocols | ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP, HTTP, SMTP, ARP, PPPoE, DDNS |
| Security Protocols | RADIUS, HTTPS, SSH, PAP, CHAP |
| Configuration Options | Web Console, Serial Console, Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x, 4.x |
| Android API | Android 3.1.x and later |
| Management | SNMP MIB-II |
| IP Routing | Static, RIP-I, RIP-II |
| • Operation Modes | |
| Standard | Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP, DRDAS, Redundant COM, Disabled |
| • Applications | |
| Terminal Sessions | 8 sessions per port |
| • Physical Characteristics | |
| Housing | Metal |
| Weight | CN2610-8-2AC: 2,560 g (5.64 lb) CN2610-16-2AC: 2,640 g (5.82 lb) CN2650-8: 2,410 g (5.31 lb) CN2650-16: 2,460 g (5.42 lb) CN2650-8-2AC: 2,560 g (5.64 lb) CN2650-16-2AC: 2,640 g (5.82 lb) CN2650I-8: 3,666 g (8.08 lb) CN2650I-16: 3,776 g (8.32 lb) CN |
| Dimensions | Without ears: 440 x 198 x 45.5 mm (17.32 x 7.80 x 1.77 in) With ears: 480 x 198 x 45.5 mm (18.9 x 7.80 x 1.77 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | Standard Models: -40 to 75°C (-40 to 167°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | AC Models: 100 to 240 VAC, 47 to 63 Hz DC Models: 110 VDC (88 to 300 VDC) |
| Input Current | CN2600 AC models: 130 mA @ 110 VAC, 47 to 63 Hz CN2650I HV models: 200 mA @ 88 VDC |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | AC models: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m |
| Freefall | IEC-68-2-34, IEC-68-2-32 |
| Vibration | IEC-68-2-6 |
| Green Product | RoHS, CRoHS, WEEE |
| • Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| • MTBF (mean time between failures) | |
| Time | CN2610-8: 831,925 hrs CN2610-16: 639,332 hrs CN2610-8-2AC: 773,268 hrs CN2610-16-2AC: 604,346 hrs CN2650-8 series: 657,123 hrs CN2650-16 series: 457,175 hrs CN2650-8-2AC: 773,268 hrs CN2650-16-2AC: 442,699 hrs CN2650I-8 series: 190,562 hrs CN2650I-16 |
| Standard | Telcordia (Bellcore) Standard TR/SR |
| • Warranty | |
| Warranty Period | 5 years |
