CP-138U-I-T

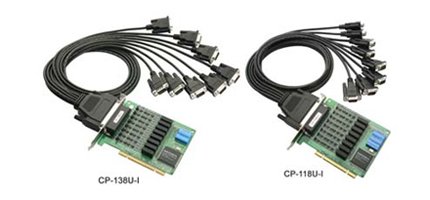

8-port RS-422/485 Universal PCI serial boards (with optional 2kV isolation)
CP-118U-I ve CP-138U-I, uzun mesafeli, çok noktalı, PC tabanlı veri toplama uygulamaları için tasarlanmış 8 portlu seri kartlardır. RS-485 iletişimi, hat sürücüsünü etkinleştirmek ve devre dışı bırakmak için hassas zamanlama kontrolü gerektirir ve CP-118U-I ve CP-138U-I kartlarına güç veren Moxa Turbo Seri Motor ™ çipi, çip üzerinde ADDC® ile birlikte gelir. CP-118U-I'nin 8 RS-232/422/485 portu ve CP-138U-I'nin 8 RS-422/485 portu 921,6 kbps'ye varan veri hızlarına ulaşabilir.
- Over 700 kbps data throughput for top performance
- 921.6 kbps maximum baudrate for super fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Compatible with 3.3/5 V PCI and PCI-X
- Drivers provided for a broad selection of operating systems, including the latest Windows and Linux
- Easy maintenance with on-board LED display, and management software
- Wide temperature model available for -40 to 85°C environments
ÜRÜN SİPARİŞ KODLARI :
|
8 Port UPCI Board, RS-232/422/485 |
|
|
8 Port UPCI Board, RS-232/422/485, Wide Temperature |
|
|
8 Port UPCI Board, RS-232/422/485, w/ Isolation |
|
|
8 Port UPCI Board, RS-232/422/485, w/ Isolation, Wide Temperature |
|
|
8 Port UPCI Board, RS-422/485 |
|
|
8 Port UPCI Board, RS-422/485, Wide Temperature |
|
|
8 Port UPCI Board, RS-422/485, w/ Isolation |
|
|
8 Port UPCI Board, RS-422/485, w/ Isolation, Wide Temperature |
OPSİYONEL AKSESUARLAR :
|
8-port male DB9 connection cable |
|
|
8-port male DB25 connection cable |
| • Hardware | |
| Comm. Controller | MU860 (16C550C compatible) |
| Bus | 32-bit Universal PCI |
| Connector | DB78 female |
| • Serial Interface | |
| Number of Ports | 8 |
| Serial Standards | CP-118U-I: RS-232/422/485 CP-138U-I: RS-422/485 |
| Max. No. of Boards per PC | 8 |
| • Serial Line Protection | |
| Electrical Isolation | 2 kV |
| • Performance | |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, RTS Toggle (RS-232 only) |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-485-4w | TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-485-2w | Data+(B), Data-(A), GND |
| • Physical Characteristics | |
| Dimensions | 105 x 133 mm (4.13 x 5.23 in) |
| • Driver Support | |
| Windows | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows Server 2008 R2/2012/2012 R2/2016 (x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux | Linux 2.4.x, 2.6.x, 3.x |
| Unix-like Systems | QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD |
| Note | Please refer to Moxa’s website for the latest driver support information. |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| EMC | EN 55022/24 |
| EMI | CISPR 22, FCC Part 15B Class B |
| EMS | CP-118U-I: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m CP-138U-I: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power 1 kV |
| • MTBF (mean time between failures) | |
| Time | CP-118U-I: 350,975 hrs CP-138U-I: 370,390 hrs |
| Standard | Telcordia (Bellcore) SR-332 |
| • Power Requirements | |
| Input Current | CP-118U-I: 860 mA @ 5 VDC CP-138U-I: 330 mA @ 5 VDC |
| • Warranty | |
| Warranty Period | 5 years |
