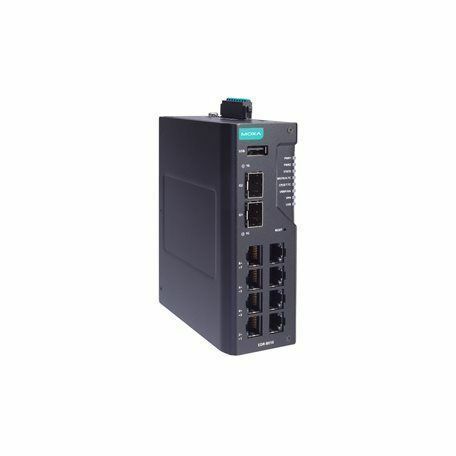

EDR-8010-VPN-2GSFP
8 FE copper and 2 GbE SFP multiport industrial secure router with firewall/NAT/VPN, 12/24/48 VDC input voltage, -10 to 60°C operating temperature
EDR-8010 Serisi, güvenlik duvarı/NAT/VPN ve yönetilebilir Layer2 switch işlevlerine sahip, endüstriyel multi-port secure router serisidir. Bu cihazlar, kritik uzaktan kontrol veya izleme ağlarında Ethernet tabanlı güvenlik uygulamaları için tasarlanmıştır. Trafo merkezleri, su pompalama istasyonları, arıtma sistemleri, petrol ve gaz uygulamalarında, fabrika otomasyonundaki PLC/SCADA sistemlerinde elektronik güvenlik sağlar.
Güvenlik duvarı, güvenilir bölgeler arasındaki ağ trafiğini kontrol etmek için "policy rules" kullanırken, NAT özelliği dahili ağı dış ana bilgisayarların yetkisiz erişimine karşı korur. VPN işlevi, genel internet'ten özel ağa güvenli iletişim tünelleri sağlar.
Kurulum Sihirbazı, WAN, LAN ve köprü portlarını yalnızca dört adımda kurmak için kolay bir yol sunar. IP adresleri, alt ağlar, ağ hizmetleri ve kullanıcı tanımlı hizmetler için güvenlik duvarı filtrelemesi basitçe yapılandırılıp yönetilebilir.
Sağlam donanımı, -40 ila 75°C arasında çalışan geniş sıcaklık aralığı ile zorlu endüstriyel ortamlar için ideal bir çözüm sunar. Ayrıca kapsamlı Layer2 ve Layer3 yedekleme mekanizmaları ile ağınızın sürekli bağlı kalmasını sağlar.
- Endüstriyel Sınıf İzinsiz Girişi Önleme/Algılama Sistemi (IPS/IDS)
- 8 FE + 2 Gigabit port all-in-one (firewall/NAT/VPN/router/switch)
- MXsecurity yönetim yazılımıyla OT güvenliği
- VPN ile güvenli uzaktan erişim tüneli
- DPI teknolojisi
- NAT ile kolay ağ kurulumu
- RSTP ve Turbo Ring protokolleri
- IEC 62443-4-2 endüstriyel siber güvenlik standardı uyumu
- -40 ila 75°C çalışma sıcaklığı aralığı (-T modeli)
| Model | Açıklama |
|---|---|
| EDR-8010-2GSFP | 8 FE copper and 2 GbE SFP multiport industrial secure router with firewall/NAT, 12/24/48 VDC input voltage, -10 to 60°C operating temperature |
| EDR-8010-2GSFP-T | 8 FE copper and 2 GbE SFP multiport industrial secure router with firewall/NAT, 12/24/48 VDC input voltage, -40 to 75°C operating temperature |
| EDR-8010-VPN-2GSFP | 8 FE copper and 2 GbE SFP multiport industrial secure router with firewall/NAT/VPN, 12/24/48 VDC input voltage, -10 to 60°C operating temperature |
| EDR-8010-VPN-2GSFP-T | 8 FE copper and 2 GbE SFP multiport industrial secure router with firewall/NAT/VPN, 12/24/48 VDC input voltage, -40 to 75°C operating temperature |
| Çalışma Sıcaklığı | : | -10/+60C |
| 10/100BaseT(X) | : | 8 |
| 100BaseFX SFP | : | 2 |
Input/Output Interface
Alarm Contact Channels
Resistive load: 1 A @ 24 VDC
Buttons
Reset button
Digital Input Channels
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
8
1000BaseSFP Slots
2
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
Static Port Trunk
DMZ
User-configurable DMZ ports
Ethernet Software Features
Broadcast Forwarding
IP directed broadcast, broadcast forwarding
Management
Back Pressure Flow Control
DDNS
DHCP Server/Client
Web Console (HTTP/HTTPS)
LLDP
QoS/CoS/ToS
SNMPv1/v2c/v3
Telnet
TFTP
HTTPS
SSH
Redundancy Protocols
RSTP
STP
Turbo Ring v2
Routing Throughput
Max. 50K packets per second / 500 Mbps (based on RFC 2544)
Routing Table
Max. 4K routing rules
Concurrent Connections
Max. 120K (based on RFC 3511)
Connections Per Second
Max. Max. 6K (based on RFC 3511)
Routing Redundancy
VRRP
Security
Secure Boot
IPsec
L2TP (server)
RADIUS
Trust access control
Time Management
NTP Server/Client
SNTP
Unicast Routing
OSPF
RIPV1/V2
Static Route
Multicast Routing
Static Route
Filter
IGMP v1/v2/v3
Switch Properties
VLAN ID Range
VID 1 to 4094
IGMP Groups
256
Max. No. of VLANs
16
LED Interface
LED Indicators
PWR1, PWR2, STATE, MSTR/H.TC, CPLR/T.TC, VRRP/HA, VPN, USB
DoS and DDoS Protection
Technology
ARP-Flood
FIN Scan
ICMP-Death
NEWWithout-SYN Scan
NMAP-ID Scan
NMAP-Xmas Scan
Null Scan
SYN/FIN Scan
SYN/RST Scan
SYN-Flood
Xmas Scan
Firewall
Filter
DDoS
Ethernet protocols
ICMP
IP address
MAC address
Ports
Stateful Inspection
Router firewall
Transparent (bridge) firewall
Deep Packet Inspection
Modbus TCP
Modbus UDP
DNP3
IEC 60870-5-104
IEC 61850 MMS
EtherNet/IP
Omron FINS
Siemens S7 Comm.
Additional protocols will be supported through future firmware updates.
Intrusion Prevention System
Requires an additional license.
Throughput
Firewall:
Max. 50K packets per second / 500 Mbps (based on RFC 2544)
IPsec VPN
Authentication
MD5 and SHA (SHA-256)
RSA (key size: 1024-bit, 2048-bit)
X.509 v3 certificate
Concurrent VPN Tunnels
Max. 50 IPsec VPN tunnels
Encryption
DES
3DES
AES-128
AES-192
AES-256
Protocols
IPsec
L2TP (server)
PPTP (client)
Throughput
Conditions: AES-256, SHA-256
Max. 25K packets per second / 200 Mbps (based on RFC 2544)
NAT
Features
1-to-1
N-to-1
Port forwarding
NAT loopback
Real-Time Firewall / VPN Event Log
Event Type
Firewall event
VPN event
Media
Local storage
SNMP Trap
Syslog server
Serial Interface
Console Port
RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
Connector
USB Type-C
Power Parameters
Connection
Removable terminal block
Operating Voltage
9.6 to 60 VDC
Input Voltage
12/24/48 VDC, redundant dual inputs (DNV-certified for 24 VDC)
Input Current
0.53 A @ 12 VDC
0.26 A @ 24 VDC
0.14 A @ 48 VDC
Reverse Polarity Protection
Supported
Physical Characteristics
Housing
Metal
Dimensions
45 x 135 x 105 mm (1.77 x 5.31 x 4.13 in)
Weight
520 g (1.15 lb)
Installation
DIN-rail mounting (DNV-certified)
Wall mounting (with optional kit)
Environmental Limits
Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
All Models: DNV-certified for -25 to 70°C (-13 to 158°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
Safety
IEC 62368-1
UL 62368-1
EMC
EN 55032/35
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Railway
EN 50121-4
Traffic Control
NEMA TS2
Maritime
IEC 60945
DNV
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Power Substation
IEC 61850-3 Edition 2.0
IEEE 1613
Hazardous Locations
ATEX
Class I Division 2
IECEx
MTBF
Time
1,347,225 hrs
Standards
Telcordia (Bellcore), GB
