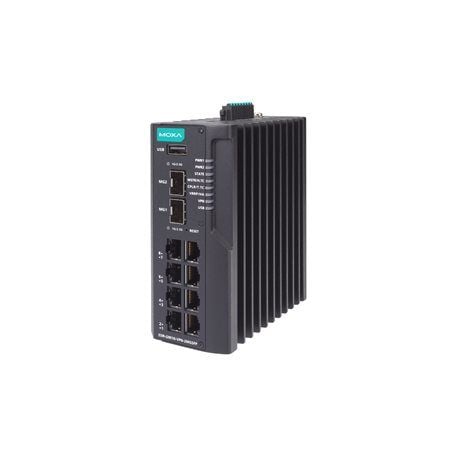

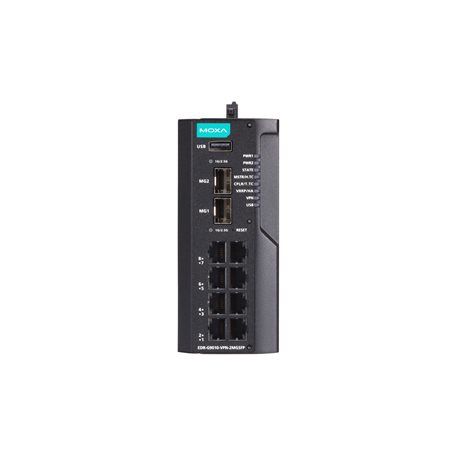

EDR-G9010-VPN-2MGSFP-HV-T
8 GbE + 2 GbE industrial secure router with Firewall/NAT/VPN, 120/220 VDC/VAC , -40 to 75°C
EDR-G9010 Serisi, güvenlik duvarı/NAT/VPN ve yönetilebilir Layer2 switch işlevlerine sahip, endüstriyel multi-port secure router serisidir. Bu cihazlar, kritik uzaktan kontrol veya izleme ağlarında Ethernet tabanlı güvenlik uygulamaları için tasarlanmıştır. Trafo merkezleri, su pompalama istasyonları, arıtma sistemleri, petrol ve gaz uygulamalarında, fabrika otomasyonundaki PLC/SCADA sistemlerinde elektronik güvenlik sağlar.
Güvenlik duvarı, güvenilir bölgeler arasındaki ağ trafiğini kontrol etmek için "policy rules" kullanırken, NAT özelliği dahili ağı dış ana bilgisayarların yetkisiz erişimine karşı korur. VPN işlevi ise genel internet'ten özel ağa erişirken güvenli iletişim tünelleri sağlar.
Kurulum Sihirbazı, WAN, LAN ve köprü portlarını sadece dört adımda kurmak için kolay bir yol sunar. Ayrıca IP adresleri, alt ağlar, ağ hizmetleri ve kullanıcı tanımlı hizmetler için güvenlik duvarı filtrelemesi basitçe yapılandırılıp yönetilebilir.
Sağlam donanımı, -40 ila 75°C arasında çalışan geniş sıcaklık aralığı ile zorlu endüstriyel ortamlar için ideal bir çözüm sunar. Kapsamlı Layer2 ve Layer3 yedekleme mekanizmaları ile ağınızın sürekli bağlı kalmasını sağlar.
- IEC 62443-4-1 ve IEC 62443-4-2 endüstriyel siber güvenlik standartları ile uyumlu
- 10 portlu Gigabit all-in-one (firewall/NAT/VPN/router/switch)
- IPS/IDS desteği
- MXsecurity yönetim yazılımı ile OT güvenliği
- VPN ile güvenli uzaktan erişim tüneli
- DPI teknolojisi
- NAT ile kolay ağ kurulumu
- RSTP ve Turbo Ring protokolleri
- Secure Boot
- -40 ila 75°C çalışma sıcaklığı aralığı (-T modeli)
| Model | Açıklama |
|---|---|
| EDR-G9010-VPN-2MGSFP | Industrial Secure Router Switch with 8 10/100/1000BaseT(X) ports, 2 1/2.5GbE SFP slots, Firewall/NAT/VPN, -10 to 60°C |
| EDR-G9010-VPN-2MGSFP-HV | 8 GbE + 2 GbE industrial secure router with Firewall/NAT/VPN, 120/220 VDC/VAC, -10 to 60°C |
| EDR-G9010-VPN-2MGSFP-HV-T | 8 GbE + 2 GbE industrial secure router with Firewall/NAT/VPN, 120/220 VDC/VAC , -40 to 75°C |
| EDR-G9010-VPN-2MGSFP-T | Industrial Secure Router Switch with 8 10/100/1000BaseT(X) ports, 2 1/2.5GbE SFP slots, Firewall/NAT/VPN, -40 to 75°C |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100/1000BaseT(X) | : | 8 |
| 1000Base SFP | : | 2 |
Input/Output Interface
Alarm Contact Channels
Resistive load: 1 A @ 24 VDC
Buttons
Reset button
Digital Input Channels
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Ethernet Interface
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector)
8
1000BaseSFP Slots
2
Standards
IEEE 802.1Q for VLAN Tagging
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
Static Port Trunk
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.1X for authentication
Ethernet Software Features
Ethernet Software Features
Broadcast Forwarding
IP directed broadcast, broadcast forwarding
Management
Back Pressure Flow Control
DDNS
DHCP Server/Client
Web Console (HTTP/HTTPS)
LLDP
QoS/CoS/ToS
SNMPv1/v2c/v3
Telnet
TFTP
HTTPS
SSH
Redundancy Protocols
RSTP
STP
Turbo Ring v2
Routing
Throughput: 350K packets per second (max. 1500 Mbps)
Routing Table
Max. 4K routing rules
Concurrent Connections
Max. 400K
Connections Per Second
Max. 20K
Routing Redundancy
VRRP
Security
Security
Secure Boot
IPsec
L2TP (server)
RADIUS
Trust access control
Time Management
NTP Server/Client
SNTP
Unicast Routing
OSPF
RIPV1/V2
Static Route
Multicast Routing
Static Route
Filter
IGMP v1/v2/v3
Switch Properties
Switch Properties
VLAN ID Range
VID 1 to 4094
IGMP Groups
256
Max. No. of VLANs
16
LED Interface
LED Interface
LED Indicators
PWR1, PWR2, STATE, MSTR/H.TC, CPLR/T.TC, VRRP/HA, VPN, USB
DoS and DDoS Protection
DoS and DDoS Protection
Technology
ARP-Flood
FIN Scan
ICMP-Death
NEWWithout-SYN Scan
NMAP-ID Scan
NMAP-Xmas Scan
Null Scan
SYN/FIN Scan
SYN/RST Scan
SYN-Flood
Xmas Scan
Firewall
Firewall
Filter
DDoS
Ethernet protocols
ICMP
IP address
MAC address
Ports
Stateful Inspection
Router firewall
Transparent (bridge) firewall
Deep Packet Inspection
DNP3
EtherNet/IP
IEC 60870-5-104
IEC 61850 MMS
Modbus TCP
Modbus UDP
Omron FINS
Siemens S7 Comm.
Additional protocols will be supported through future firmware updates.
Intrusion Prevention System
Requires an additional license.
Throughput
Max. 350K packets per second (max. 1500 Mbps)
IPsec VPN
IPsec VPN
Authentication
MD5 and SHA (SHA-256)
RSA (key size: 1024-bit, 2048-bit)
X.509 v3 certificate
Concurrent VPN Tunnels
Max. 250 IPsec VPN tunnels
Encryption
DES
3DES
AES-128
AES-192
AES-256
Protocols
IPsec
L2TP (server)
PPTP (client)
Throughput
Max. 300 Mbps (Conditions: AES-256, SHA-256)
NAT
NAT
Features
1-to-1
N-to-1
NAT loopback
Port forwarding
Real-Time Firewall / VPN Event Log
Real-Time Firewall / VPN Event Log
Event Type
Firewall event
VPN event
Media
Local storage
SNMP Trap
Syslog server
Serial Interface
Serial Interface
Console Port
RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
Connector
USB Type-C
Power Parameters
Power Parameters
Connection
Removable terminal block
Input Voltage
EDR-G9010-VPN-2MGSFP(-T) models:
12/24/48 VDC (DNV-certified for 24 VDC)
EDR-G9010-VPN-2MGSFP-HV(-T) models:
120/240 VDC/VAC
Operating Voltage
non-HV(-T) models:
9.6 to 60 VDC
-HV(-T) models:
88 to 300 VDC, 90 to 264 VAC
Input Current
EDR-G9010-VPN-2MGSFP(-T) models:
1.51 A @ 12 VDC
0.70 A @ 24 VDC
0.35 A @ 48 VDC
EDR-G9010-VPN-2MGSFP-HV(-T) models:
0.28 A @ 120 VAC
0.18 A @ 240 VAC
0.15 A @ 120 VDC
0.08 A @ 240 VDC
Reverse Polarity Protection
Supported
Physical Characteristics
Physical Characteristics
Housing
Metal
Dimensions
EDR-G9010-VPN-2MGSFP(-T) models:
58 x 135 x 105 mm (2.28 x 5.31 x 4.13 in)
EDR-G9010-VPN-2MGSFP-HV(-T) models:
64 x 135 x 105 mm (2.52 x 5.31 x 4.13 in)
Weight
EDR-G9010-VPN-2MGSFP(-T) models:
1030 g (2.27 lb)
EDR-G9010-VPN-2MGSFP-HV(-T) models:
1150 g (2.54 lb)
Installation
DIN-rail mounting (DNV-certified)
Wall mounting (with optional kit)
Environmental Limits
Environmental Limits
Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
EDR-G9010-VPN-2MGSFP(-T) models: DNV-certified for -25 to 70°C (-13 to 158°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
Standards and Certifications
Safety
IEC 62368-1
UL 62368-1
IEC 60950-1
UL 60950-1
EMC
EN 55032/35
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Industrial Cybersecurity
IEC 62443-4-1
IEC 62443-4-2
Railway
EDR-G9010-VPN-2MGSFP(-T) models: EN 50121-4
Traffic Control
EDR-G9010-VPN-2MGSFP(-T) models: NEMA TS2
Maritime
EDR-G9010-VPN-2MGSFP(-T) models: IEC 60945, DNV
Power Substation
IEEE 1613
IEC 61850-3 Edition 2.0
Hazardous Locations
EDR-G9010-VPN-2MGSFP(-T) models: ATEX, Class I Division 2
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
MTBF
MTBF
Time
EDR-G9010-VPN-2MGSFP(-T) models:
1,080,807 hrs
EDR-G9010-VPN-2MGSFP-HV(-T) models:
509,714 hrs
Standards
Telcordia (Bellcore), GB
