Datasheet

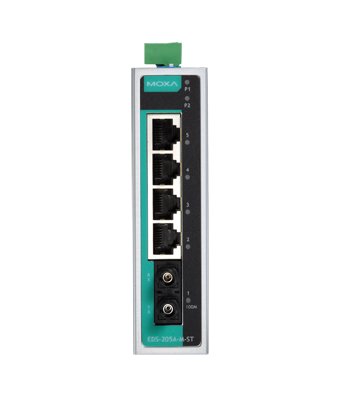

EDS-205A-S-SC-T
5-port unmanaged Ethernet switch
- 10/100BaseT(X) (RJ45 konnektör), 100BaseFX (multi/single-mode, SC veya ST konnektör)
- Yedekli çift 12/24/48 VDC veya 18 ila 30 VAC güç girişleri
- IP30 alüminyum gövde
- Sağlam donanımı zorlu ortamlar için uygundur (Class 1 Div. 2 / ATEX Zone 2, Ulaşım: NEMA TS2 / EN 50121-4 / e-Mark, Denizcilik: DNV / GL / LR / ABS / NK sertifikaları)
- -40 ila 75°C çalışma sıcaklığı aralığı (T modelleri)
ÜRÜN SİPARİŞ KODLARI :
| Model | Açıklama |
|---|---|
| EDS-205A | Unmanaged Ethernet switch with 5 10/100BaseT(X) ports, -10 to 60°C operating temperature |
| EDS-205A-T | Unmanaged Ethernet switch with 5 10/100BaseT(X) ports, -40 to 75°C operating temperature |
| EDS-205A-M-SC | Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with SC connector, -10 to 60°C operating temperature |
| EDS-205A-M-SC-T | Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with SC connector, -40 to 75°C operating temperature |
| EDS-205A-M-ST | Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with ST connector, -10 to 60°C operating temperature |
| EDS-205A-M-ST-T | Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with ST connector, -40 to 75°C operating temperature |
| EDS-205A-S-SC | Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX single-mode port with SC connector, -10 to 60°C operating temperature |
| EDS-205A-S-SC-T | Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX single-mode port with SC connector, -40 to 75°C operating temperature |
| Toplam Port Sayısı | : | 5 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 4 |
| 100BaseFX SFP | : | 1 |
