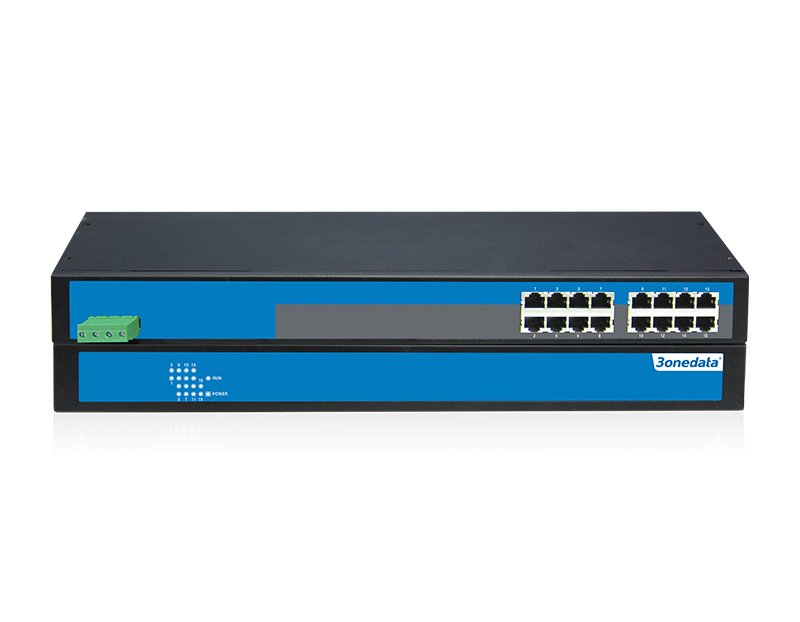

ES1016
16*10/100Base-TX (RJ45), single power supply: 110-220VAC
- Support 16 100M copper ports
- Input power supply: 100-240VAC
- Support 0~70℃ wide operating temperature range
ES1016 Serisi, 16 port 100M Layer 2 yönetilemez endüstriyel ethernet anahtarlarıdır. 16 adet 100M bakır port içerir.
Donanım, fansız, düşük güç tüketimli, geniş çalışma sıcaklık aralığına sahip ve EMC standartlarını karşılayan endüstriyel testleri geçmiştir. Demiryolu geçişi, akıllı şehir, güvenli şehir, enerji, havacılık, askeri proje ve diğer endüstriyel alanlarda yaygın olarak kullanılır.
| Toplam Port Sayısı | : | 24 |
| Çalışma Sıcaklığı | : | 0/+70C |
| 10/100BaseT(X) | : | 16 |
|
Standard &Protocol
|
IEEE 802.3 for 10Base-TX IEEE 802.3u for 100Base-TX
|
| Interface |
Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 2.5M Backplane bandwidth: 12.8G Switch time delay: < 15μs
|
|
Power Requirement |
100-240VAC/DC, 4-pin 7.62mm pitch terminal blocks
|
|
Power Consumption |
No-load: 4.2W@220VAC Full-load: 6.7W@220VAC |
|
Environmental Limit |
Operating temperature: 0~70℃ Storage temperature: -40~75℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP30 protection, metal Installation: 19 inches rack mounting Dimension (W x H x D): 441.6mm×44.6mm×207.9mm
|
|
Industrial Standard |
IEC61000-4-2 (ESD)，Level 4 Air discharge: ±8kV Contact discharge: ±8kV IEC61000-4-4 (EFT), Level 4 Power supply: ±4kV Ethernet interface: ±2kV IEC61000-4-5 (Surge), Level 4 Power supply: common mode ±4kV, differential mode ±2kV Ethernet interface: ±4kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
