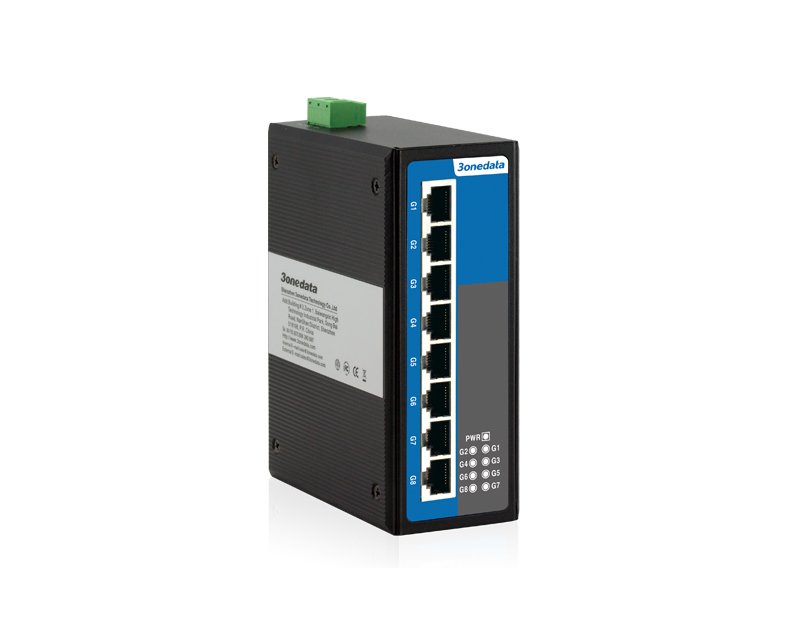

ES208G
8×10/100/1000Base-T(X) (RJ45), single power supply: 12～48VDC
- Support 8 Gigabit copper ports
- Input voltage: 12~48VDC, nonpolarity, reverse polarity protection
- Support -25~70℃ wide operating temperature range
IES208G, 8 port full Gigabit Layer 2 yönetilemez endüstriyel ethernet anahtarlarıdır. Donanım, fansız, düşük güç tüketimi, geniş çalışma sıcaklık aralığında ve EMC özellikleri ile endüstriyel standart testlerini geçmiştir. Demiryolu geçişi, akıllı şehir, güvenli şehir, enerji, havacılık, askeri proje ve diğer endüstriyel alanlarda yaygın olarak kullanılabilir.
| Toplam Port Sayısı | : | 8 |
| Çalışma Sıcaklığı | : | -25/+70C |
| 10/100/1000BaseT(X) | : | 8 |
|
Standard &Protocol
|
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T
|
| Interface |
Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
|
|
LED Indicator |
Power Supply Indicator, Port Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 2.5Mbit Backplane bandwidth: 20G Switch time delay: < 10μs
|
|
Power Requirement |
12~48VDC, 3-pin 7.62mm pitch terminal blocks Nonpolarity, reverse polarity protection
|
|
Power Consumption |
No-load: 0.82W@24VDC Full-load: 3.65W@24VDC |
|
Environmental Limit |
Operating temperature range: -25~70℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 53mm×110mm×138mm Weight: 616g
|
|
Industrial Standard |
IEC 61000-4-2 (ESD) ，Level 2 Air discharge: ±4kV Contact discharge: ±4kV IEC 61000-4-5 (Surge), Level 2 Power supply: common mode ±1kV, differential mode ±0.5kV Ethernet port: ±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
