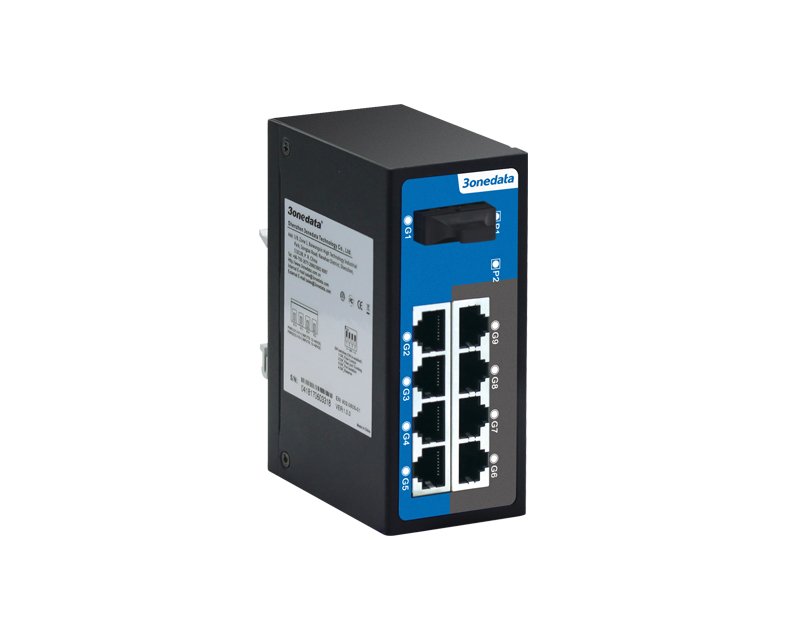

ES209G-1GF (MM,SC)
8*10/100/1000Base-TX (RJ45) + 1*1000Base-FX (Multi-Mode, SC, dual fibers, 2KM), dual power supply: 12~48VDC
- Support 1 Gigabit fiber port, 8 Gigabit copper ports
- Input voltage: 12~48VDC, nonpolarity, reverse polarity protection
- Support 0~55℃ wide operating temperature range
IES208G, 9 port full Gigabit Layer 2 yönetilemez endüstriyel ethernet anahtarlarıdır. Seri, 8 adet gigabit bakır port ve 1 adet gigabit fiber port içerir.
Donanım, fansız, düşük güç tüketimi, geniş çalışma sıcaklık aralığında ve EMC özellikleri ile endüstriyel standart testlerini geçmiştir. Demiryolu geçişi, akıllı şehir, güvenli şehir, enerji, havacılık, askeri proje ve diğer endüstriyel alanlarda yaygın olarak kullanılabilir.
| ÜRÜN | AÇIKLAMA |
|---|---|
| ES209G-1GF (MM,SC) | 8*10/100/1000Base-TX (RJ45)+1*1000Base-FX (SC, multi-mode, dual fibers, 2KM), dual power supply:12~48VDC |
| ES209G-1GF (MM,ST) | 8*10/100/1000Base-TX (RJ45)+1*1000Base-FX (ST, multi-mode, dual fibers, 2KM), dual power supply:12~48VDC |
| ES209G-1GF (SM,SC) | 8*10/100/1000Base-TX (RJ45)+1*1000Base-FX (SC, single-mode, dual fibers, 20KM), dual power supply:12~48VDC |
| ES209G-1GF (SM,ST) | 8*10/100/1000Base-TX (RJ45)+1*1000Base-FX (ST, single-mode, dual fibers, 20KM), dual power supply:12~48VDC |
| Toplam Port Sayısı | : | 8 |
| Çalışma Sıcaklığı | : | 0/+55C |
| 10/100/1000BaseT(X) | : | 8 |
| 100BaseFX SFP | : | 1 |
|
Standard &Protocol
|
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow Control
|
| Interface |
Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 1000Base-FX, SC/ST/FC optional
|
|
LED Indicator |
Power Supply Indicator, Port Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 1Mbit Backplane bandwidth: 20G Switch time delay: < 10μs
|
|
Power Requirement |
12~48VDC, 4-pin 7.62mm pitch terminal blocks Dual power supply redundancy, reverse polarity protection
|
|
Power Consumption |
No-load: 3.9W@24VDC Full-load: 8.1W@24VDC |
|
Environmental Limit |
Operating temperature: 0~55℃ Storage temperature: -10~65℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP30 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 50mm×115mm×80mm Weight: 450g
|
|
Industrial Standard |
IEC 61000-4-2 (ESD), Level 1 Air discharge: ±2kV Contact discharge: ±2kV IEC 61000-4-5 (Surge), Level 2 Power supply: common mode ±1kV, differential mode ±0.5kV Ethernet port: ±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
