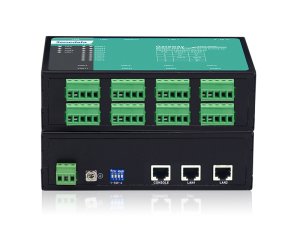

GW1118-8DI(RS-485)
Ethernet Modbus Gateway
8*RS-422/485 + 2*10/100Base-T(X) (çift IP ve çift MAC desteği), tek güç kaynağı 12-48VDC, duvar montajı
- 8 adet RS-232, RS-422/485 veya 3IN1 (RS-232/422/485) seri port ve 2 adet 10/100Base-T(X) Ethernet portu
- Modbus RTU/ASCII ile Modbus TCP protokolleri arası çift yönlü çevrim
- RTU Master, RTU Slave, ASCII Master, ASCII Slave çalışma modları
- Sunucu ve istemci cihazlar arasında esnek erişim için "Virtual & Real ID mapping"
- Çalışma sıcaklığı: –40~75℃, (GW1108-8DI(RS-485) için –40~70℃)
GW1108 Serisi Modbus gateway ürünleri, Modbus RTU/ASCII ve Modbus TCP entegrasyonu için tasarlanmıştır. Bu seri, RS-232, RS-422/485 ve 3IN1 (RS-232/422/485) tiplerinden oluşur.
TCP, UDP, TELNET, ARP, ICMP, HTTP, DNS ve DHCP gibi protokolleri destekler. RTU Master modunda 32 TCP Slave, RTU Slave modunda ise 16 TCP Master bağlantısını destekler. WEB ve TELNET arayüzleri ile kolay yönetim sağlar.
Cihaz üzerindeki DIP SWITCH ile fabrika ayarlarına kolayca dönebilirsiniz. Fansız tasarım, düşük güç tüketimi, geniş çalışma sıcaklığı ve EMC uygunluğu ile PLC kontrolü, bina otomasyonu, sağlık otomasyonu, ölçüm cihazları ve çevre izleme sistemlerinde yaygın kullanılır.
| Model | Açıklama |
|---|---|
| GW1118-8DI(RS-485) | 8*RS-422/485 + 2*10/100Base-T(X) (dual IPs and MACs), single power supply 12-48VDC, wall-mounting |

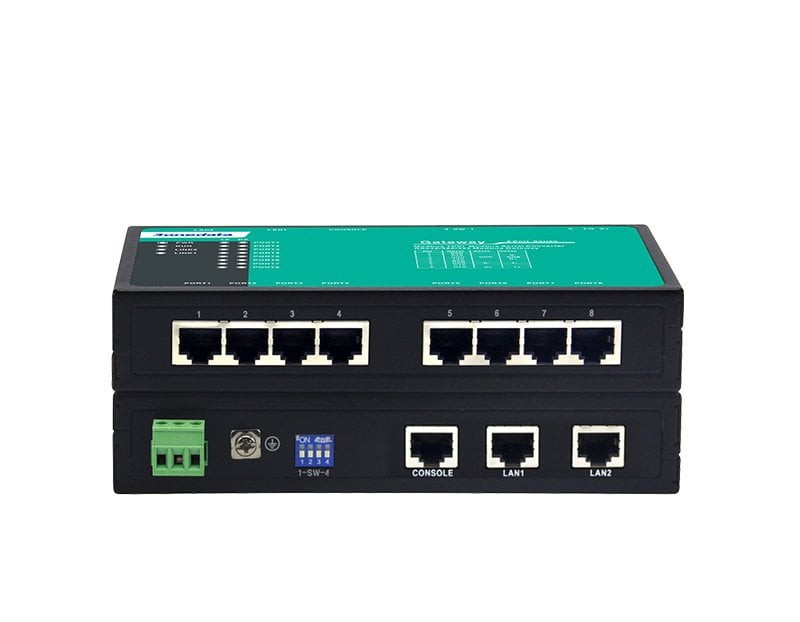

| GW1118-8D(3IN1) | 8*RS-232/422/485 (RJ-45) + 2*10/100Base-T(X) (dual IPs and MACs), single power supply 12-48VDC, wall-mounting |
| Çalışma Sıcaklığı | : | -40/+70C |
| Toplam Port Sayısı | : | 10 |
| RS-422/485 | : | 8 |
| Konnektör Tipi | : | Terminal Block |
| 10/100BaseT(X) | : | 1 |
| Port İzolasyonu | : | VAR |
| MODBUS | : | VAR |
|
Ethernet Port |
Standard: 10Base-T, 100Base-TX Protocol: Modbus TCP, TCP, IP, UDP, ARP, HTTP, TELNET, SNMP, ICMP, DHCP, DNS Rate: 10/100M automatic flow control, MDI/MDI-X autotunning Interface quantity: 2 Interface form: RJ45 Duplex mode: full/half duplex mode self-adaption
|
| Serial Port |
Standard: EIA RS-232C, RS-485, RS-422 Protocol: Modbus RTU/ASCII Quantity of serial port: 8 RS-485/422 or 3IN1 serial port RS-232 signal: DSR, RTS, GND, TXD, RXD, DCD, CTS, DTR RS-485 signal: D+, D-, GND RS-422 signal: T+, T-, GND, R+, R- Baud rate: 300-115200bps Data bit: 5bit, 6bit, 7bit, 8bit Parity bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 2bit Interface form: RS-485/422 serial port with isolation, adopt 5-pin 5.08mm pitch terminal blocks; 3IN1 serial port, adopt RJ45 Flow control: RTS/CTS, DTR/DSR, XON/XOFF Directional control: RS-485 direction adopts Automatic Data Direction Control technology Pull high/low resistor for RS-485: 4.7Kω Intensity of electromagnetic isolation: RS-485/422 serial port (terminal block), 3KVDC/2KVrms Operating mode: RTU Master, RTU Slave, ASCII Master and ASCII Slave Connection quantity: up to 32 TCP Slave requests are supported under Master mode up to 16 TCP Master connections are supported under Slave mode
|
| Configuration |
WEB configuration management, TELNET configuration, Windows configuration tool
|
| Security |
Classification of User Permissions, IP address filtering, MAC address filtering, WEB Console, TELNET Console
|
|
Indicator
|
Power supply indicator, running indicator, Ethernet port indicator, serial port indicator |
|
Power Requirement
|
12~48VDC, 3-pin 5.08mm pitch terminal blocks Power supply nonpolarity
|
|
Power Consumption |
GW1118-8DI(RS-485) No-load: 3.16W@12VDC Full-load: 3.72W@12VDC GW1118-8D(3IN1)-RJ45 No-load: 1.80W@12VDC Full-load: 3.90W@12VDC
|
|
Environmental Limit |
GW1118-8DI(RS-485) Operating temperature: -40~70℃ Storage temperature: -40~70℃ Relative humidity: 5%～95%（no condensation） GW1118-8D(3IN1)-RJ45 Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP30 protection, metal Installation: wall or desktop mounting Dimension (W x H x D): 170mm×49.8mm×110mm (RS-485/422) 170mm×31.5mm×110mm (3IN1) Weight: 740g (RS-485/422), 590g (3IN1)
|
|
Industrial Standard |
IEC 61000-4-2 (ESD, Electro-static Discharge), Level 4 Air discharge: ±15kV Contact discharge: ±8kV IEC 61000-4-4 (EFT/B, Electrical Fast Transient/Burst), Level 3 Power supply: ±2kV Signal: ±1kV IEC 61000-4-5 (Surge), Level 3 Power supply: common mode ±2kV, differential mode ±1kV Signal: common mode ±2kV, differential mode ±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
