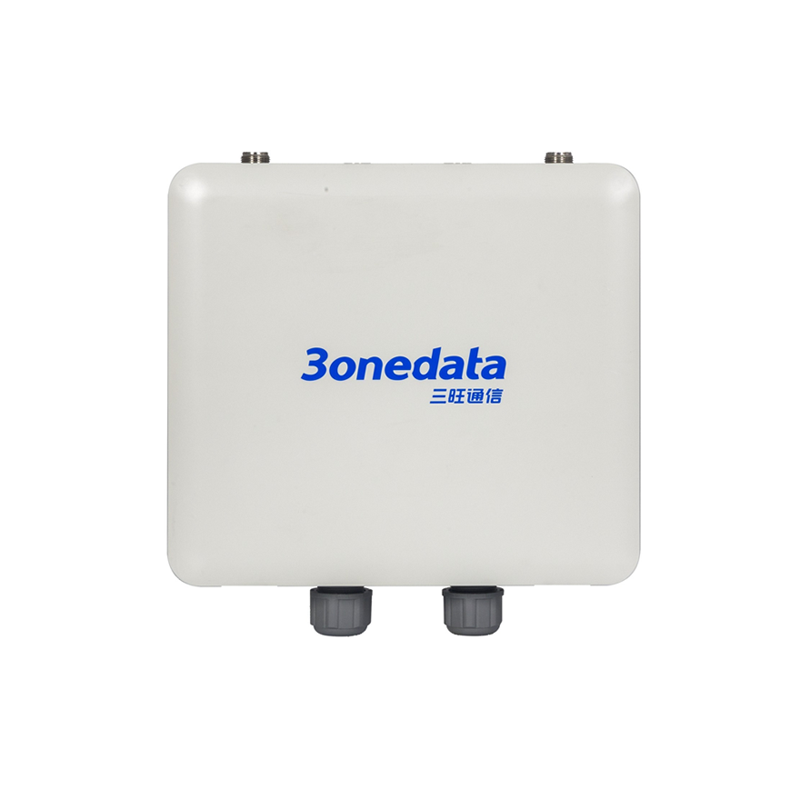

IAP3600S-2225-2GT-PDP12_48
Duvar veya Direk Montajlı Endüstriyel Dış Ortam Dual-band Wi-Fi6 Wireless AP
- 2 x 2.4G anten arayüzü, 2 x 5G anten arayüzü, 1 x Gigabit RJ45 port (LAN) ve 1 x Gigabit PoE RJ45 port (LAN/WAN) desteği
- Wi-Fi6 (802.11ax) desteği; sistem kapasitesini ve eşzamanlı erişimi artırır, iletim gecikmesini azaltır
- Routing, AP, bridge ve client mode gibi çoklu network modlarını destekler
- IEEE802.3at/af PoE power supply input ve 12~48VDC power supply input desteği
- -40~75℃ geniş çalışma sıcaklık aralığı desteği
IAP3600S-2225-2GT-PDP12_48, 2-port Gigabit endüstriyel dış ortam dual-band Wi-Fi6 wireless AP’dir. PoE güç beslemesi IEEE802.3af/at protokol standardına uygundur. Cihaz; 2.4G anten arayüzü, 5G anten arayüzü, Gigabit RJ45 port (LAN), Gigabit PoE RJ45 port (LAN/WAN) ve diğer arayüzleri sunar. Wall mounting veya pole mounting desteğiyle farklı uygulama sahalarının ihtiyaçlarını karşılar.
Network management system; routing, AP, bridge ve client gibi çoklu çalışma modlarını destekler. IEEE802.11a/b/g/n/ac/ax wireless teknolojisini destekler, cihazın toplam wireless transmission rate’i 1774.5Mbps’e kadar çıkabilir. WPA/WPA2/WPA3 gibi wireless encryption methodlarını destekler; ayrıca SSID hiding, wireless user isolation, IP address filtering, MAC filtering, Port forwarding, Port redirection, ARP binding, DMZ setting gibi çeşitli security policy sunar. Virtual AP desteği vardır; yani tek bir AP cihazı birden fazla SSID’yi destekleyebilir.
RESET butonu cihazı yeniden başlatır ve fabrika ayarlarına döndürür. Donanımı fanless, düşük güç tüketimli, geniş sıcaklık ve voltaj aralıklı tasarıma sahiptir ve zorlu EMC gereksinimlerine uygun endüstriyel testlerden geçmiştir. Tüm bileşenleri endüstriyel sınıftadır ve IP68 koruma derecesine sahiptir; bu sayede zorlu dış ortam koşullarına uyum sağlar.
Cihaz; raylı sistemler, güvenlik, akıllı şehir, entegre boru galerileri, üretim otomasyonu, akıllı aydınlatma direkleri ve diğer endüstrilerde yaygın şekilde kullanılabilir.
| Model | Açıklama |
|---|---|
| IAP3600S-2225-2GT-PDP12_48 | Wi-Fi 6, 2*10/100/1000 Base-T(X) RJ45 (1*48VDC PoE input), 2*2.4G N-K antenna interface, 2*5.8G N-K antenna interface, power supply:12~48VDC, EMC 4 grade, IP68, pole/wall mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE802.11a/b/g/n/ac/ax for WLAN
IEEE802.11i for wireless security
IEEE802.11r for fast roaming
IEEE802.11e for WWM
IEEE802.3af for PoE
IEEE802.3at for PoE+
Working Mode
Routing mode (WAN: PPPoE dial-up, static IP, DHCP dynamic IP acquisition)
AP mode (LAN: static IP, DHCP dynamically acquiring IP)
Bridge mode (connection: WDS bridge, universal bridge; point-to-point, roaming)
Client mode (connection: WDS bridge, universal bridge, wireless NAT; point-to-point, roaming)
WLAN
WAP/WAP2/WAP3 personal/enterprise edition encryption mode, hidden wireless SSID, wireless user isolation, wireless transmission power adjustment, maximum user limit, packet segmentation and RTS threshold, China/US wireless channel, WMM
Management
Intranet settings, extranet settings, wireless settings, AC management, SNMP management, roaming agent, user settings, system upgrade, timed restart, profile management, system log, wireless user list, and Wi-Fi real-time traffic monitoring
Security Policy
Wireless user black/white list, wireless user event notice, IP filtering, MAC filtering, port forwarding, port redirection, ARP binding, DMZ setting
Routing/Switching
Static routing (routing mode, wireless NAT)
Location Service
Wireless probe
Troubleshooting
Network Detection
Time Management
NTP Client
Radio Frequency
802.11b/g/n/ax: 2.412GHz~2.4835GHz
802.11a/n/ac/ax: 5.18GHz~5.825GHz
RF power output: 20dBm
Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
Receiving Sensitivity
802.11b: -87dBm@1Mbps, -76dBm@11Mbps
802.11g/a: -82dBm@6Mbps, -65dBm@54Mbps
802.11n: -82dBm@MCS0, -64dBm@MCS7
802.11ac: -82dBm@MCS0, -57dBm@MCS9
802.11ax: -82dBm@MCS0, -52dBm@MCS11
Transmitting Power
802.11b: 24dBm@1Mbps, 20dBm@11Mbps
802.11g/a: 24dBm@6Mbps, 20dBm@54Mbps
802.11n: 24dBm@MCS0, 20Bm@MCS7
802.11ac: 24dBm@MCS0, 20Bm@MCS9
802.11ax: 24dBm@MCS0, 20Bm@MCS11
Interface
Gigabit RJ45 port (LAN): 1 10/100/1000Base-T(X) self-adaptive RJ45 LAN port, support automatic flow control, full/half duplex mode, MDI/MDI-X self-adaption
Gigabit RJ45 port (LAN/WAN): 1 10/100/1000Base-T(X) self-adaptive RJ45 LAN/WAN port, supports automatic flow rate control, full/half duplex, MDI/MDI-X self-adaption; supports IEEE802.3af/at standard PoE power input
Antenna interface: two 2.4G antenna interfaces, N-K(Female)
Two 5G antenna interfaces, N-K(Female)
Power Supply
Gigabit PoE RJ45 port: supports IEEE802.3af/at standard, PoE 48VDC power input
Power supply terminal: 12~48VDC power input, support non-polarity, using 3-pin 5.08mm pitch terminal blocks with waterproof plug
Indicator
Running indicator, 2.4G indicator, 5.8G indicator, WLAN indicator, LAN indicator, bridge signal strength indicator
Power Consumption
No-load: 5.7W@24VDC
Full-load: 7.9W@24VDC (high temperature≤8.6W)
Working Environment
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP68 protection grade
Installation: Wall mounting or pole mounting
Dimension (W x H x D): 275mm×245mm×76mm
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 4
Air discharge: ± 15kV
Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 4
Power supply: ±4kV
Ethernet port: ±2kV
IEC 61000-4-5 (Surge), Level 4
Power supply: common mode±4kV, differential mode±2kV
Ethernet interface: ±4kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
