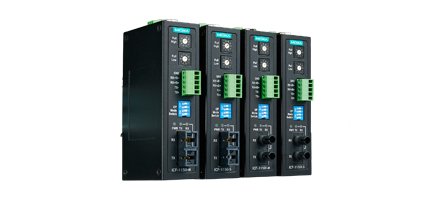

ICF-1150-S-SC-T
Industrial RS-232/422/485 to fiber converters
ICF-1150 serisi, RS-232 iletişimi için bir DB9 konnektörü ve RS-422 veya RS-485 iletişimi için çıkarılabilir terminal bloğu olmak üzere 2 seri bağlantı noktasını destekler. 3 port (2 seri port ve 1 fiber port) tamamen bağımsızdır. Bir ICF-1150 dönüştürücü herhangi bir porttan veri aldığında, verileri diğer 2 port üzerinden gönderir. Örneğin, ICF-1150 dönüştürücüsü fiber port üzerinden bir komut aldığında, sinyali dönüştürecek ve bu komutu RS-232 ve RS-422/485 portları üzerinden aynı anda gönderecektir. Kullanıcı bir RS-485 ağı üzerinde çalışan bir sistemi izliyorsa, dizüstü bilgisayarın seri portunu RS-485 portuna bağlamak için ek bir RS-232'den RS-485 dönüştürücüye ihtiyaç duymaz.
- 3-way communication: RS-232, fiber, and RS-422/485
- Rotary switch to change the pull high/low resistor value
- Extend RS-232/422/485 transmission up to:
- 40 km with single-mode
- 5 km with multi-mode
- 3-way isolation protection (for "I” models only)
- -40 to 85°C wide temperature models available
- C1D2, ATEX, and IECEx certified for harsh industrial environments
ÜRÜN SİPARİŞ KODLARI :
| Model | Açıklama |
|---|---|
| ICF-1150I-M-SC | Industrial RS-232/422/485 to multimode fiber converter, SC connector, 2 KV isolation, 0 to 60°C operating temperature |
| ICF-1150I-M-SC-T | Industrial RS-232/422/485 to multimode fiber converter, SC connector, 2 KV isolation, -40 to 85°C operating temperature |
| ICF-1150I-M-ST | Industrial RS-232/422/485 to multimode fiber converter, ST connector, 2 KV isolation, 0 to 60°C operating temperature |
| ICF-1150I-M-ST-T | Industrial RS-232/422/485 to multimode fiber converter, ST connector, 2 KV isolation, -40 to 85°C operating temperature |
| ICF-1150I-S-SC | Industrial RS-232/422/485 to single mode fiber converter, SC connector, 2 KV isolation, 0 to 60°C operating temperature |
| ICF-1150I-S-SC-T | Industrial RS-232/422/485 to single mode fiber converter, SC connector, 2 KV isolation, -40 to 85°C operating temperature |
| ICF-1150I-S-ST | Industrial RS-232/422/485 to single mode fiber converter, ST connector, 2 KV isolation, 0 to 60°C operating temperature |
| ICF-1150I-S-ST-T | Industrial RS-232/422/485 to single mode fiber converter, ST connector, 2 KV isolation, -40 to 85°C operating temperature |
| ICF-1150-M-SC | Industrial RS-232/422/485 to multimode fiber converter, SC connector, 0 to 60°C operating temperature |
| ICF-1150-M-SC-T | Industrial RS-232/422/485 to multimode fiber converter, SC connector, -40 to 85°C operating temperature |
| ICF-1150-M-ST | Industrial RS-232/422/485 to multimode fiber converter, ST connector, 0 to 60°C operating temperature |
| ICF-1150-M-ST-T | Industrial RS-232/422/485 to multimode fiber converter, ST connector, -40 to 85°C operating temperature |
| ICF-1150-S-SC | Industrial RS-232/422/485 to single mode fiber converter, SC connector, 0 to 60°C operating temperature |
| ICF-1150-S-SC-T | Industrial RS-232/422/485 to single mode fiber converter, SC connector, -40 to 85°C operating temperature |
| ICF-1150-S-ST | Industrial RS-232/422/485 to single mode fiber converter, ST connector, 0 to 60°C operating temperature |
| ICF-1150-S-ST-T | Industrial RS-232/422/485 to single mode fiber converter, ST connector, -40 to 85°C operating temperature |
| ICF-1150-M-SC-IEX | Industrial RS-232/422/485 to multimode fiber converter, SC connector, IECEx, 0 to 60°C operating temperature |
| ICF-1150-M-ST-IEX | Industrial RS-232/422/485 to multimode fiber converter, ST connector, IECEx, 0 to 60°C operating temperature |
| ICF-1150-S-SC-IEX | Industrial RS-232/422/485 to single mode fiber converter, SC connector, IECEx, 0 to 60°C operating temperature |
| ICF-1150-S-ST-IEX | Industrial RS-232/422/485 to single mode fiber converter, ST connector, IECEx, 0 to 60°C operating temperature |
| ICF-1150I-M-SC-IEX | Industrial RS-232/422/485 to multimode fiber converter, SC connector, 2 kV isolation, IECEx, 0 to 60°C operating temperature |
| ICF-1150I-M-ST-IEX | Industrial RS-232/422/485 to multimode fiber converter, ST connector, 2 kV isolation, IECEx, 0 to 60°C operating temperature |
| ICF-1150I-S-SC-IEX | Industrial RS-232/422/485 to single mode fiber converter, SC connector, 2 kV isolation, IECEx, 0 to 60°C operating temperature |
| ICF-1150I-S-ST-IEX | Industrial RS-232/422/485 to single mode fiber converter, ST connector, 2 kV isolation, IECEx, 0 to 60°C operating temperature |
| ICF-1150-M-SC-T-IEX | Industrial RS-232/422/485 to multimode fiber converter, SC connector, IECEx, -40 to 85°C operating temperature |
| ICF-1150-M-ST-T-IEX | Industrial RS-232/422/485 to multimode fiber converter, ST connector, IECEx, -40 to 85°C operating temperature |
| ICF-1150-S-SC-T-IEX | Industrial RS-232/422/485 to single mode fiber converter, SC connector, IECEx, -40 to 85°C operating temperature |
| ICF-1150-S-ST-T-IEX | Industrial RS-232/422/485 to single mode fiber converter, ST connector, IECEx, -40 to 85°C operating temperature |
| ICF-1150I-M-SC-T-IEX | Industrial RS-232/422/485 to multimode fiber converter, SC connector, 2 kV isolation, IECEx, -40 to 85°C operating temperature |
| ICF-1150I-M-ST-T-IEX | Industrial RS-232/422/485 to multimode fiber converter, ST connector, 2 kV isolation, IECEx, -40 to 85°C operating temperature |
| ICF-1150I-S-SC-T-IEX | Industrial RS-232/422/485 to single mode fiber converter, SC connector, 2 kV isolation, IECEx, -40 to 85°C operating temperature |
| ICF-1150I-S-ST-T-IEX | Industrial RS-232/422/485 to single mode fiber converter, ST connector, 2 kV isolation, IECEx, -40 to 85°C operating temperature |
| • Optical-Fiber Side | |
| Fiber Connector | SC or ST |
| Fiber Cable Requirements | |
| Ring Transmission | Half-duplex |
| Point-to-Point Transmission | Half-duplex or full-duplex |
| • RS-232/422/485 Side | |
| RS-232 Signals | TxD, RxD, GND |
| RS-422 Signals | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w Signals | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| Baudrate | 50 bps to 921.6 kbps |
| Isolation | 2 kV RMS isolation per I/O port for 1 minute |
| • Physical Characteristics | |
| Housing | Metal |
| Dimensions | 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in) |
| Weight | 330 g (0.73 lb) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | ICF-1150: 156 mA @ 12 VDC ICF-1150I: 195 mA @ 12 VDC |
| Voltage Reversal Protection | Protects against V+/V- reversal |
| Overcurrent Protection | 1.1 A (protects against two signals shorted together) |
| • Standards and Certifications | |
| Safety | UL 508, EN 62368 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 EEx nC IIC, IECEx |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | EN 61000-4-2 (ESD): Contact: 8 kV; Air: 15 kV EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m EN 61000-4-4 (EFT): Power: 4 kV; Signal: 2 kV EN 61000-4-5 (Surge): Power: 4 kV; Signal: 1 kV EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m EN 61000-4-8 (PFMF) |
| Green Product | RoHS, CRoHS, WEEE |
| Freefall | IEC 60068-2-32 |
| • MTBF (mean time between failures) | |
| Time | 792,085 hrs |
| Standard | Telcordia (Bellcore), GB |
| Water and Dust Proof | IP30 |
| • Warranty | |
| Warranty Period | 5 years |
