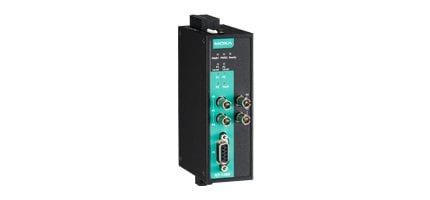

ICF-1280I-M-ST-T
Industrial PROFIBUS-Fiber converters with redundant fiber ring
ICF-1280I serisi endüstriyel PROFIBUS-fiber dönüştürücüler, PROFIBUS sinyallerini bakırdan optik fibere dönüştürmek için kullanılır. Konvertörler, seri iletimi 4 km'ye (multi mode) veya 45 km'ye (single mode) kadar genişletmek için kullanılır. ICF-1180I PROFIBUS cihazınızın kesintisiz çalışmasını sağlamak için PROFIBUS sistemi ve çift güç girişleri için 2 kV izolasyon koruması sağlar.
- Redundant fiber ring with zero recovery time
- Examine network-wide fiber communication from a single converter
- Auto baudrate detection and data speed up to 12 Mbps
- PROFIBUS Bus Fail prevents corrupted datagram in functioning segment
- Alarm by relay output
- 2 kV galvanic isolation protection
- Dual-power inputs for redundancy
- Extends PROFIBUS transmission distance up to 45 km
- Wide temperature range model available for -40 to 75°C environments
- Supports Fiber Signal Intensity Diagnosis
- Fiber cable test function validates fiber communication
ÜRÜN SİPARİŞ KODLARI :
| Model | Açıklama |
|---|---|
| ICF-1280I-M-ST | Industrial PROFIBUS to Fiber Optic Converter, Multi-mode, ST connector, 0 to 60°C |
| ICF-1280I-M-ST-T | Industrial PROFIBUS to Fiber Optic Converter, Multi-mode, ST connector, -40 to 75°C |
| ICF-1280I-S-ST | Industrial PROFIBUS to Fiber Optic Converter, Single-mode, ST connector, 0 to 60°C |
| ICF-1280I-S-ST-T | Industrial PROFIBUS to Fiber Optic Converter, Single-mode, ST connector, -40 to 75°C |
| • Technology | |
| Standards | IEC 61158-2 for PROFIBUS DP |
| • Interface | |
| P1/P2/P3 Ports | P1/P2 ports: ST optical fiber P3 port: PROFIBUS DP (DB9 female) |
| Relay Alarm | One relay output with current-carrying capacity of 2 A @ 30 VDC (Normal open) |
| LED Indicators | PWR1, PWR2, Ready, P1, P2, P3, Fault |
| DIP Switches | DIPs 1 to 4: Baudrate setting DIP 5: Fiber link monitor DIPs 6 to 7: Linear/Star mode (w/ optional P1/P2 disabled), Redundant Ring mode DIP 8: Remote Fiber Diagnosis |
| • PROFIBUS Communication | |
| Data Rate | 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, and 12000 Kbps |
| Auto Baudrate | Yes |
| Isolation Protection | 2 kV |
| • Optical-Fiber Side | |
| Point-to-Point, Linear (Bus), Star, Redundant Topologies | |
| • Physical Characteristics | |
| Housing | Metal |
| Mounting | DIN rail, wall (with optional kit) |
| Dimensions | 39 x 115 x 70 mm (1.54 x 4.53 x 2.76 in) |
| Weight | 225 g (0.49 lb) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 315 mA @ 12 VDC |
| Connector | Terminal Block |
| Power Line Protection | Level 3 (2 kV) Surge Protection |
| Overcurrent Protection | 1.1 A |
| • Standards and Certifications | |
| Safety | UL 508 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 EEx nC IIC, IECEx |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | EN 61000-4-2 (ESD): Contact: 6 kV; Air: 8 kV EN 61000-4-3 (RS): 80 MHz to 1 GHz: 10 V/m EN 61000-4-4 (EFT): Power: 2 kV; Signal: 2 kV EN 61000-4-5 (Surge): Power: 2 kV; Signal: 2 kV EN 61000-4-6 (CS): 150 kHz to 80 MHz: 10 V/m EN 61000-4-8 (PFMF) |
| Green Product | RoHS, CRoHS, WEEE |
| Freefall | IEC 60068-2-32 |
| • MTBF (mean time between failures) | |
| Time | 1,567,875 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
