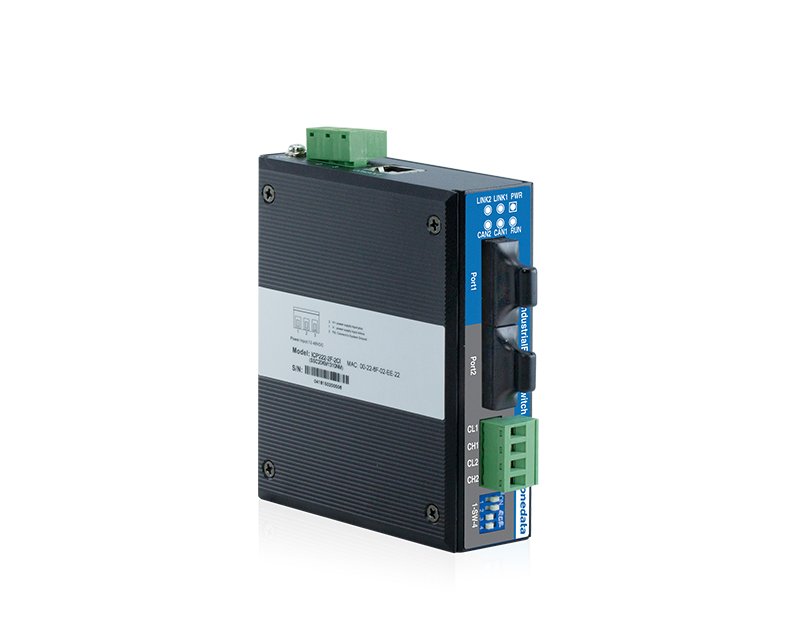

ICP222-2F-2CI (MM,SC)
CAN Bus to Fiber Converter
2-port CAN to 2-port Fiber converter, Multi-Mode, SC, 2Km, 9-48VDC
- 2x Fiber ve 2x CAN portu
- SW-Ring ve Single Ring desteği
- TCP Server, TCP Client, UDP ve TCP Auto modları
- Ağ sorunlarında otomatik kurtarma süresi <20ms
- Veri hızları: 5K-1000Kbps
- Besleme voltajı: 12-48VDC
- Çalışma sıcaklığı: –40~75℃
ICP222-2F Serisi, CAN-Fiber dönüştürücü ailesidir. CANBUS iletişimi sırasında ortaya çıkabilecek elektromanyetik girişim ve mesafe sorunlarına en uygun çözümdür. Ürün, sahip olduğu 2 CAN ve 2 fiber port ile CANBUS ile Ethernet ağı arasında iletişim mesafesini artırmaya yardımcı olur.
Cihaz üzerindeki DIP SWITCH ile CAN portunun baudrate ayarları kolayca yapılabilir. Fansız tasarım, düşük güç tüketimi, geniş çalışma sıcaklığı aralığı ve EMC uygunluğu sayesinde PLC kontrolü, bina otomasyonu, sağlık otomasyon sistemi, ölçüm cihazı ve çevre izleme sistemi gibi çeşitli uygulamalarda tercih edilmektedir.
| Model | Açıklama |
|---|---|
| ICP222-2F-2CI (MM,SC) | 2-port CAN to 2-port Fiber converter, Multi-Mode, SC, 2Km, 9-48VDC |
| ICP222-2F-2CI (MM,ST) | 2-port CAN to 2-port Fiber converter, Multi-Mode, ST, 2Km, 9-48VDC |
| ICP222-2F-2CI (SM,SC) | 2-port CAN to 2-port Fiber converter, Single-Mode, SC, 20Km, 9-48VDC |
| ICP222-2F-2CI (SM,ST) | 2-port CAN to 2-port Fiber converter, Single-Mode, ST, 20Km, 9-48VDC |
| Çalışma Sıcaklığı | : | -40/+75C |
| Toplam Port Sayısı | : | 4 |
| 100BaseFX | : | 2 |
| CAN Port | : | 2 |
|
Fiber Port |
Standard: IEEE 802.3u for 100Base-FX Protocol: TCP, UDP, ARP, HTTP, SW-Ring, TELNET, ICMP, DHCP, DNS Port quantity: 2 Ring network configuration: single ring Transmission speed: 100M Interface form: SC/ST/FC Duplex mode: full duplex Transmission distance: multimode: 2km single mode: 20/40/60/80/100/120km Transmission wavelength: multimode: 1310nm single mode: 1310nm or 1550nm Operating mode: 4 sessions, support operating modes like TCP Server, TCP Client, UDP, TCP Auto, advanced TCP Server and advanced UDP
|
| CAN Interface |
Standard: CAN2.0A, CAN2.0B Interface quantity: 2 CAN ports CAN signal: CANH, CANL Duplex mode: 2-wire Half Duplex Mode Baud rate: 2.5kbps-1000kbps Load capacity: support concurrent transmitting of 110 nodes Transmission distance: 40m~10km Interface form: adopt 4-pin 5.08mm pitch terminal blocks Terminating resistor: optional external 120Ω terminating resistor Interface protection: 2kVAC isolation protection
|
| Console Port |
CLI command line management port (RS-232), RJ45 |
| Configuration Method |
WEB configuration management, TELNET configuration, Windows configuration tool |
| Redundancy Technology |
SW-Ring |
|
LED Indicator
|
Power supply indicator, running indicator, Ethernet fiber port indicator, CAN port indicator |
|
Power Requirement
|
12~48VDC 3-pin 7.62mm pitch terminal blocks Support non-polar connection
|
|
Power Consumption |
No-load: 2.81W@24VDC Full-load: 3.00W@24VDC
|
|
Environmental Limit |
Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95%(no condensation)
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 35mm×110mm×95mm Weight: 374g
|
|
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 Air discharge: ±8kV Contact discharge: ±6kV IEC 61000-4-4 (EFT, electrical fast transient), Level 4 Power supply: ±4kV IEC 61000-4-5 (Surge), Level 3 Power supply: common mode±2kV, differential mode±1kV CAN port: common mode±2kV, differential mode±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
