ICPE2300A-BW-8A25-1GC3GT-PD2P12_48
Endüstriyel İç Ortam 5G Wireless Router
- 1*Gigabit COMBO port (WAN/LAN, opsiyonel RJ45 veya SFP slot), 3*Gigabit copper port (LAN), 2*2.4G anten arayüzü, 2*5.8G anten arayüzü ve 4*5G Sub-6G anten arayüzü desteği sunar (opsiyonel olarak 2*RS-232, 2*RS-485/422, 2*CAN ve 4*I/O).
- CAN port ve serial port, TCP Server, TCP Client, UDP Server, UDP Client gibi çoklu çalışma modlarını destekler.
- I/O port, DI, Counter, DO ve Pulse Output gibi çalışma modlarını destekler. DI ve DO kanalları Modbus TCP Master üzerinden yönetilebilir.
- 5G NR cellular wireless network desteği, tüm 3G/4G LTE ağlarıyla uyumludur.
- 2.4GHz ve 5.8GHz dual band desteği.
- 12~48VDC single power supply dual input desteği, ayrıca WAN portu 48VDC PoE power supply input destekler.
- -40~75℃ geniş çalışma sıcaklık aralığı desteği.

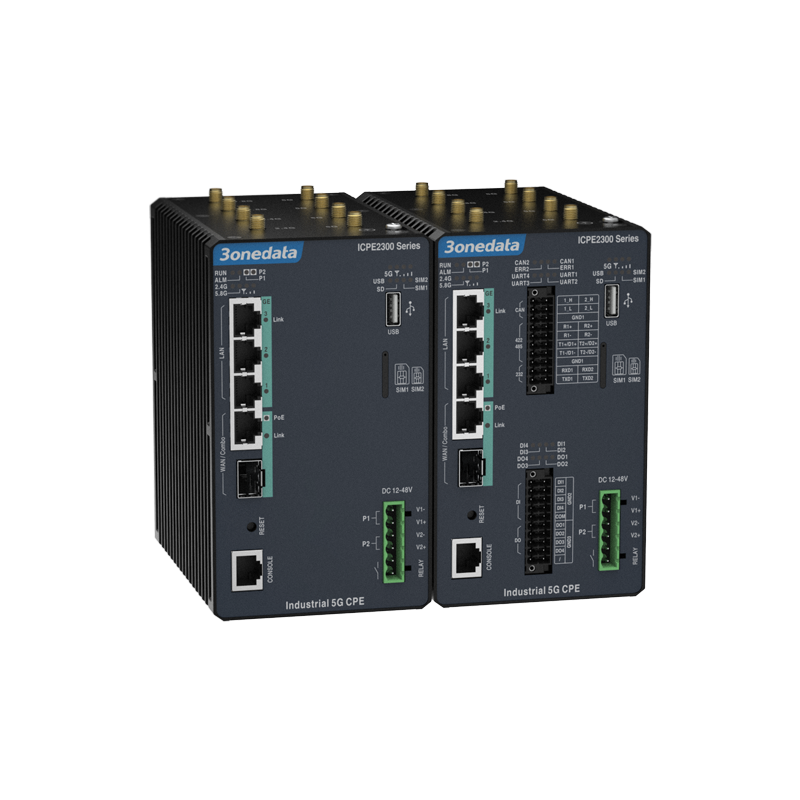

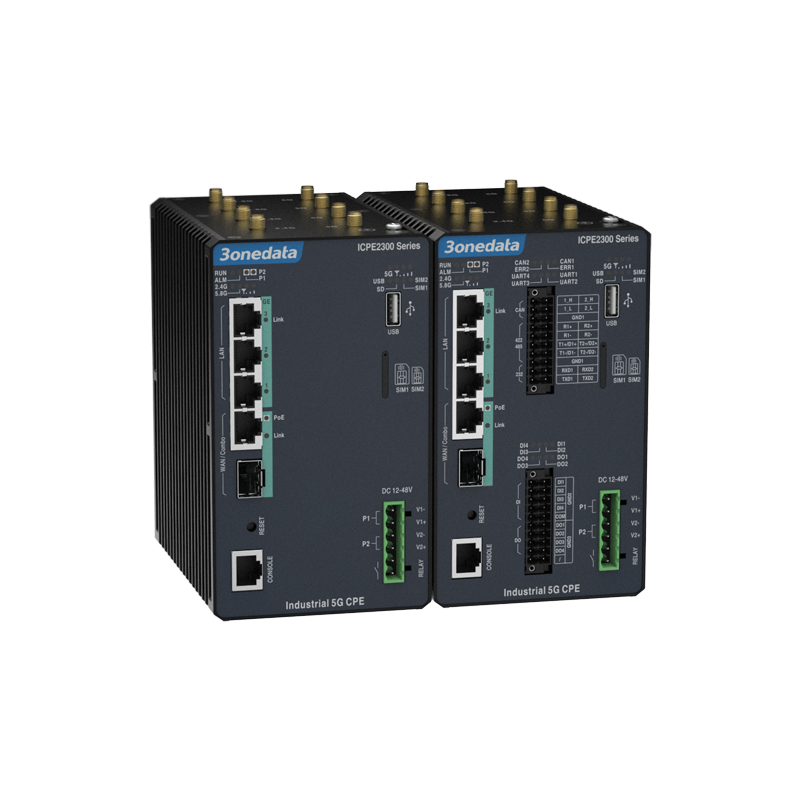

ICPE2300 serisi, endüstriyel 5G wireless router’dır. PoE güç alımı IEEE802.3af/at protokol standardına uygundur. Bu seri iki üründen oluşur ve combo port, Gigabit copper port, USB, 2.4G anten arayüzü, 5.8G anten arayüzü, 5G Sub-6G anten arayüzü, RS-232, RS-485/422, CAN ve I/O gibi çoklu arayüzler sunar. DIN-Rail mounting desteğiyle farklı uygulama senaryolarına uyum sağlar.
Network management system; 3G/4G/5G Cellular WAN, WAN Settings, WiFi & 4G/5G roaming, ICMP Link Test, Link Backup, Dynamic Domain Name, Routing List Setting, WLAN Settings, Port Forwarding, Port Redirection, DMZ Settings, UPnP Settings, VRRP, RIP, OSPF, Static DHCP, QoS gibi yazılım fonksiyonlarını destekler. Ayrıca IP Filtering, MAC Filtering, URL Filtering, Keyword Filtering, IP Address Black/White List gibi firewall özellikleri ile GRE, IPSec, PPTP, L2TP gibi VPN tunneling fonksiyonlarını da sağlar.
Her serial port veya CAN port, 4 TCP veya UDP session destekler; TCP Server, TCP Client, UDP Server, UDP Client, UDP Rang ve UDP Multicast gibi çalışma modlarını destekler. I/O port, DI, Counter, DO ve Pulse Output gibi çalışma modlarını destekler. Kullanıcı dostu arayüz tasarımı sayesinde network management system, kolay ve pratik kullanım deneyimi sunar.
RESET butonu cihazı yeniden başlatır ve tek tuşla fabrika ayarlarına döndürür. Donanımı fanless yapıdadır, düşük güç tüketir, geniş sıcaklık ve voltaj aralığına sahiptir ve zorlu EMC gereksinimleri için endüstriyel standart testlerden geçmiştir.
Cihaz; fabrika otomasyonu, petrokimya, enerji izleme, indoor LAN, 5G sinyalini WiFi kapsamasına dönüştürme, terminal cihazların 5G üzerinden uzaktan erişimi gibi pek çok endüstride yaygın şekilde kullanılabilir.
| Model | Açıklama |
|---|---|
| ICPE2300A-BW-8A25-1GC3GT-PD2P12_48 | 3G/4G/5G, Wi-Fi 5, 3*10/100/1000 Base-T(X) LAN RJ45 + 1*1000M WAN combo, 2*2.4G Wi-Fi antenna interface, 2*5.8G Wi-Fi antenna interface, 4*5G Sub-6G interface, 1*Micro SIM card slot, 1*Nano SIM card slot, dual power supply:12~48VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| ICPE2300-2A-1GC3GT-2C4D4IO-2225-2LVI | 3G/4G/5G, Wi-Fi 5, 3*10/100/1000 Base-T(X) LAN RJ45 + 1*1000M WAN combo + 2*CAN + 4*DI + 4*DO + 2*RS-232 + 2*RS-485/422, 2*2.4G Wi-Fi antenna interface, 2*5.8G Wi-Fi antenna interface, 4*5G Sub-6G interface, 1*Micro SIM card slot, 1*Nano SIM card slot, dual power supply:12~48VDC, DIN-Rail mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
3GPP Rel-15 for 5G NR
3GPP Rel-14 for 4G LTX
3GPP Rel-18 for 3G WCDMA
IEEE802.11b/g/n/a/ac for WLAN
IEEE802.11i for wireless security
IEEE802.11r for fast roaming
IEEE802.3af/at for PoE/PoE+
WAN Mode
Link backup (access to Internet by WAN network or 5G dialing, WAN supports DHCP/static IP/PPPoE dialing); WiFi & 4G/5G roaming (wireless roaming or access to Internet by 5G dialing)
Cellular Network
3G/4G/5G cellular network, network type 5G NR/LTE FDD/ LTE TDD/ WCDMA/ TD-SCDMA/ CDMA/ EVDO
WLAN
WAP/WAP2 personal/enterprise edition encryption mode, hidden wireless SSID, wireless user isolation, wireless transmission power adjustment, maximum user limit, packet segmentation and RTS threshold, China/US wireless channel, WMM
Management
Mobile network detection, local area network, dynamic domain name, UPnP settings, static DHCP, QoS, log management, device alias, access settings, timed restart, backup and recovery, firmware upgrade
Security Policy
Wireless user black/white list, wireless user event notice, IP filtering, MAC filtering, URL filtering, keyword filtering, IP address black/white list, port forwarding, port redirection, DMZ settings
VPN Tunnel
GRE, PPTP Client/Server, L2TP Client/Server, IPSec
Multicast
Multicast Translate
Troubleshooting
System Log, Ping Test and Route Tracking
Routing Technique
VRRP, RIP, OSPF, routing list settings
Time Management
NTP Client
Wi-Fi Radio Frequency
802.11B/g/n: 2.412GHz~2.4835GHz
802.11Ac/n/a: 5.18GHz~5.825GHz
RF power output: 20dBm
Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
Wi-Fi Receiving Sensitivity
802.11n_HT40: -82dBm@MCS0, -64dBm@MCS7
802.11n_HT20: -85dBm@MCS0, -67dBm@MCS7
802.11g/a: -91dBm@6Mbps, -72dBm@54Mbps
802.11b: -93dBm@1Mbps, -87dBm@11Mbps
802.11ac: -84dBm@MCS0, -59dBm@MCS9
Wi-Fi Transmitting Power
802.11n_HT40: 23dBm@MCS0, 20dBm@MCS7
802.11n_HT20: 23dBm@MCS0, 20dBm@MCS7
802.11g/a: 23dBm@6Mbps, 20dBm@54Mbps
802.11b: 23dBm@1Mbps, 20dBm@11Mbps
802.11ac: 23dBm@MCS0, 20dBm@MCS9
5G NR Operating Frequency Band
5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79
4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
4G LTE-TDD: B34/B38/39/B40/B41/B42/B48
3G WCDMA: B1/B2/B3/B4/B5/B6/B8/B19
5G NR Bandwidth (downward, upward)
5G SA: DL 2.1Gbps, UL 900Mbps
5G NSA: DL 2.5Gbps, UL 650Mbps
LTE: DL 1Gbps, UL 200Mbps
WCDMA: DL 42Mbps, UL 5.76Mbps
Interface
Gigabit copper port: 3 10/100/1000Base-T(X) self-adaptive RJ45 LAN ports, support automatic flow control, full/half duplex mode, MDI/MDI-X self-adaption
Gigabit COMBO port: 1 10/100/1000Base-T(X) self-adapting RJ45 port or 1000 Base-X SFP slot, it’s WAN port by default; The copper port supports automatic flow control, full/half duplex, MDI/MDI-X self adaptation, and support PoE power receiving
Antenna interface:
2 2.4G antenna interfaces, RP-SMA-K(Female)
2 5.8G antenna interfaces, RP-SMA-K(Female)
4 5G Sub-6G antenna interfaces, SMA-K(Female)
Serial port (optional): 2 RS-232 and 2 RS-485/422, with 2*10-pin 3.5mm pitch terminal blocks (serial port occupies 14 pins)
CAN (optional): 2 CAN, with 2*10PIN 3.5mm pitch terminal blocks (CAN occupies 6 pins)
I/O port (optional): 4 DI and 4 DO, with 2*10PIN 3.5mm pitch terminal blocks
USB port: 1 Type-A USB 2.0 Female, this interface is reserved
SIM card slot: 1 Micro SIM card slot and 1 Nano SIM card slot, redundant backup; 1 Micro-SD card Slot for reservation
Console port: CLI command line management port(RS-232), RJ45
Alarm port: 6-pin 5.08mm pitch terminal blocks (2 pins for relay), support 1 relay alarm output, this interface is reserved
Serial Port (optional)
Standard: EIA RS-232C, RS-485, RS-422
Quantity of serial port: 2 RS-232 serial ports, 2 RS-485/422 2IN1 serial ports
RS-232 signal: RXD, TXD, GND
RS-485 signal: D+, D-, GND
RS-422 signal: T+, T-, GND, R+, RBaud rate: 110bps-921600bps
Data bit: 5bit, 6bit, 7bit, 8bit
Parity bit: None, Even, Odd, Space, Mark
Stop bit: 1bit, 1.5bit, 2bit
Interface form: adopt 2*10PIN 3.5mm pitch terminal blocks (serial port occupies 14 pins)
Direction control: RS-485 direction adopts Automatic Data Direction Control (ADDC)
Load capacity: RS-485/422 end supports 32-node polling environment
Transmission distance: RS-232, 15m; RS-485/422, 1200m
Work modes: Realcom, TCP Server, TCP Client, UDP Server, UDP Client
CAN (optional)
Standard: CAN2.0A, CAN2.0B
Interface quantity: 2 CAN portsCAN signal: CANH, CANL
Duplex mode: 2-wire Half Duplex Mode
Baud Rate:5/10/20/50/100/125/250/500/800/1000kbps
Load capacity: support concurrent transmitting of 110 nodes
Transmission distance: 40m~10km
Interface form: 2*10PIN 3.5mm pitch terminal blocks (CAN occupies 6 pins)
Work mode: TCP Server, TCP Client, UDP Server, UDP Client, UDP Rang and UDP Multicast
I/O Port (optional)
Interface quantity: 4 DI input, 4 DO output
Interface form: 2*10PIN 3.5mm pitch terminal blocks (DI channel occupies 10 pins, DO channel occupies 8 pins)
DI:
Digital filtering: software configuration (1-65535ms)
Counter frequency: ≤1kHz
Working mode: DI or counter
Input type:
- dry contact (ON: GND short circuit; OFF: open circuit)
- wet contact Source(NPN) (ON: 0~3VDC; OFF: 10~30VDC)
- wet contact Sink(PNP) (ON: 10~30VDC; OFF: 0~3VDC)
DO:
Pulse frequency: ≤ 500Hz
Working mode: DO or pulse output
Output type: Sink (PNP)
Rated current: 200mA/Channel
Overcurrent protection: 650mA/Channel
Overvoltage protection: 45VDC
Power Supply
WAN port: supports PoE power receiving, which conforms to IEEE802.3af/at standard
Power supply terminal: supports 12~48VDC single power and dual power input, supports input redundancy and nonpolarity, adopting 6-pin 5.08mm pitch terminal block(4-pin power supply)
Indicator
Running indicator, alarm indicator, power indicator, 2.4G indicator, 5.8G indicator, Wireless bridge signal strength indicator, interface indicator, PoE indicator, 5G indicator, 5G bridge signal strength indicator, USB indicator, SD card indicator, SIM card indicator, serial port indicator, CAN port indicator, DI indicator, DO indicator
Power Consumption
ICPE2300A-BW-8A25-1GC3GT-PD2P12_48
No-load: 6.5W@24VDC
Full-load: 20.0W@24VDC
Working Environment
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95%(no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Dimension (W x H x D): 88mm×150mm×135mm
Weight: 1.68kg (ICPE2300A-BW-8A25-1GC3GT-PD2P12_48)
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge:± 8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
Power supply: ±2kV
Ethernet port: ±1kV
IEC 61000-4-5 (Surge), Level 3
Power supply: common mode±2kV, differential mode±1kV
Ethernet interface: ±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
MTBF
>250000 hours
Authentication
CE, FCC, RoHS
