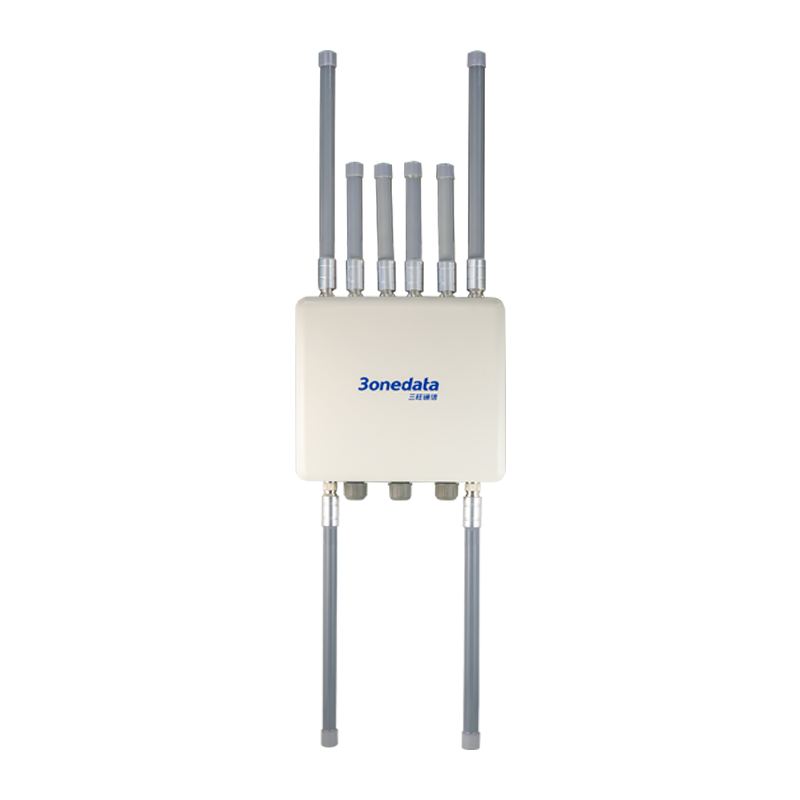

ICPE2600A-BW-8A25-2GT-PDP12_48
Endüstriyel Dış Ortam 5G Wireless Router
- 1 Gigabit PoE WAN, 1 Gigabit LAN, 2×2.4G anten arayüzü, 2×5.8G anten arayüzü ve 4×5G Sub-6G anten arayüzü desteği; endüstriyel uygulamaların yüksek bant genişliği ihtiyacını karşılar.
- 5G NR hücresel wireless network desteği, tüm 3G/4G LTE ağlarıyla uyumludur.
- 2.4GHz ve 5.8GHz dual band desteği.
- 12~48VDC power supply input desteği, ayrıca WAN portu 48VDC PoE power supply input destekler.
- -40~75℃ geniş çalışma sıcaklık aralığı
ICPE2600A-BW-8A25-2GT-PDP12_48, endüstriyel 5G wireless router’dır. PoE güç beslemesi IEEE802.3af/at protokol standardına uygundur. Cihaz; Gigabit PoE WAN, Gigabit LAN, 2.4G anten arayüzü, 5.8G anten arayüzü ve 5G Sub-6G anten arayüzü sunar. Ayrıca wall mounting veya pole mounting desteğiyle farklı uygulama senaryolarına uyum sağlar.
Network management; 3G/4G/5G Cellular WAN, Ethernet WAN, ICMP Link Test, Link Backup, Dynamic Domain Name, Routing Table Setting, WLAN Setting, Port Forwarding, Port Redirection, DMZ Settings, UPnP Setting, VRRP, RIP, OSPF, Static DHCP, QoS gibi yazılım fonksiyonlarını destekler. Ayrıca IP Filtering, MAC Filtering, URL Filtering, Keyword Filtering gibi firewall özellikleri ile GRE, IPSec, PPTP, L2TP gibi VPN tunneling fonksiyonlarını sağlar. Kullanıcı dostu arayüz tasarımı sayesinde network management system kolay, basit ve pratik bir kullanım deneyimi sunar.
RESET butonu cihazın yeniden başlatılmasını ve tek tuşla fabrika ayarlarına dönmesini sağlar. Tüm bileşenleri endüstriyel sınıftadır ve IP68 koruma derecesine sahiptir; bu sayede zorlu dış ortam koşullarına uyum sağlar.
Cihaz; raylı sistemler, güvenlik, akıllı şehir, entegre boru galerileri, üretim otomasyonu, akıllı aydınlatma direkleri ve diğer endüstrilerde yaygın şekilde kullanılabilir.
| Model | Açıklama |
|---|---|
| ICPE2600A-BW-8A25-2GT-PDP12_48 | 3G/4G/5G, Wi-Fi 5, 1*10/100/1000 Base-T(X) LAN RJ45 + 1*10/100/1000 Base-T (X) WAN RJ45, 2*2.4G Wi-Fi antenna interface, 2*5.8G Wi-Fi antenna interface, 4*5G Sub-6G interface,1*Micro SIM card slot, 1*Nano SIM card slot, single power supply:12~48VDC, pole/wall mounting, operating temperature: -40~75℃ |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
3GPP Rel-15 for 5G NR
3GPP Rel-14 for 4G LTX
3GPP Rel-18 for 3G WCDMA
IEEE802.11b/g/n/a/ac for WLAN
IEEE802.11i for wireless security
IEEE802.11r for fast roaming
IEEE802.3af/at for PoE/PoE+
Cellular Network
3G/4G/5G cellular network, network type 5G NR/ LTE FDD/ LTE TDD/ WCDMA/ TD-SCDMA/ HSPA/ CDMA/ EVDO
Network Settings
WAN Network, Wireless WiFi, PPPoE Dialing, Link Backup, Dynamic Domain Name, Routing Table, Wireless Client Filtering, Port Forwarding , Port Redirection, DMZ Settings, UPnP Settings, Static DHCP, QoS, VRRP, RIP, OSPF
Firewall
IP Filtering, MAC Filtering, URL Filtering and Keyword Filtering
VPN Tunnel
GRE, PPTP Client/Server, L2TP Client/Server, IPSec
System Management
Time Settings, Access Settings, Timed Restart, Backup Recovery, Log Management, Firmware Upgrade
Troubleshooting
System Log, Ping Test and Route Tracking
WiFi Radio Frequency
802.11B/g/n: 2.412GHz~2.4835GHz
802.11Ac/n/a: 5.18GHz~5.825GHz
RF power output: 20dBm
Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
WiFi Receiving Sensitivity
802.11n_HT40: -82dBm@MCS0,-64dBm@MCS7
802.11n_HT20: -85dBm@MCS0,-67dBm@MCS7
802.11g/a: -91dBm@6Mbps, -72dBm@54Mbps
802.11b: -93dBm@1Mbps, -87dBm@11Mbps
802.11ac: -84dBm@MCS0,-59dBm@MCS9
WiFi Transmitting Power
802.11n_HT40:20dBm@MCS0,20dBm@MCS7
802.11n_HT20:20dBm@MCS0,20dBm@MCS7
802.11g/a:20dBm@6Mbps,20dBm@54Mbps
802.11b:20dBm@1Mbps,20dBm@11Mbps
802.11ac:20dBm@MCS0,20dBm@MCS9
5G NR Operating Frequency Band
5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79
4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B1 9/B20/B25/B26/B28/B29/B30/B32/B66/B71
4G LTE-TDD: B34/B38/39/B40/B41/B42/B48
3G WCDMA: B1/B2/B3/B4/B5/B6/B8/B19
5G NR Bandwidth (downward, upward)
5G SA: DL 2.1Gbps; UL 900Mbps
5G NSA: DL 2.5Gbps; UL 650Mbps
LTE: DL 1Gbps; UL 200Mbps
WCDMA: DL 42Mbps; UL 5.76Mbps
Interface
WAN port: 1 10/100/1000Base-T(X) RJ45port, support POE 48VDC input power supply
LAN port: 1 10/100/1000Base-T(X) RJ45 port
Antenna: 2 2.4G N-K type (Female) interfaces, 2 5.8G N-K type (Female) interfaces, 4 5G Sub-6G N-K type (Female) interfaces
SIM cart slot: 1 Micro SIM card slot and 1 Nano SIM card slot, redundant backup
Power supply
WAN port: supports PoE 48VDC power receiving, which conforms to IEEE802.3af/at standard
Power supply terminal: 12~48VDC, support non-polarity, using 3-pin 5.08mm pitch terminal with waterproof plug
Indicator
Running status indicator, WLAN indicator, 5G indicator, WLAN indicator, LAN indicator, 5G signal strength indicator
Power consumption
No-load (normal temperature): 5.5W
Full-load (high temperature):15.9W
Working Environment
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP68 protection, metal
Installation: Wall mounting or pole mounting
Dimension (L × W × H): 275mm×76mm×245mm
Weight: 3kg
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 4
Air discharge: ±15kV
Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 4
Power supply: ±4kV
Ethernet interface: ±2kV
IEC 61000-4-5 (Surge), Level 4
Power supply: common mode±4kV, differential mode±2kV
Ethernet interface: ±4kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
MTBF
>250000 hours
Authentication
CE, FCC, RoHS
