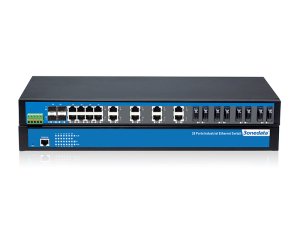

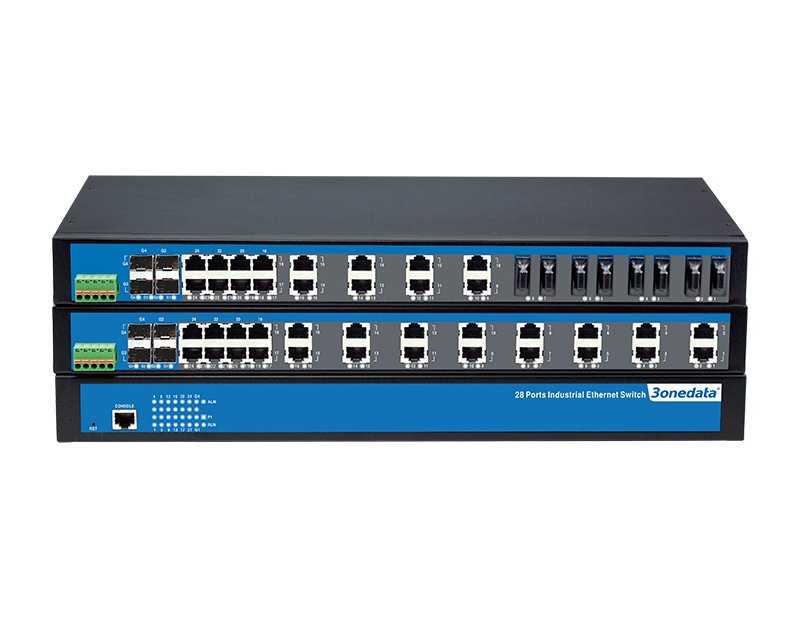

IES1028-4GS-24F (SM,ST)
4*1000M SFP(SFP slot) + 24*100Base-FX (Single-mode, ST, 20KM), single power supply:100～240VAC/DC
- Support 4 Gigabit fiber ports (SFP slots), 24 100M fiber and copper ports optional
- Support power supply input: 100~240VAC
- Support -40~75℃ wide operating temperature range

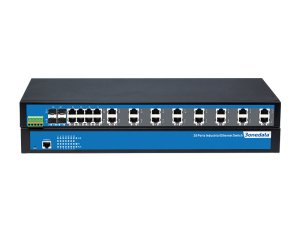

| IES1028-4GS | 4*1000M SFP(SFP slot) + 24*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES1028-4GS-2F (MM,SC) | 4*1000M SFP(SFP slot) + 2*100Base-FX ( Multi-mode, SC/ST/FC, 2KM) + 22*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES1028-4GS-2F (MM,ST) | |
| IES1028-4GS-2F (SM,SC) | 4*1000M SFP(SFP slot) + 2*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 22*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES1028-4GS-2F (SM,ST) | |
| IES1028-4GS-4F (MM,SC) | 4*1000M SFP(SFP slot) + 4*100Base-FX (Multi-mode, SC/ST/FC, 2KM) + 20*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES1028-4GS-4F (MM,ST) | |
| IES1028-4GS-4F (SM,SC) | 4*1000M SFP(SFP slot) + 4*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 20*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES1028-4GS-4F (SM,ST) | |
| IES1028-4GS-8F (MM,SC) | 4*1000M SFP(SFP slot) + 8*100Base-FX (Multi-mode, SC/ST/FC, 2KM) + 16*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES1028-4GS-8F (MM,ST) | |
| IES1028-4GS-8F (SM,SC) | 4*1000M SFP(SFP slot) + 8*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 16*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES1028-4GS-8F (SM,ST) | |
| IES1028-4GS-12F (MM,SC) | 4*1000M SFP(SFP slot) + 12*100Base-FX (Multi-mode, SC/ST/FC, 2KM) + 12*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES1028-4GS-12F (MM,ST) | |
| IES1028-4GS-12F (SM,SC) | 4*1000M SFP(SFP slot) + 12*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 12*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES1028-4GS-12F (SM,ST) | |
| IES1028-4GS-16F (MM,SC) | 4*1000M SFP(SFP slot) + 16*100Base-FX (Multi-mode, SC/ST/FC, 2KM) + 8*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES1028-4GS-16F (MM,ST) | |
| IES1028-4GS-16F (SM,SC) | 4*1000M SFP(SFP slot) + 16*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 8*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES1028-4GS-16F (SM,ST) | |
| IES1028-4GS-20F (MM,SC) | 4*1000M SFP(SFP slot) + 20*100Base-FX (Multi-mode, SC/ST/FC, 2KM) + 4*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES1028-4GS-20F (MM,ST) | |
| IES1028-4GS-20F (SM,SC) | 4*1000M SFP(SFP slot) + 20*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 4*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES1028-4GS-20F (SM,ST) | |
| IES1028-4GS-24F (MM,SC) | 4*1000M SFP(SFP slot) + 24*100Base-FX (Multi-mode, SC/ST/FC, 2KM), single power supply:100～240VAC/DC |
| IES1028-4GS-24F (MM,ST) | |
| IES1028-4GS-24F (SM,SC) | 4*1000M SFP(SFP slot) + 24*100Base-FX (Single-mode, SC/ST/FC, 20KM), single power supply:100～240VAC/DC |
| IES1028-4GS-24F (SM,ST) |
| Toplam Port Sayısı | : | 28 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 100BaseFX SFP | : | 24 |
| 1000Base SFP | : | 4 |
|
Standard &Protocol
|
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X
|
| Interface |
Copper port: 10Base-T/100Base-TX, RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX, SC/ST/FC optional SFP slot: 1000Base-SFP
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 3Mbit Backplane bandwidth: 12.8G Switch time delay: <10μs
|
|
Power Requirement |
100~240VAC/DC support 8A overcurrent protection
|
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP30 protection, metal Installation: 19 inches 1U rack mounting Dimension (W x H x D): 441.6mm×44.6mm×207.9mm
|
|
Industrial Standard |
IEC 61000-4-2 (ESD) ，Level 4 Air discharge: ±15kV Contact discharge: ±8kV IEC 61000-4-4 (EFT), Level 4 Power supply: ±4kV Ethernet interface: ±2kV Relay: ±4kV IEC 61000-4-5 (Surge), Level 4 Power supply: common mode ±4kV, differential mode ±2kV Ethernet interface: ±4kV Relay: common mode ±4kV, differential mode ±2kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
