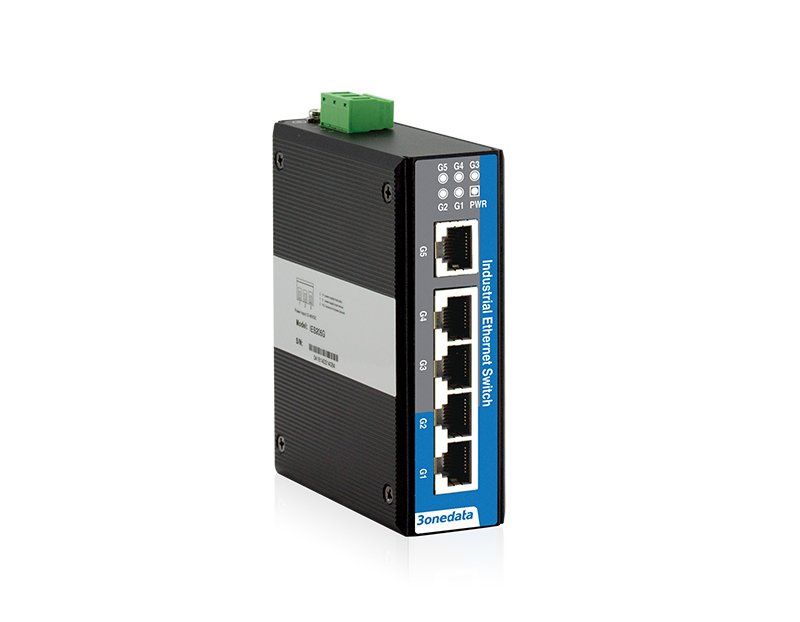

IES205G
5*10/100/1000Base-T(X) (RJ45), single power supply: 12～48VDC
- Support 5 Gigabit copper ports
- Input voltage: 12~48VDC, nonpolarity, reverse polarity protection
- Support -40~75℃ wide operating temperature range
IES205G, 5 port full Gigabit Layer 2 yönetilemez endüstriyel ethernet anahtarlarıdır. Donanım, fansız, düşük güç tüketimi, geniş çalışma sıcaklık aralığında ve EMC özellikleri ile endüstriyel standart testlerini geçmiştir. Demiryolu geçişi, akıllı şehir, güvenli şehir, enerji, havacılık, askeri proje ve diğer endüstriyel alanlarda yaygın olarak kullanılabilir.
| Toplam Port Sayısı | : | 5 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100/1000BaseT(X) | : | 5 |
|
Standard &Protocol
|
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T
|
| Interface |
10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
|
|
LED Indicator |
Port Indicator, Power Supply Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 1K Packet buffer size: 1Mbit Backplane bandwidth: 12G Switch time delay: <10μs
|
|
Power Requirement |
Input voltage: 12~48VDC, 3-pin 7.62mm pitch terminal blocks nonpolarity, reverse polarity protection
|
|
Power Consumption |
No-load: 0.86W@24VDC Full-load: 4.63W@24VDC |
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail mounting Weight: 387g Dimension (W x H x D): 35mm×110mm×95mm
|
|
Industrial Standard |
IEC 61000-4-2 (ESD), Level 3 Air discharge: ±8kV Contact discharge: ±6kV IEC 61000-4-4 (EFT), Level 3 Power supply: common mode ±2kV, differential mode ±1kV IEC 61000-4-5 (Surge), Level 3 Power supply: ±2kV Ethernet interface: ±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
