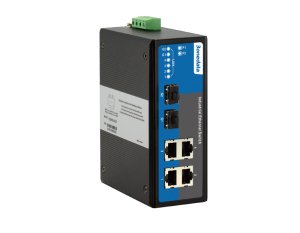

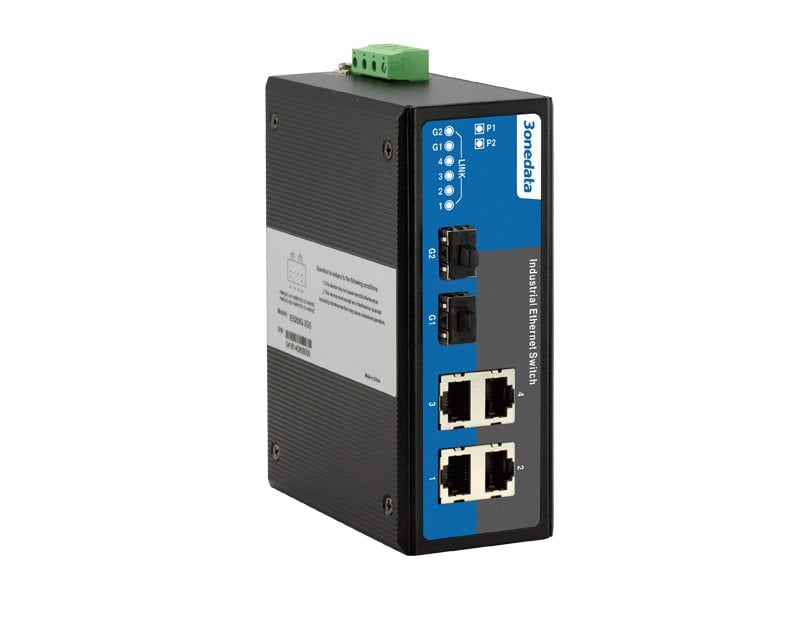

IES206G-2GS
2*1000M SFP(SFP slot) + 4*10/100/1000Base-T(X) (RJ45), dual power supply: 12~48VDC
- Support 2 Gigabit fiber ports (SFP slots), 4 Gigabit copper ports
- Support dual power supply input, input voltage: 12~48VDC, nonpolarity, reverse polarity protection
- Support -40~75℃ wide operating temperature range
IES206G, 6 port full Gigabit Layer 2 yönetilemez endüstriyel ethernet anahtarlarıdır. Donanım, fansız, düşük güç tüketimi, geniş çalışma sıcaklık aralığında ve EMC özellikleri ile endüstriyel standart testlerini geçmiştir. Demiryolu geçişi, akıllı şehir, güvenli şehir, enerji, havacılık, askeri proje ve diğer endüstriyel alanlarda yaygın olarak kullanılabilir.
| Toplam Port Sayısı | : | 6 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100/1000BaseT(X) | : | 4 |
| 1000Base SFP | : | 2 |
|
Standard &Protocol
|
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X
|
| Interface |
Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning SFP slot: 1000Base-SFP
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 1K Packet buffer size: 1Mbit Backplane bandwidth: 12G Switch time delay: <10μs
|
|
Power Requirement |
12~48VDC Dual power supply redundancy, nonpolarity, reverse polarity protection
|
|
Power Consumption |
No-load: 1.44W@24VDC Full-load: 4.34W@24VDC |
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail mounting Weight: 0.69kg Dimension (W x H x D): 53mm×138mm×110mm
|
|
Industrial Standard |
IEC 61000-4-2 (ESD), Level 4 Air discharge: ±15kV Contact discharge: ±8kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS, UL61010 |
