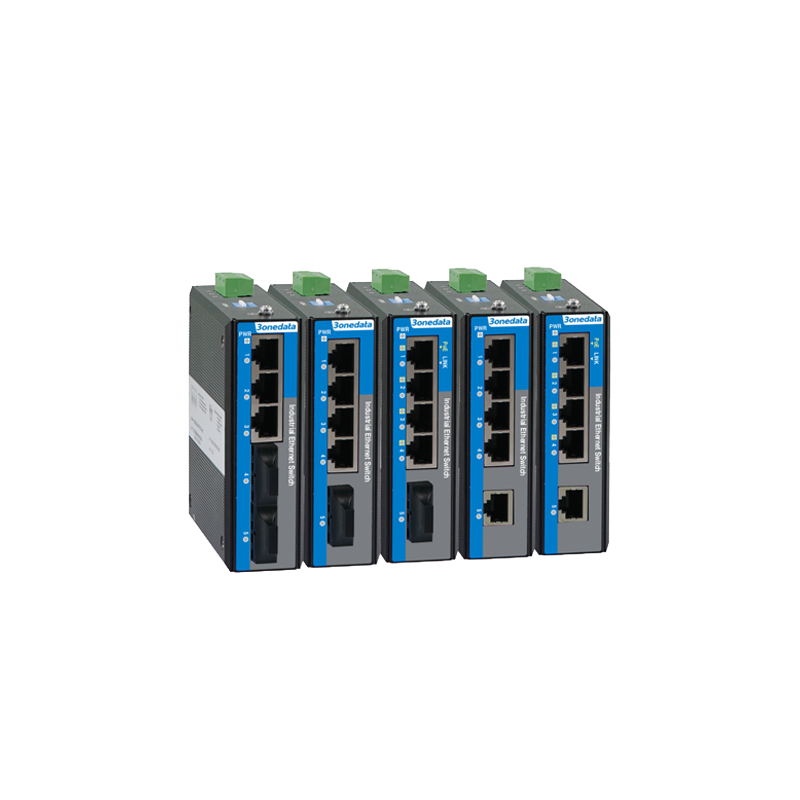

IES2105-4T1F-P48 (MM,SC)
4*10/100Base-T(X) RJ45 + 1*100M SC (multi-mode, 2KM), single power supply 12~48VDC
IES2105 serisi, unmanaged industrial PoE Ethernet switch modellerinden oluşur. Seri toplam 8 farklı ürün sunar ve 100M copper port, 100M fiber port ve 100M PoE copper port seçeneklerini destekler. Ayrıca 220VAC, 12~48VDC ve 48VDC PoE gibi çoklu power supply seçenekleri bulunur. DIN-Rail mounting yapısı, farklı uygulama senaryolarına uyum sağlar.
- 5 x 100M PoE/Non-PoE fiber/copper port destekler
- Tek bir PoE port maksimum 30W güç sağlayabilir
- PoE modelleri 48VDC PoE power supply input destekler
- Non-PoE modeller 220VAC / 12~48VDC power supply input (opsiyonel) destekler
- -40~75 °C geniş çalışma sıcaklık aralığı destekler
DIP switch üzerinden jumbo frame, one-key VLAN ve flow control gibi fonksiyonlar kullanılabilir. Donanım fanless yapıdadır, düşük güç tüketir, geniş sıcaklık ve geniş voltaj aralığını destekler. Sıkı endüstriyel testlerden geçmiştir ve zorlu EMC gereksinimlerine sahip ortamlarda kararlı çalışır. Akıllı şebeke, demiryolu taşımacılığı, akıllı şehir uygulamaları, güvenli şehir çözümleri, yenilenebilir enerji sistemleri, akıllı üretim ve diğer endüstriyel alanlarda yaygın şekilde kullanılabilir.
| Model | Açıklama |
|---|---|
| IES2105-5T-P48 | Unmanaged, 5*10/100Base-T(X) RJ45, single power supply 12~48VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-4T1F-P48 (MM,SC) | Unmanaged, 4*10/100Base-T(X) RJ45 + 1*100M SC (multi-mode, 2KM), single power supply 12~48VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-4T1F-P48 (MM,ST) | Unmanaged, 4*10/100Base-T(X) RJ45 + 1*100M ST (multi-mode, 2KM), single power supply 12~48VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-4T1F-P48 (SM,SC) | Unmanaged, 4*10/100Base-T(X) RJ45 + 1*100M SC (single-mode, 20KM), single power supply 12~48VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-4T1F-P48 (SM,ST) | Unmanaged, 4*10/100Base-T(X) RJ45 + 1*100M ST (single-mode, 20KM), single power supply 12~48VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-3T2F-P48 (MM,SC) | Unmanaged, 3*10/100Base-T(X) RJ45 + 2*100M SC (multi-mode, 2KM), single power supply 12~48VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-3T2F-P48 (MM,ST) | Unmanaged, 3*10/100Base-T(X) RJ45 + 2*100M ST (multi-mode, 2KM), single power supply 12~48VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-3T2F-P48 (SM,SC) | Unmanaged, 3*10/100Base-T(X) RJ45 + 2*100M SC (single-mode, 20KM), single power supply 12~48VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-3T2F-P48 (SM,ST) | Unmanaged, 3*10/100Base-T(X) RJ45 + 2*100M ST (single-mode, 20KM), single power supply 12~48VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-5T-P220 | Unmanaged, 5*10/100Base-T(X) RJ45, single power supply 100~240VAC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-4T1F-P220 (MM,SC) | Unmanaged, 4*10/100Base-T(X) RJ45 + 1*100M SC (multi-mode, 2KM), single power supply 100~240VAC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-4T1F-P220 (MM,ST) | Unmanaged, 4*10/100Base-T(X) RJ45 + 1*100M ST (multi-mode, 2KM), single power supply 100~240VAC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-4T1F-P220 (SM,SC) | Unmanaged, 4*10/100Base-T(X) RJ45 + 1*100M SC (single-mode, 20KM), single power supply 100~240VAC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-4T1F-P220 (SM,ST) | Unmanaged, 4*10/100Base-T(X) RJ45 + 1*100M ST (single-mode, 20KM), single power supply 100~240VAC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-3T2F-P220 (MM,SC) | Unmanaged, 3*10/100Base-T(X) RJ45 + 2*100M SC (multi-mode, 2KM), single power supply 100~240VAC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-3T2F-P220 (MM,ST) | Unmanaged, 3*10/100Base-T(X) RJ45 + 2*100M ST (multi-mode, 2KM), single power supply 100~240VAC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-3T2F-P220 (SM,SC) | Unmanaged, 3*10/100Base-T(X) RJ45 + 2*100M SC (single-mode, 20KM), single power supply 100~240VAC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-3T2F-P220 (SM,ST) | Unmanaged, 3*10/100Base-T(X) RJ45 + 2*100M ST (single-mode, 20KM), single power supply 100~240VAC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-4P1T-P48 | Unmanaged, 4*10/100Base-T(X) PoE RJ45 + 1*10/100Base-T(X) RJ45, single power supply 44~55VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-4P1F-P48 (MM,SC) | Unmanaged, 4*10/100Base-T(X) PoE RJ45 + 1*100M SC (multi-mode, 2KM), single power supply 44~55VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-4P1F-P48 (MM,ST) | Unmanaged, 4*10/100Base-T(X) PoE RJ45 + 1*100M ST (multi-mode, 2KM), single power supply 44~55VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-4P1F-P48 (SM,SC) | Unmanaged, 4*10/100Base-T(X) PoE RJ45 + 1*100M SC (single-mode, 20KM), single power supply 44~55VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2105-4P1F-P48 (SM,ST) | Unmanaged, 4*10/100Base-T(X) PoE RJ45 + 1*100M ST (single-mode, 20KM), single power supply 44~55VDC, DIN-Rail mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100BaseFX
IEEE 802.3x for Flow Control
IEEE 802.1Q for VLAN
IEEE 802.3af for PoE
IEEE 802.3at for PoE+
PoE
The maximum power of PoE port: 30W
The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6
Interface
100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/ MDI-X Autotunning
100M fiber port: 100Base-FX, optional SC/ST/FC
100M POE copper port: 10/100Base-T(X) RJ45, automatic flow control, full/half duplex mode, MDI/ MDI-X autotunning, POE port, output power of 15W or 30W.
Indicator
Port Indicator, Power Supply Indicator, PoE Indicator
Switch Property
MAC address: 2K
Backplane bandwidth: 1G
Transmission mode: store and forward
Switch time delay: <10μs
Power Supply
Optional AC/DC power supply, 12~ 48VDC, 48VDC PoE or 220VAC
3-pin 7.62mm pitch terminal blocks
Power Consumption
|
Available Models |
No-load @48VDC |
Full-load @48VDC |
|
IES2105-5T-P48 |
≤0.96W |
≤1.4W |
|
IES2105-4P1F-P48 |
≤2W |
≤110W |
Working Environment
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Dimension (W x H x D): 35mm×110mm×95mm
Weight
IES2105-5T-P48, IES2105-5T-P220: 356g
IES2105-4P1F-P48, IES2105-4P1F-P220: 384g
IES2105-4T1F-P220: 375g
IES2105-3T2F-P48, IES2105-3T2F-P220: 355g
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge:± 8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 3
Power supply: ±2kV
Signal: ±1kV
IEC61000-4-5 (Surge), Level 3
Power supply: differential mode±1kV, common mode±2kV
Signal: differential mode±1kV, common mode±2kV
Shock: IEC 60068- 2- 27
Free fall: IEC 60068- 2- 32
Vibration: IEC 60068- 2- 6
Certification
CE, FCC, RoHS
