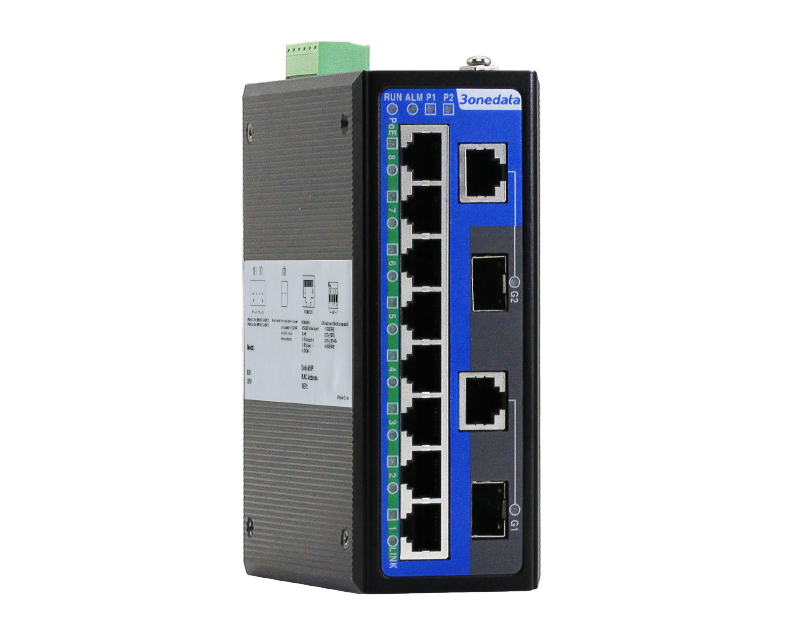

IES2210-8T2GC-2P48
8*10/100Base-T(X) RJ45 + 2*1000M Combo, dual power supply 12~48VDC
- 2 Gigabit Combo port (SFP slot veya RJ45), 4 veya 8 100M copper port (opsiyonel PoE)
- Tek PoE port maksimum gücü 30W
- Opsiyonel AC/DC power supply, DC dual power supply redundancy (yedeklilik)
- -40~75℃ geniş çalışma sıcaklık aralığı
IES2210 serisi, 6/10 portlu 100M/Gigabit Layer 2 unmanaged endüstriyel Ethernet switch’lerdir. Bu seri; 100M copper port (opsiyonel PoE) ve Gigabit Combo port (SFP slot veya RJ45) sunar ve PoE güç beslemesi IEEE802.3af/at protokol standardına uygundur. Ayrıca DIN-Rail veya duvar montajını destekler.
Bu seri opsiyonel AC/DC power supply desteği sunar. Giriş power supply, iki bağımsız besleme devresinden oluşur; böylece beslemelerden biri arıza yaptığında cihazın normal çalışması sağlanır. DIP switch tasarımı sayesinde flow control, 10M sabit hızda port çalışması ve alarm işlevleri gerçekleştirilebilir. Port bağlantı hatası oluştuğunda ALM indicator yanar ve alarm verir; aynı anda röleye bağlı alarm device hızlı saha arızası tespiti için uyarı gönderir.
Donanım fanless, düşük güç tüketimi, geniş sıcaklık ve voltaj aralığına sahip olacak şekilde tasarlanmıştır ve zorlu EMC gereksinimlerine sahip endüstriyel ortamlara uygun olduğunu kanıtlayan katı endüstriyel standart testlerinden geçmiştir. Akıllı şebeke, raylı ulaşım, akıllı şehir, güvenli şehir, yeni enerji, akıllı üretim ve diğer endüstriyel alanlarda yaygın olarak kullanılır.
| Model | Açıklama |
|---|---|
| IES2210-8T2GC-2P48 | Unmanaged, 8*10/100Base-T(X) RJ45 + 2*1000M Combo, dual power supply 12~48VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2210-8T2GC-P220 | Unmanaged, 8*10/100Base-T(X) RJ45 + 2*1000M Combo, single power supply 85~264VAC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2210-4T2GC-2P48 | Unmanaged, 4*10/100Base-T(X) RJ45 + 2*1000M Combo, dual power supply 12~48VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2210-4T2GC-P220 | Unmanaged, 4*10/100Base-T(X) RJ45 + 2*1000M Combo, single power supply 85~264VAC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2210-8P2GC-2P24-120W | Unmanaged, 8*10/100Base-T(X) PoE (120W) RJ45 + 2*1000M Combo, dual power supply 18~36VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2210-8P2GC-2P48-120W | Unmanaged, 8*10/100Base-T(X) PoE (120W) RJ45 + 2*1000M Combo, dual power supply 45~55VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2210-8P2GC-2P48-240W | Unmanaged, 8*10/100Base-T(X) PoE (240W) RJ45 + 2*1000M Combo, dual power supply 45~55VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2210-4P2GC-2P24-60W | Unmanaged, 4*10/100Base-T(X) PoE (60W) RJ45 + 2*1000M Combo, dual power supply 18~36VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2210-4P2GC-2P24-120W | Unmanaged, 4*10/100Base-T(X) PoE (120W) RJ45 + 2*1000M Combo, dual power supply 18~36VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2210-4P2GC-2P48-120W | Unmanaged, 4*10/100Base-T(X) PoE(120W) RJ45 + 2*1000M Combo, dual power supply 45~55VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| Toplam Port Sayısı | : | 10 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 8 |
| Combo Port | : | 2 |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control
IEEE 802.3af for PoE
IEEE 802.3at for PoE+
PoE
The maximum power of single PoE port: 15/30W
The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6
Interface
100M copper port: 10/100Base-T(X), RJ45, Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
Combo port: 10/100/1000Base-T(X) or 1000Base-X
Console port: CLI command line management port (RS-232), RJ45
Alarm port: 6-pin 5.08mm pitch terminal blocks, including 2-pin alarm terminal blocks, support 1 relay alarm output, current carrying capacity is 1A@30VDC or 0.3A@125VAC
LED Indicator
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator, PoE Indicator (only for PoE products)
Switch Property
Transmission mode: store and forward
MAC address: 8K
Packet buffer size: 1Mbit
Backplane bandwidth: 7.6G
Switch time delay: <10μs
Power Requirement
Optional 24VDC, 48VDC or 220VAC, 6 pins 5.08mm pitch terminal blocks, including 4 pins power supply terminal blocks
DC dual power supply redundancy, anti-reverse connection
Power Consumption
No-load: ≤4.9W@48VDC
Full-load: ≤122.8W@48VDC
Environmental Limit
Operating temperature range: -40~75℃
Storage temperature range: -40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 53mm×138mm×110mm
Weight: ≤0.62kg
Industrial Standard
EC 61000-4-2 (ESD), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT), Level 3
Power supply:±2kV
Ethernet port: ±1kV
Relay: ±2kV
IEC 61000-4-5 (Surge), Level 3
Power supply: common mode±2kV, differential mode±1kV
Ethernet port: common mode±2kV, differential mode±1kV
Relay: common mode±2kV, differential mode±1kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS
