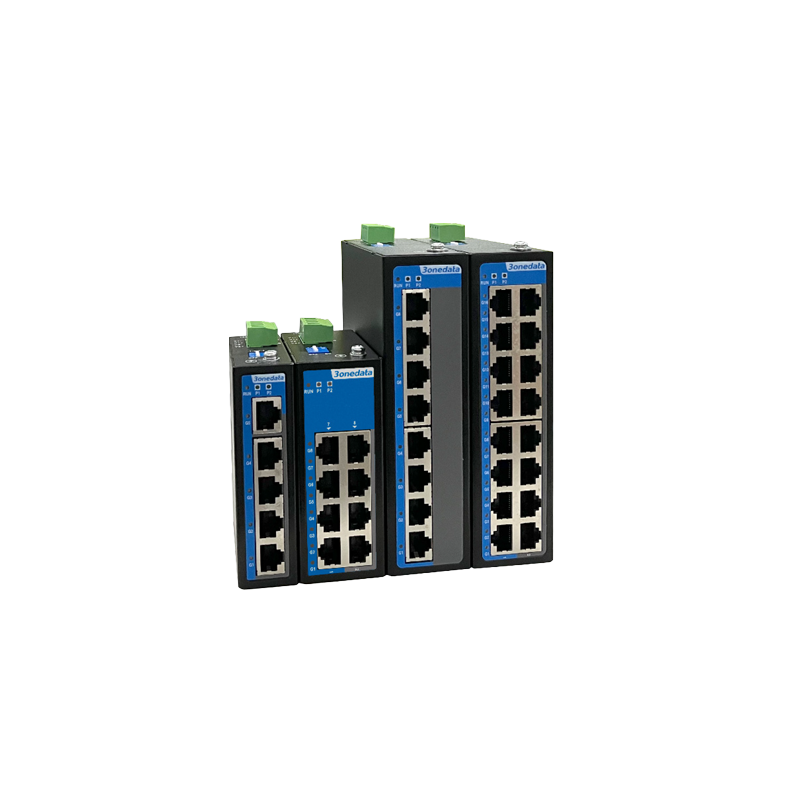

IES2300SL-8GT-2LV
8*10/100/1000Base-T(X) RJ45, compact size,dual power supply 9~60VDC
IES2300SL Serisi
- Opsiyonel olarak 5, 8 veya 16 adet Gigabit copper port destekler
- Storm suppression, flow control, one-key VLAN, loop detection (16GT), forced 100M (5GT, 8GT) gibi fonksiyonları destekler
- Dual power redundancy, giriş voltajı 12/24/48 VDC (9~60VDC)
- -40~75°C geniş çalışma sıcaklık aralığı
- IP40 koruma seviyesi destekler
IES2300SL serisi, 5/8/16 port Gigabit unmanaged industrial Ethernet switch modellerinden oluşur. Seri toplam 4 ürün sunar ve Gigabit copper port desteği sağlar. Farklı uygulama senaryoları için DIN-Rail mounting yapısını destekler.
DIP switch, storm suppression, flow control, VLAN, loop detection ve forced 100M gibi fonksiyonları aktif edebilir. Power supply yapısı iki bağımsız devreden oluşur; güç kaynaklarından biri arızalansa bile cihaz çalışmaya devam eder. Donanım fanless yapıdadır, düşük güç tüketir, geniş sıcaklık ve geniş voltaj aralığını destekler. Zorlu EMC gereksinimlerine uygun olduğunu gösteren sıkı endüstriyel testlerden geçmiştir. Akıllı şehir uygulamaları, raylı sistemler, güvenli şehir çözümleri, yenilenebilir enerji sistemleri, akıllı üretim ve diğer endüstriyel alanlarda yaygın şekilde kullanılabilir.
| Model | Açıklama |
|---|---|
| IES2300SL-5GT-2LV | Unmanaged, 5*10/100/1000Base-T(X) RJ45,dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2300SL-8GT-2LV | Unmanaged, 8*10/100/1000Base-T(X) RJ45, compact size,dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2301SL-8GT-2LV | Unmanaged, 8*10/100/1000Base-T(X) RJ45,dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES2300SL-16GT-2LV | Unmanaged, 16*10/100/1000Base-T(X) RJ45, dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.1Q for VLAN
Interface
Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning
DIP switch: 1- forced 100M (5GT, 8GT) / loop detection (16GT), 2- storm suppression, 3-VLAN, 4-flow control
Indicator
Power indicator, running indicator, interface indicator
Switch Property
IES2300SL-5GT-2LV
Transmission mode: store and forward
MAC address: 2K
Buffer: 2Mbit
Backplane bandwidth: 14G
Switch time delay: <10μs
IES2300SL-8GT-2LV, IES2301SL-8GT-2LV
Transmission mode: store and forward
MAC address: 4K
Buffer: 1.5Mbit
Backplane bandwidth: 16G
Switch time delay: <10μs
IES2300SL-16GT-2LV
Transmission mode: store and forward
MAC address: 8K
Buffer: 4.1Mbit
Backplane bandwidth: 52G
Switch time delay: <10μs
Power Supply
12/24/48 VDC (9~60VDC), dual power supply redundancy, using 4-pin
5.08mm pitch terminal blocks, support anti-reverse connection
Power Consumption
IES2300SL-5GT-2LV
No-load: 0.2W@12VDC
Full-load: 1.6W@12VDC
IES2300SL-8GT-2LV, IES2301SL-8GT-2LV
No-load: 0.4W@12VDC
Full-load: 3.0W@12VDC
IES2300SL-16GT-2LV
No-load: 3.3W@48VDC
Full-load: 10.4W@48VDC
Working Environment
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Weight:
0.567kg (IES2301SL-8GT-2LV)
0.644kg (IES2300SL-16GT-2LV)
Dimension (W x H x D):
IES2300SL-5GT-2LV： 28mm×103mm×78mm
IES2300SL-8GT-2LV： 40.6mm×103mm×78mm
IES2301SL-8GT-2LV, IES2300SL-16GT-2LV： 40.6mm×150mm×120mm
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
IEC 61000-4-5 (Surge), Level 3
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
