End of Life

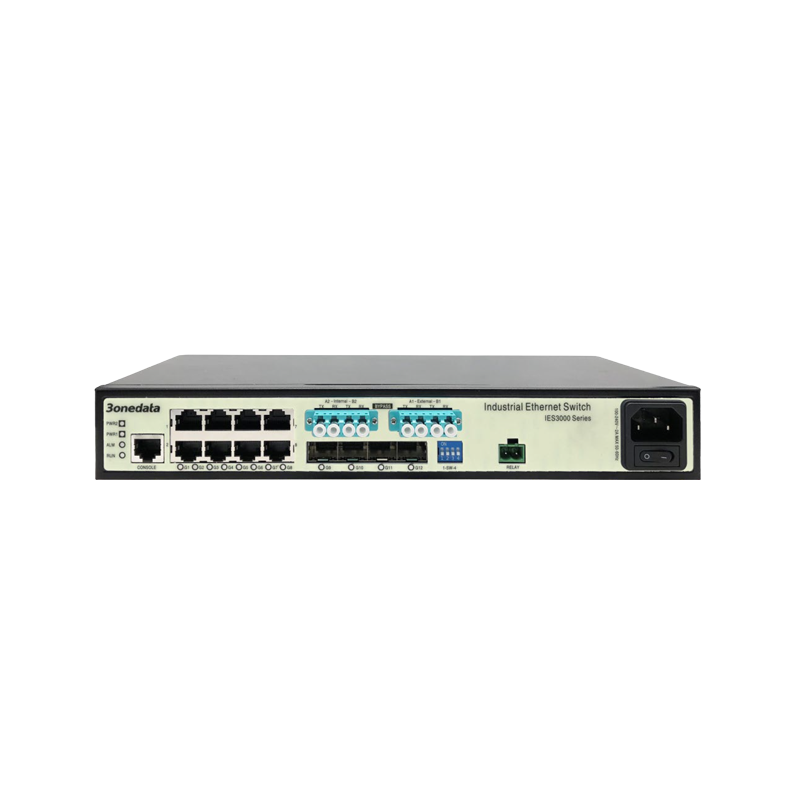

IES3000-8GT4GS-2BP-2P48
4*1000M SFP (SFP slot) + 8*10/100/1000Base-T(X) (RJ45), dual power supply: 48VDC(12~48 VDC) with by-pass function
IES3000 Serisi
Rack Mounting Endüstriyel 12-port Full Gigabit Managed Bypass Ethernet Switch
- 8 x Gigabit copper port (opsiyonel PoE), 4 adet Gigabit SFP slot ve 2 adet Bypass desteği
- ERPS, RSTP ve STP ring network protokollerini destekler
- SW-Ring patentli teknolojisi; ağ hatası durumunda < 20 ms otomatik toparlanma süresi
- SNMP ve IPv6 management desteği
- Dual power supply redundancy, opsiyonel AC/DC power supply
- -40~75°C geniş çalışma sıcaklık aralığı destekler
IES3000 serisi, endüstriyel 12 port full Gigabit managed Bypass Ethernet switch modellerinden oluşur. Ürün; Gigabit copper port (opsiyonel PoE), Gigabit SFP slot ve 2 adet Bypass desteği sunar. Farklı uygulama senaryolarına uygun olacak şekilde rack mounting yapısını destekler.
Network management system; ERPS, STP/RSTP/MSTP ring network protocol, 802.1Q VLAN, QoS, IGMP Static Multicast, LLDP, Port Trunking, Port Mirroring, IPv6 Management gibi çok sayıda protokol ve standardı destekler. Ayrıca Port Configuration, Port Statistics, Access Control, 802.1X Authentication, Network Diagnosis, Rapid Configuration, Online Upgrading gibi kapsamlı yönetim fonksiyonlarına sahiptir. CLI, WEB, Telnet ve SNMP erişim yöntemleriyle kolay ve kullanıcı dostu yönetim imkânı sunar.
Cihazın içinde iki bağımsız power supply devresi bulunur; bunlardan biri arızalansa bile cihaz normal şekilde çalışmaya devam eder. DIP switch üzerinden factory defaults geri yüklenebilir. Power supply veya bir portta link hatası oluştuğunda ALARM göstergesi yanar ve röleye bağlı alarm cihazı uyarı üretir, bu da sahada hızlı müdahale sağlar. Donanım fanless yapıdadır, düşük güç tüketir, geniş sıcaklık ve geniş voltaj aralığını destekler. Zorlu EMC gereksinimleri için test edilmiştir ve akıllı şebeke, raylı sistemler, akıllı şehir uygulamaları, güvenli şehir çözümleri, yenilenebilir enerji sistemleri, akıllı üretim gibi birçok endüstriyel alanda yaygın şekilde kullanılabilir.
| Model | Açıklama |
|---|---|
| IES3000-8GT4GS-2BP-2P48 | 4*1000M SFP (SFP slot) + 8*10/100/1000Base-T(X) (RJ45), dual power supply: 48VDC(12~48 VDC) with by-pass function, rack mounting -40~75℃ operating temperature |
| IES3000-8GT4GS-2BP-2P220 | 4*1000M SFP (SFP slot) + 8*10/100/1000Base-T(X) (RJ45), dual power supply: 220VAC with by-pass function, rack mounting -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
G.8032 Standard for ERPS
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE 802.1p for Class of Service
IEEE 802.1X for 802.1X authentication
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
IEEE 802.3af for PoE
IEEE 802.3at for PoE+
Management
SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, DHCP Client, File Management, Log Management, Port Statistics, SYSLOG management
Security
Classification of User Permissions, Anti-attack Control, ACL, 802.1X Authentication, Port Alarm, Power Supply Alarm, Storm Suppression, SSHD Configuration, Telnet Configuration, HTTPS Configuration
Switch Function
802.1Q Vlan, Static/Dynamic Port Aggregation, Bandwidth Management, Flow Control, Port Isolation
Unicast / Multicast
Static Multicast, GMRP, IGMP-Snooping
Redundancy Protocol
Ring, STP/RSTP/MSTP
Fault Diagnosis
Ping, Traceroute, Port Loopback
Time Management
SNTP
PoE
Maximum power of PoE port: 30W
PoE power supply pin: V+, V+, V- and V- correspond to 1, 2, 3 and 6
Interface
Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning
SFP slot: 1000Base-SFP
Flange interface: 2*4LC-LC, single mode fiber, supports Bypass
Console port: CLI command line management port (RS-232), RJ45
Alarm port: 2-pin 5.08mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity is 0.3A/125VAC or 1A/30VDC
LED Indicator
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
Switch Property
Transmission mode: store and forward
MAC address: 8K
Packet buffer size: 4Mbit
Backplane bandwidth: 24G
Switch time delay: <10μs
Power Requirement
Power supply range:
AC power supply product: 220VAC (100~24VAC);
DC power supply product: 48VDC (12~48VDC);
PoE product: 48VDC
Built-in dual power supply redundancy support 3.0A over-current protection
Power Consumption
IES3000-8GT4GS-2BP-2P220:
No-load: 5.9W@220VAC
Full-load: 11.6W@220VAC
Environmental Limit
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%～ 95% (no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: rack mounting
Weight: 1.6kg
Dimension (W x H x D): 290mm×44mm×174.8mm
Industrial Standard
IEC61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
IEC61000-4-4 (EFT, electrical fast transient), Level 3
Power supply: ±2kV
Signal: ±1kV
IEC61000-4-5 (Surge), Level 3
Power supply: differential mode±1kV, common mode±2kV
Signal: differential mode±1kV, common mode±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS
