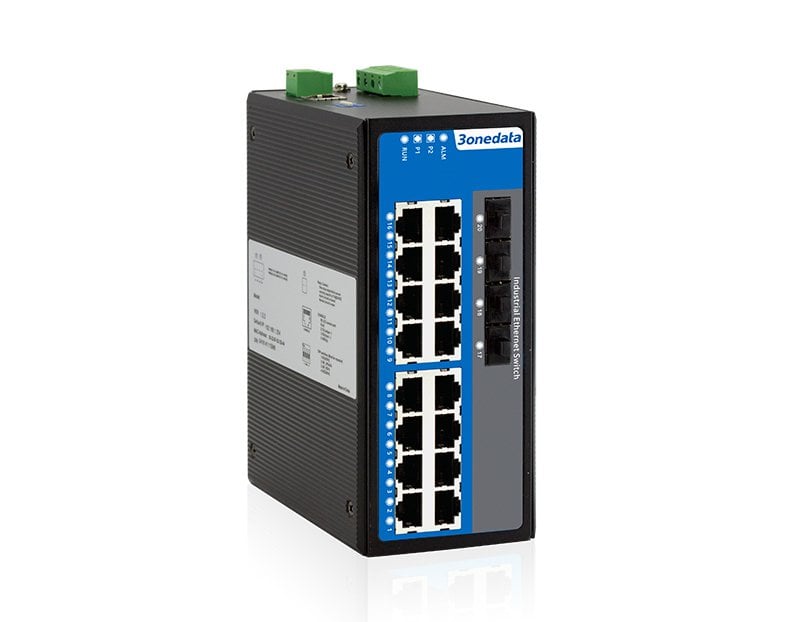

IES3020G-4GS
4*1000M SFP(SFP slot) + 16*10/100/1000Base-T(X) (RJ45), dual power supply: 12~48VDC
- Support 4 Gigabit fiber ports (SFP slots), 16 Gigabit copper ports
- Support dual power supply input, input voltage: 12~48VDC, nonpolarity, reverse polarity protection
- Support -40~75℃ wide operating temperature range
IES3012G, 16/20 port full Gigabit Layer 2 yönetilemez endüstriyel ethernet anahtarlarıdır. Donanım, fansız, düşük güç tüketimi, geniş çalışma sıcaklık aralığında ve EMC özellikleri ile endüstriyel standart testlerini geçmiştir. Demiryolu geçişi, akıllı şehir, güvenli şehir, enerji, havacılık, askeri proje ve diğer endüstriyel alanlarda yaygın olarak kullanılabilir.
| Toplam Port Sayısı | : | 20 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100/1000BaseT(X) | : | 16 |
| 1000Base SFP | : | 4 |
|
Standard &Protocol
|
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X
|
| Interface |
Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning SFP slot: 1000Base-SFP
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 16K Packet buffer size: 12Mbit Backplane bandwidth: 56G Switch time delay: <10μs
|
|
Power Requirement |
12~48VDC, 4-pin 7.62mm pitch terminal blocks dual power supply redundancy, reverse polarity protection, nonpolarity
|
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 70mm×160mm×130mm Weight: ≤1.08kg
|
|
Industrial Standard |
IEC 61000-4-2 (ESD) ，Level 3 IEC 61000-4-4 (EFT), Level 3 IEC 61000-4-5 (Surge), Level 3 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
