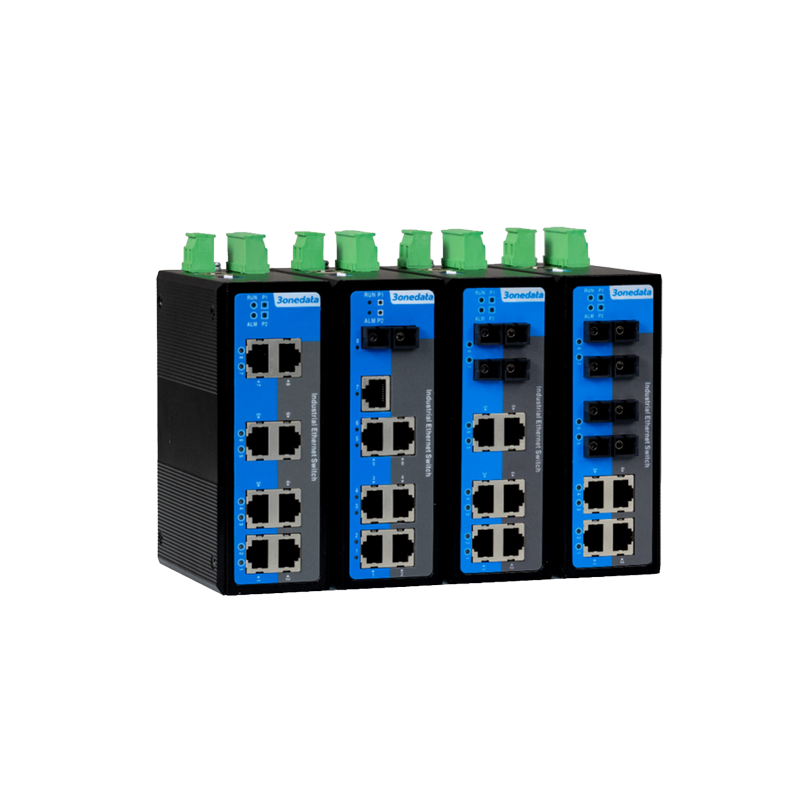

IES318-4T4F-P220 (MM, SC)
4*10/100Base-T(X) RJ45 + 4*100M SC (multi-mode, 2KM), single power supply 85~264VAC/DC
IES318 Serisi
Unmanaged 8 Port Ethernet Data Switch
- 4 adet 100M Ethernet copper port ve 4 adet 100M Ethernet port destekler (opsiyonel fiber/copper)
- Relay alarm output desteği
- 9~60VDC dual power input ve non-polarity power supply desteği
- 220VAC/DC power supply input destekler
- -40~75 °C geniş sıcaklık aralığında çalışır
IES318 serisi, 8 port 100M Layer 2 unmanaged industrial Ethernet switch modellerinden oluşur. Seri toplam 8 ürün sunar ve 100M copper port ile 100M fiber port seçeneklerini destekler. Wall mounting veya DIN-Rail mounting ile kurulabilir, böylece farklı uygulama senaryolarına uyum sağlar.
DC power supply yapısı iki bağımsız devreden oluşur; biri arızalansa bile cihaz çalışmaya devam eder. DIP switch üzerinden port alarm ve power alarm fonksiyonları kullanılabilir. Güç kaynağı veya bir portta link hatası olduğunda ALARM göstergesi yanar ve röleye bağlı alarm cihazı uyarı üretir, bu da sahada hızlı arıza tespiti sağlar. Donanım fanless yapıdadır, düşük güç tüketir, geniş sıcaklık ve geniş voltaj aralığını destekler. Zorlu EMC gereksinimlerine sahip endüstriyel ortamlara uygundur ve akıllı şebeke, raylı sistemler, akıllı şehir uygulamaları, güvenli şehir çözümleri, yenilenebilir enerji sistemleri, akıllı üretim gibi birçok endüstriyel alanda kullanılabilir.
| Model | Açıklama |
|---|---|
| IES318-4T4F-2P48 (MM, SC) | Unmanaged, 4*10/100Base-T(X) RJ45 + 4*100M SC (multi-mode, 2KM), dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-4T4F-2P48 (MM, ST) | Unmanaged, 4*10/100Base-T(X) RJ45 + 4*100M ST (multi-mode, 2KM), dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-4T4F-2P48 (SM, SC) | Unmanaged, 4*10/100Base-T(X) RJ45 + 4*100M SC (single-mode, 20KM), dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-4T4F-2P48 (SM, ST) | Unmanaged, 4*10/100Base-T(X) RJ45 + 4*100M ST (single-mode, 20KM), dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-4T4F-P220 (MM, SC) | Unmanaged, 4*10/100Base-T(X) RJ45 + 4*100M SC (multi-mode, 2KM), single power supply 85~264VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-4T4F-P220 (MM, ST) | Unmanaged, 4*10/100Base-T(X) RJ45 + 4*100M ST (multi-mode, 2KM), single power supply 85~264VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-4T4F-P220 (SM, SC) | Unmanaged, 4*10/100Base-T(X) RJ45 + 4*100M SC (single-mode, 20KM), single power supply 85~264VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-4T4F-P220 (SM, ST) | Unmanaged, 4*10/100Base-T(X) RJ45 + 4*100M ST (single-mode, 20KM), single power supply 85~264VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-6T2F-2P48 (MM, SC) | Unmanaged, 6*10/100Base-T(X) RJ45 + 2*100M SC (multi-mode, 2KM), dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-6T2F-2P48 (MM, ST) | Unmanaged, 6*10/100Base-T(X) RJ45 + 2*100M ST (multi-mode, 2KM), dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-6T2F-2P48 (SM, SC) | Unmanaged, 6*10/100Base-T(X) RJ45 + 2*100M SC (single-mode, 20KM), dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-6T2F-2P48 (SM, ST) | Unmanaged, 6*10/100Base-T(X) RJ45 + 2*100M ST (single-mode, 20KM), dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-6T2F-P220 (MM,SC) | Unmanaged, 6*10/100Base-T(X) RJ45 + 2*100M SC (multi-mode, 2KM), single power supply 85~264VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-6T2F-P220 (MM,ST) | Unmanaged, 6*10/100Base-T(X) RJ45 + 2*100M ST (multi-mode, 2KM), single power supply 85~264VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-6T2F-P220 (SM,SC) | Unmanaged, 6*10/100Base-T(X) RJ45 + 2*100M SC (single-mode, 20KM), single power supply 85~264VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-6T2F-P220 (SM,ST) | Unmanaged, 6*10/100Base-T(X) RJ45 + 2*100M ST (single-mode, 20KM), single power supply 85~264VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-7T1F-2P48 (MM,SC) | Unmanaged, 7*10/100Base-T(X) RJ45 + 1*100M SC (multi-mode, 2KM), dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-7T1F-2P48 (MM,ST) | Unmanaged, 7*10/100Base-T(X) RJ45 + 1*100M ST (multi-mode, 2KM), dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-7T1F-2P48 (SM,SC) | Unmanaged, 7*10/100Base-T(X) RJ45 + 1*100M SC (single-mode, 20KM), dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-7T1F-2P48 (SM,ST) | Unmanaged, 7*10/100Base-T(X) RJ45 + 1*100M ST (single-mode, 20KM), dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-7T1F-P220 (MM,SC) | Unmanaged, 7*10/100Base-T(X) RJ45 + 1*100M SC (multi-mode, 2KM), single power supply 85~264VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-7T1F-P220 (MM,ST) | Unmanaged, 7*10/100Base-T(X) RJ45 + 1*100M ST (multi-mode, 2KM), single power supply 85~264VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-7T1F-P220 (SM,SC) | Unmanaged, 7*10/100Base-T(X) RJ45 + 1*100M SC (single-mode, 20KM), single power supply 85~264VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-7T1F-P220 (SM,ST) | Unmanaged, 7*10/100Base-T(X) RJ45 + 1*100M ST (single-mode, 20KM), single power supply 85~264VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-8T-2P48 | Unmanaged, 8*10/100Base-T(X) RJ45, dual power supply 9~60VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES318-8T-P220 | Unmanaged, 8*10/100Base-T(X) RJ45, single power supply 85~264VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-X
Interface
Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode Self-Adaption, MDI/ MDI-X Autotunning
Fiber port: 100Base-X, optional SC/ST/FC
Alarm port: 2-pin 7.62mm pitch terminal blocks, supports 1 relay alarm output, and the current load capacity is 1A@24VDC or 0.5A@120VAC
Indicator
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
Switching Property
Transmission mode: store and forward
MAC address: 2K
Buffer: 1Mbit
Backplane bandwidth: 1.6G
Switch time delay: <10μs
Power Supply
DC power: 12/24/48VDC (9~60VDC), with dual power supplies, built-in overcurrent protection, supports nonpolarity
AC power: 220 VAC/DC (85~264VAC/DC), with built-in overcurrent protection
Power Consumption
|
Model |
No-load |
Full-load |
|
IES318-4T4F-2P48 |
3.8W@48VDC |
4.3W@48VDC |
|
IES318-4T4F-P220 |
4.2W@220.6VAC |
4.7W@221VAC |
|
IES318-6T2F-2P48 |
2.2W@48VDC |
3.0W@48VDC |
|
IES318-6T2F-P220 |
2.6W@220.4VAC |
3.3W@220VAC |
|
IES318-7T1F-2P48 |
0.9W@48VDC |
1.9W@48VDC |
|
IES318-7T1F-P220 |
2.1W@220VAC |
2.8W@220VAC |
|
IES318-8T-2P48 |
0.9W@48VDC |
1.9W@48VDC |
|
IES318-8T-P220 |
1.2W@220VAC |
2.0W@220VAC |
Working Environment
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP40 protection, high-strength corrugated metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 53mm×138mm×110mm
Weight: 670g
AC Product Industrial Standard
IEC 61000-4-2 (ESD), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT), Level3
Power supply: ±2kV
Ethernet port: ±1kV
Relay: ±2kV
IEC 61000-4-5 (Surge), Level 3
Power supply: common mode ±2kV, differential mode ±1kV
Ethernet port: common mode ±2kV, differential mode ±1kV
Relay: common mode ±2kV, differential mode ±1kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
DC Product Industrial Standard
IEC 61000-4-2 (ESD), Level 4
Air discharge: ± 15kV
Contact discharge: ±8kV
IEC 61000-4-4 (EFT), Level 4
Power supply: ±4kV
Ethernet port: ±2kV
Relay: ±4kV
IEC 61000-4-5 (Surge), Level 4
Power supply: common mode±4kV, differential mode±2kV
Ethernet port: common mode±4kV, differential mode±2kV
Relay: common mode ±4kV, differential mode±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
