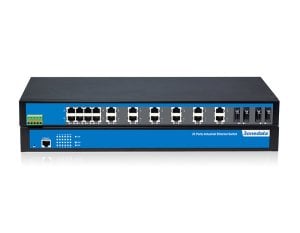

IES5024-8F (MM,SC)
8*100Base-FX (Multi-mode, SC, 2KM) + 16-port 10/100Base-T(X) (RJ45), single power supply: 100～240VAC/DC
- Toplam 24 adet bakır ve fiber port kombinasyonları
- SW-Ring patentli teknoloji: single ring, coupling ring, chain, Dual-homing, otomatik ağ arızası kurtarma süresi < 20ms
- 100-240VAC besleme
- -40~75℃ çalışma sıcaklık aralığı

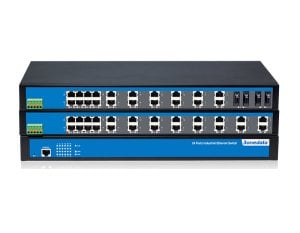

IES5024 serisi, 24 port 100M Layer 2 yönetilebilir endüstriyel ethernet anahtarlardır. Ürün serisi, 100M bakır portlar ve 100M fiber kombinasyonlarını içeren modellere sahiptir.
Ağ yönetim sistemi, STP / RSTP, 802.1Q VLAN, QoS, IGMP statik çok noktaya yayın, Port Trunking, Port Mirroring gibi çeşitli ağ protokollerini ve endüstriyel standartları destekler. Ayrıca port konfigürasyonu, port istatistikleri ve erişim dahil olmak üzere eksiksiz yönetim işlevlerine sahiptir. CLI, WEB, Telnet, SNMP ve diğer erişim yöntemlerini destekler.
Donanım fansızdır, düşük güç tüketimine sahiptir ve geniş çalışma sıcaklık aralığında çalışabilir. EMC için endüstriyel standart testlerini geçmiştir. Demiryolu taşımacılığı, akıllı şehir, güvenli şehir, yenilenebilir enerji, havacılık, askeri projeler ve diğer endüstriyel alanlarda yaygın olarak kullanılır.
| Model | Açıklama |
|---|---|
| IES5024 | 24*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-2F (MM,SC) | 2*100Base-FX ( Multi-mode, SC/ST/FC, 2KM) + 22-port 10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-2F (MM,ST) | |
| IES5024-2F (SM,SC) | 2*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 22-port 10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-2F (SM,ST) | |
| IES5024-4F (MM,SC) | 4*100Base-FX ( Multi-mode, SC/ST/FC, 2KM) + 20* 10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-4F (MM,ST) | |
| IES5024-4F (SM,SC) | 4*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 20* 10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-4F (SM,ST) | |
| IES5024-8F (MM,SC) | 8*100Base-FX ( Multi-mode, SC/ST/FC, 2KM) + 16* 10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-8F (MM,ST) | |
| IES5024-8F (SM,SC) | 8*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 16* 10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-8F (SM,ST) | |
| IES5024-12F (MM,SC) | 12*100Base-FX ( Multi-mode, SC/ST/FC, 2KM) +12*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-12F (MM,ST) | |
| IES5024-12F (SM,SC) | 12*100Base-FX (Single-mode, SC/ST/FC, 20KM) +12*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-12F (SM,ST) | |
| IES5024-16F (MM,SC) | 16*100Base-FX ( Multi-mode, SC/ST/FC, 2KM) + 8*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-16F (MM,ST) | |
| IES5024-16F (SM,SC) | 16*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 8*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-16F (SM,ST) |
| Toplam Port Sayısı | : | 24 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 16 |
| 100BaseFX SFP | : | 8 |
|
Standard &Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for Class of Service
|
| Management |
SNMP v1/v2c Centralized Management of Equipment, RMON, Port Mirroring, QoS, DHCP Server, DHCP Client, File Management, Port Statistics, Console/Telnet/WEB Management
|
| Security |
Classification of User Permissions, Mac Port Lock, E-mail Alarm, Relay Alarm
|
| Switch Function |
802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control
|
|
Unicast / Multicast
|
Static Multicast, GMRP, IGMP-Snooping |
|
Redundancy Protocol
|
SW-Ring, STP/RSTP
|
| Time Management |
SNTP
|
| Interface |
Copper port: 10Base-T/100Base-TX, RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX Console port: CLI command line management port (RS-232), RJ45 Alarm port: 2-pin 5.08mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 2A@250VDC
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 3Mbit Backplane bandwidth: 12.8G Switch time delay: < 10μs
|
|
Power Requirement |
100~240VAC/DC
|
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP30 protection, metal Installation: 19 inches 1U rack mounting Dimension (W x H x D): 441.6mm×44.6mm×207.9mm
|
|
Industrial Standard |
IEC61000-4-2 (ESD), Level 4 Air discharge: ±15kV Contact discharge: ±8kV IEC61000-4-4 (EFT), Level 4 Power supply: ±4kV Ethernet interface: ±2kV Relay: ±4kV IEC61000-4-5 (Surge), Level 4 Power supply: common mode ±4kV, differential mode ±2kV Ethernet interface: ±4kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
