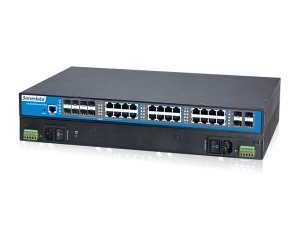

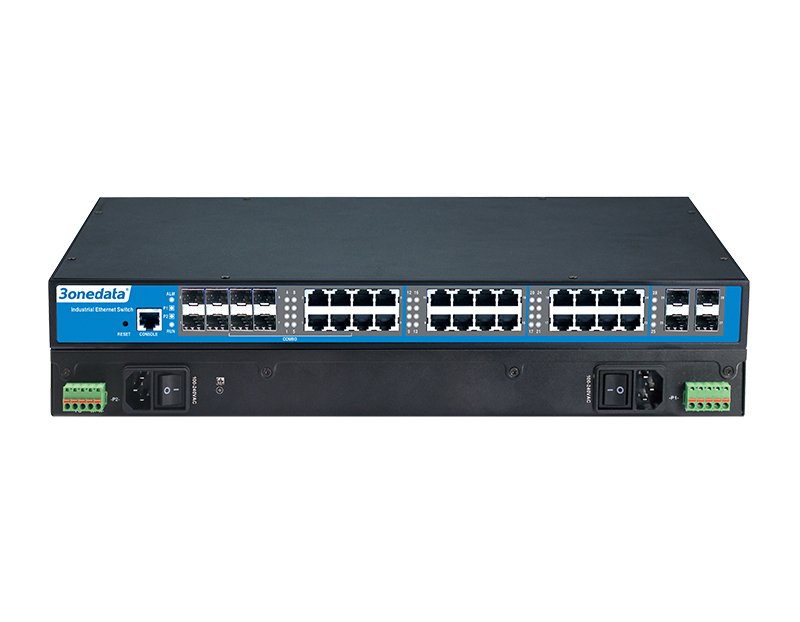

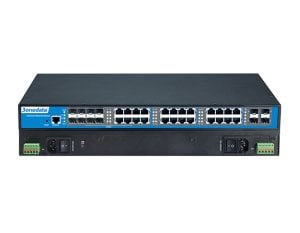

IES5028G-4GS-8GC
16-port 10/100/1000Base-T(X)+8-port Gigabit combo+4 port1000M SFP(SFP slot), dual power supply:100～240VAC/DC
- 4 Gigabit Fiber port (SFP Slot), 8 Gigabit Combo (SFP slot or RJ45) ve 16 Gigabit bakır port
- SW-Ring patentli teknoloji, single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
- 100-240VAC/DC besleme
- -40~75℃ çalışma sıcaklık aralığı
| Toplam Port Sayısı | : | 28 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100/1000BaseT(X) | : | 16 |
| 1000Base SFP | : | 4 |
| Combo Port | : | 8 |
|
Standard & Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for Class of Service IEEE 802.1X for 802.1X Authentication IEEE 802.1AB for LLDP IEEE 802.3ad for LACP
|
| Management |
SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, DHCP Client, File Management, Log Management, Port Statistics |
| Security |
Classification of User Permissions, Anti-attack Control, ACL, 802.1X Authentication, Port Alarm, Power Supply Alarm, E-mail Alarm, Storm Suppression, SSHD Configuration, Telnet Configuration, HTTPS Configuration |
| Switch Function |
802.1Q Vlan, Static/Dynamic Port Aggregation, Bandwidth Management, Flow Control, Port Isolation
|
|
Unicast / Multicast
|
Static Multicast, GMRP, IGMP-Snooping |
|
Redundancy Protocol
|
SW-Ring, STP/RSTP/MSTP
|
| Fault Diagnosis |
Ping, Traceroute, Port Loopback
|
| Time Management |
SNTP
|
| Interface |
Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning SFP slot: 1000Base-SFP Combo port: 10/100/1000Base-T(X) or 1000Base-SFP Console port: CLI command line management port (RS-232), RJ45 Alarm port: 2-pin 5.08mm pitch terminal blocks, support 2 relay alarm output, current carrying capacity 5A@30VDC or 10A@125VAC
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 16K Packet buffer size: 12Mbit Backplane bandwidth: 56G Switch time delay: < 10μs
|
|
Power Requirement |
100~240VAC/DC Support 2 AC power supply input Support 8A overcurrent protection AC input terminal block: single phase socket with rocker switch
|
|
Power Consumption
|
No-load: 20.3W@220VAC Full-load: 25.0W@220VAC |
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP30 protection, metal Installation: 19-inch 1U rack mounting Weight: 3900g Dimension (W x H x D): 440mm×43mm×285mm
|
|
Industrial Standard |
IEC 61000-4-2 (ESD), Level 4 IEC 61000-4-4 (EFT), Level 4 IEC 61000-4-5 (Surge), Level 4 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS, UL61010 |
