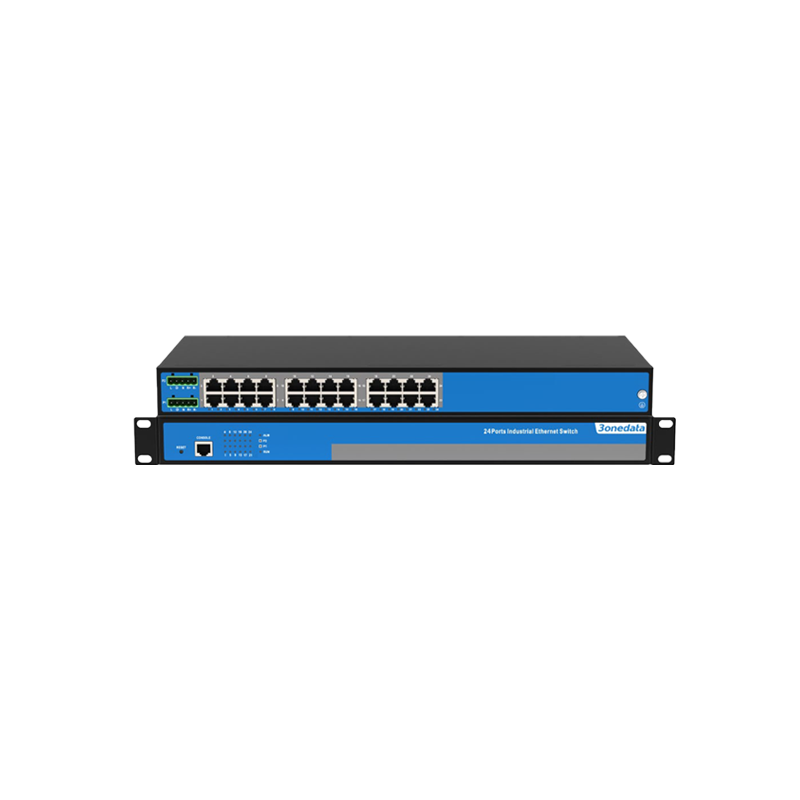

IES5100-20T4F-2HV (SM,ST)
20*10/100Base-T(X) RJ45 + 4*100M ST (single-mode, 20KM), dual power supply 110VAC/DC, 220VAC/DC (85~264VAC/DC)
IES5100 Serisi
19-inch 1U Rack Montajı 24-Port Layer 2 Managed Endüstriyel Ethernet Switch
- 24 x 10/100 Mbps Ethernet portunu destekler (opsiyonel fiber veya bakır port seçenekleri mevcuttur)
- Patentli Ring (halka) yedeklilik teknolojisini benimser; single ring, coupling ring, chain ring, Dual-homing ring ağ topolojilerini destekler.
- Ağ arızası durumunda otomatik ağ kurtarma süresi <50ms
- Modbus TCP protokolünü destekler; bu sayede client, switch'in durumunu ve bilgilerini okuyarak entegre izleme ve yönetim gerçekleştirebilir
- Opsiyonel DC güç girişi (18–72 VDC) veya AC güç girişi (85–264 VAC/VDC) desteği sunar ve çift yedekli güç kaynağı ile çalışabilir
- -40°C ile +75°C arasındaki geniş çalışma sıcaklığı aralığını destekler
- IP40 koruma sınıfına sahiptir
IES5100 Series, 24 portlu Layer 2 Managed Industrial Ethernet Switch ürünleridir. Bu seri, 100M copper port ve 100M fiber port seçenekleri sunar. Farklı fiber/copper port konfigürasyonları seçilebilir. Opsiyonel olarak 18–72 VDC veya 85–264 VAC/DC power supply desteği sunar ve rack-mount yapısını benimseyerek farklı uygulama sahalarının gereksinimlerini karşılar.
RESET button, cihazın yeniden başlatılmasını ve factory default ayarlarına döndürülmesini sağlar. Giriş power supply yapısı, iki bağımsız power supply circuit’inden oluşur ve bir güç kaynağı arızalansa dahi cihazın normal çalışmasını garanti eder. Power supply veya port üzerinde link failure oluştuğunda ALM indicator yanar ve alarm üretir; aynı zamanda relay’e bağlı alarm cihazı devreye girerek hızlı saha arıza tespiti sağlar.
Donanım yapısı; fanless, low power consumption ve wide temperature design özelliklerine sahiptir. Zorlu EMC gereksinimlerine sahip endüstriyel ortamlar için tasarlanmış olup, sıkı endüstriyel standartlar testlerinden başarıyla geçmiştir. Akıllı şebeke, enerji depolama, yenilenebilir enerji, akıllı madencilik, akıllı otoyol, akıllı üretim ve diğer endüstriyel uygulama alanlarında yaygın olarak kullanılabilir.
| Model | Açıklama |
|---|---|
| IES5100-24T-2LV | Layer 2, 24*10/100Base-T(X) RJ45, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5100-24T-2HV | Layer 2, 24*10/100Base-T(X) RJ45, dual power supply 110VAC/DC, 220VAC/DC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5100-22T2F-2LV (MM,SC) | Layer 2, 22*10/100Base-T(X) RJ45 + 2*100M SC (multi-mode, 2KM), dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5100-22T2F-2LV (MM,ST) | Layer 2, 22*10/100Base-T(X) RJ45 + 2*100M ST (multi-mode, 2KM), dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5100-22T2F-2LV (SM,SC) | Layer 2, 22*10/100Base-T(X) RJ45 + 2*100M SC (single-mode, 20KM), dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5100-22T2F-2LV (SM,ST) | Layer 2, 22*10/100Base-T(X) RJ45 + 2*100M ST (single-mode, 20KM), dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5100-22T2F-2HV (MM,SC) | Layer 2, 22*10/100Base-T(X) RJ45 + 2*100M SC (multi-mode, 2KM), dual power supply 110VAC/DC, 220VAC/DC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5100-22T2F-2HV (MM,ST) | Layer 2, 22*10/100Base-T(X) RJ45 + 2*100M ST (multi-mode, 2KM), dual power supply 110VAC/DC, 220VAC/DC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5100-22T2F-2HV (SM,SC) | Layer 2, 22*10/100Base-T(X) RJ45 + 2*100M SC (single-mode, 20KM), dual power supply 110VAC/DC, 220VAC/DC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5100-22T2F-2HV (SM,ST) | Layer 2, 22*10/100Base-T(X) RJ45 + 2*100M ST (single-mode, 20KM), dual power supply 110VAC/DC, 220VAC/DC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5100-20T4F-2LV (MM,SC) | Layer 2, 20*10/100Base-T(X) RJ45 + 4*100M SC (multi-mode, 2KM), dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5100-20T4F-2LV (MM,ST) | Layer 2, 20*10/100Base-T(X) RJ45 + 4*100M ST (multi-mode, 2KM), dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5100-20T4F-2LV (SM,SC) | Layer 2, 20*10/100Base-T(X) RJ45 + 4*100M SC (single-mode, 20KM), dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5100-20T4F-2LV (SM,ST) | Layer 2, 20*10/100Base-T(X) RJ45 + 4*100M ST (single-mode, 20KM), dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5100-20T4F-2HV (MM,SC) | Layer 2, 20*10/100Base-T(X) RJ45 + 4*100M SC (multi-mode, 2KM), dual power supply 110VAC/DC, 220VAC/DC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5100-20T4F-2HV (MM,ST) | Layer 2, 20*10/100Base-T(X) RJ45 + 4*100M ST (multi-mode, 2KM), dual power supply 110VAC/DC, 220VAC/DC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5100-20T4F-2HV (SM,SC) | Layer 2, 20*10/100Base-T(X) RJ45 + 4*100M SC (single-mode, 20KM), dual power supply 110VAC/DC, 220VAC/DC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5100-20T4F-2HV (SM,ST) | Layer 2, 20*10/100Base-T(X) RJ45 + 4*100M ST (single-mode, 20KM), dual power supply 110VAC/DC, 220VAC/DC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5100-24F-2LV (MM,SC) | Layer 2, 24*100M SC (multi-mode, 2KM), dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5100-24F-2LV (MM,ST) | Layer 2, 24*100M ST (multi-mode, 2KM), dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5100-24F-2LV (SM,SC) | Layer 2, 24*100M SC (single-mode, 20KM), dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5100-24F-2LV (SM,ST) | Layer 2, 24*100M ST (single-mode, 20KM), dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5100-24F-2HV (MM,SC)/a> | 'Layer 2, 24*100M SC (multi-mode, 2KM), dual power supply 110VAC/DC, 220VAC/DC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5100-24F-2HV (MM,ST) | Layer 2, 24*100M ST (multi-mode, 2KM), dual power supply 110VAC/DC, 220VAC/DC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5100-24F-2HV (SM,SC) | Layer 2, 24*100M SC (single-mode, 20KM), dual power supply 110VAC/DC, 220VAC/DC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5100-24F-2HV (SM,ST) | Layer 2, 24*100M ST (single-mode, 20KM), dual power supply 110VAC/DC, 220VAC/DC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1X for 802.1X Authentication
IEEE 802.1AB for LLDP
Management
SNMP v1/v2c/v3, Telnet/SSH configuration, Port Setting, Port Rate Limit, Port Mirroring, Port Statistics, Static MAC, LLDP, DHCP Server, QoS, Modbus TCP, Configuration File Management, Software Upgrade, log Information, Syslog Server
Security
User configuration, port loop detection, 802.1X authentication/Radius server, port/power alarm, utilization alarm and mail alarm
Switch Function
802.1Q VLAN, link aggregation, flow control, storm control
Unicast / Multicast
Multicast filtering, IGMP Snooping, dynamic multicast, MAC information
Redundancy Technology
Ring, STP/RSTP
Troubleshooting
Ping
Time Management
SNTP Client, Time Zone Configuration
Interface
100M copper port: 10/100Base-T(X) self-adaption, RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/ MDI-X Autotunning
100M fiber port: 100Base-FX, SC connector
CONSOLE port: CLI command line management port(RS-232), RJ45
Relay: support 2 relay alarm outputs, and adopt 2 5-pin 5.08mm pitch terminal blocks, relay occupies the right 2 pins, the current carrying capacity is 1A@30VDC or 0.3A@125VAC
Indicator
Power indicator, running indicator, alarm indicator, interface indicator
Switch Property
Transmission mode: store and forward
MAC address: 16K
Packet buffer size: 4Mbit
Backplane bandwidth: 12.8Gbps
Switch delay: <10μs
Power Supply
IES5100-24T-2LV, IES5100-22T2F-2LV, IES5100-20T4F-2LV, IES5100-24F-2LV
Input voltage: 24VDC/48VDC (18~72VDC)
Power supply quantity: dual power supply redundancy
Connection method: 2 5-pin 5.08mm pitch terminal blocks (includes 3-pin power supply on the left side)
Connection protection: non-polarity
IES5100-24T-2HV, IES5100-22T2F-2HV, IES5100-20T4F-2HV, IES5100-24F-2HV
Input voltage: 110VAC/DC, 220VAC/DC (85~264VAC/DC)
Power supply quantity: dual power supply redundancy
Connection method: 2 5-pin 5.08mm pitch terminal blocks (includes 3-pin power supply on the left side)
Power Consumption
IES5100-24T-2LV
No-load: 4.5W@48VDC
Full-load: 10.8W@48VDC
IES5100-24T-2HV
No-load: 7.3W@220VAC
Full-load: 11.7W@220VAC
IES5100-22T2F-2LV
No-load: 5.3W@48VDC
Full-load: 7.1W@48VDC
IES5100-22T2F-2HV
No-load: 8.4W@220VAC
Full-load: 11.9W@220VAC
IES5100-20T4F-2LV
No-load: 6.6W@48VDC
Full-load: 8.6W@48VDC
IES5100-20T4F-2HV
No-load: 10.0W@220VAC
Full-load: 12.2W@220VAC
IES5100-24F-2LV
No-load: 28.4W@48VDC
Full-load: 29.7W@48VDC
IES5100-24F-2HV
No-load: 20.7W@220VAC
Full-load: 22W@220VAC
Working Environment
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation)
Mechanical Structure
Housing: IP40 protection, metal
Installation: 19-inch 1U rack mounting
Dimension (W x H x D): 440mm×44mm×207mm (lugs are not included)
Weight:
IES5100-24T-2LV is 2.31kg
IES5100-24T-2HV is 2.62kg
IES5100-24F-2LV is 2.42kg
IES5100-24F-2HV is 2.659kg
Industrial Standard
IEC 61000-4-2 (ESD, electronic static discharge), Level 4
Contact discharge: ±8kV
Air discharge: ± 15kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4
Power supply: ±4kV
Copper port: ±2kV
Relay: ±4kV
IEC 61000-4-5 (Surge), Level 4
Power supply: differential mode±2kV, common mode±4kV
Copper port: differential mode±2kV, common mode±4kV
Relay: differential mode±2kV, common mode±4kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-31
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
