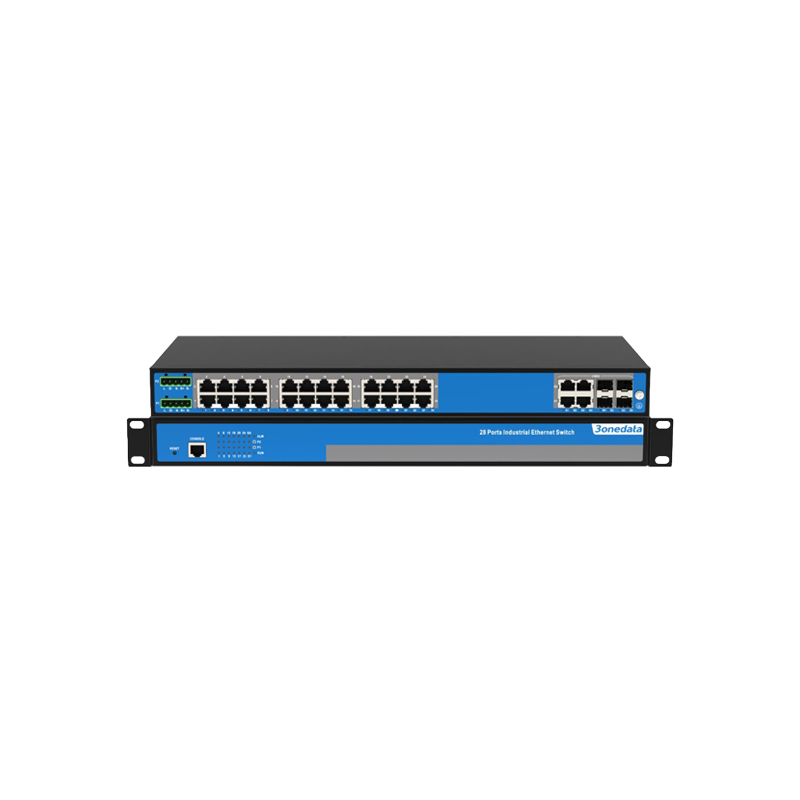

IES5200-22T2F4GC-2HV (SM, ST)
22*10/100Base-T(X) RJ45 + 2*100M ST (single-mode, 20KM) + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC)
IES5200 Serisi
19-inch 1U Rack Montajı 28-port 100M/Gigabit Layer 2 Managed Endüstriyel Ethernet Switch
- 8/16/20/22/24 x 100M copper port, 2/4/8/16 x 100M fiber port ve 4 x Gigabit COMBO port destekler (COMBO portlar için Gigabit RJ45 veya Gigabit SFP slot seçilebilir)
- Ring patentli teknoloji; single ring, coupling ring, chain, Dual-homing topolojilerini destekler, ağ hatası otomatik toparlanma süresi < 50 ms
- MRP network redundancy desteği; ağ güvenilirliğini artırır, yeniden yapılandırma süresi ≤ 200 ms
- Modbus TCP protokol desteği; client’ın switch bilgilerini okumasını sağlar ve entegre izleme & yönetimi kolaylaştırır
- 2 x 24/48VDC (18–72VDC) veya 2 x 110/220VAC (85–264VAC/DC) redundant power input
- -40~75°C geniş çalışma sıcaklık aralığı
- IP40 koruma seviyesi
IES5200 serisi, 28 port 100M/Gigabit Layer 2 managed industrial Ethernet switch modellerinden oluşur. Seri; 100M copper port, 100M fiber port ve Gigabit COMBO port seçenekleri sunar. Copper portlar, karşı uçtaki cihazla auto-negotiation üzerinden port hızı ve duplex modunu otomatik anlaşabilir. 18~72VDC veya 85~264VAC/DC power supply seçeneklerini destekler ve rack montaj yapısı sayesinde farklı saha kurulum gereksinimlerine uyum sağlar.
Network management system; IPv4, VLAN, STP/RSTP/MSTP, ERPS, DHCP, LLDP, IGMP Snooping, QoS, Modbus TCP Monitoring, Port Trunking, Port Mirroring gibi geniş bir protokol ve endüstri standardı setini destekler. Port configuration, port statistics, ACL, 802.1X authentication, network diagnosis, rapid configuration ve online upgrade gibi kapsamlı yönetim fonksiyonları sunar. CLI, WEB, Telnet, SNMP ve SSH erişim yöntemleri desteklenir, kullanıcı dostu arayüz tasarımıyla kolay kullanım sağlar.
Cihaz üzerindeki RESET butonu yeniden başlatma ve factory defaults geri yükleme işlemlerini destekler. Power supply yapısı iki bağımsız devreden oluşur; bunlardan biri arızalansa bile cihaz çalışmaya devam eder. Power veya port tarafında link hatası olduğunda ALM göstergesi yanar ve röle üzerinden alarm iletimi sağlar; bu da sahada hızlı troubleshooting imkânı sunar. Donanım fanless yapıdadır, düşük güç tüketimi ve geniş sıcaklık aralığıyla zorlu EMC gereksinimlerine uygun şekilde test edilmiştir. Akıllı şebeke, yeni enerji depolama sistemleri, yenilenebilir enerji uygulamaları, akıllı madencilik, akıllı otoyol sistemleri ve akıllı üretim gibi birçok endüstriyel uygulamada güvenle kullanılabilir.
| Model | Açıklama |
|---|---|
| IES5200-8T16F4GC-2LV (MM,SC) | Layer 2, 8*10/100Base-T(X) RJ45 + 16*100M SC (multi-mode, 2KM) + 4*1G Combo, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5200-8T16F4GC-2LV (MM, ST) | Layer 2, 8*10/100Base-T(X) RJ45 + 16*100M ST (multi-mode, 2KM) + 4*1G Combo, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5200-8T16F4GC-2LV (SM, SC) | Layer 2, 8*10/100Base-T(X) RJ45 + 16*100M SC (single-mode, 20KM) + 4*1G Combo, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5200-8T16F4GC-2LV (SM, ST) | Layer 2, 8*10/100Base-T(X) RJ45 + 16*100M ST (single-mode, 20KM) + 4*1G Combo, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5200-16T8F4GC-2LV (MM, SC) | Layer 2, 16*10/100Base-T(X) RJ45 + 8*100M SC (multi-mode, 2KM) + 4*1G Combo, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5200-16T8F4GC-2LV (MM, ST) | Layer 2, 16*10/100Base-T(X) RJ45 + 8*100M ST (multi-mode, 2KM) + 4*1G Combo, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5200-16T8F4GC-2LV (SM, SC) | Layer 2, 16*10/100Base-T(X) RJ45 + 8*100M SC (single-mode, 20KM) + 4*1G Combo, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5200-16T8F4GC-2LV (SM, ST) | Layer 2, 16*10/100Base-T(X) RJ45 + 8*100M ST (single-mode, 20KM) + 4*1G Combo, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5200-20T4F4GC-2LV (MM, SC) | Layer 2, 20*10/100Base-T(X) RJ45 + 4*100M SC (multi-mode, 2KM) + 4*1G Combo, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5200-20T4F4GC-2LV (MM, ST) | Layer 2, 20*10/100Base-T(X) RJ45 + 4*100M ST (multi-mode, 2KM) + 4*1G Combo, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5200-20T4F4GC-2LV (SM, SC) | Layer 2, 20*10/100Base-T(X) RJ45 + 4*100M SC (single-mode, 20KM) + 4*1G Combo, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5200-20T4F4GC-2LV (SM, ST) | Layer 2, 20*10/100Base-T(X) RJ45 + 4*100M ST (single-mode, 20KM) + 4*1G Combo, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5200-22T2F4GC-2LV (MM, SC) | Layer 2, 22*10/100Base-T(X) RJ45 + 2*100M SC (multi-mode, 2KM) + 4*1G Combo, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5200-22T2F4GC-2LV (MM, ST) | Layer 2, 22*10/100Base-T(X) RJ45 + 2*100M ST (multi-mode, 2KM) + 4*1G Combo, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5200-22T2F4GC-2LV (SM, SC) | Layer 2, 22*10/100Base-T(X) RJ45 + 2*100M SC (single-mode, 20KM) + 4*1G Combo, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5200-22T2F4GC-2LV (SM, ST) | Layer 2, 22*10/100Base-T(X) RJ45 + 2*100M ST (single-mode, 20KM) + 4*1G Combo, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5200-24T4GC-2LV | Layer 2, 24*10/100Base-T(X) RJ45 + 4*1G Combo, dual power supply 24/48VDC (18~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5200-8T16F4GC-2HV (MM, SC) | Layer 2, 8*10/100Base-T(X) RJ45 + 16*100M SC (multi-mode, 2KM) + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5200-8T16F4GC-2HV (MM, ST) | Layer 2, 8*10/100Base-T(X) RJ45 + 16*100M ST (multi-mode, 2KM) + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5200-8T16F4GC-2HV (SM, SC) | Layer 2, 8*10/100Base-T(X) RJ45 + 16*100M SC (single-mode, 20KM) + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5200-8T16F4GC-2HV (SM, ST) | Layer 2, 8*10/100Base-T(X) RJ45 + 16*100M ST (single-mode, 20KM) + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5200-16T8F4GC-2HV (MM, SC) | 'Layer 2, 16*10/100Base-T(X) RJ45 + 8*100M SC (multi-mode, 2KM) + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5200-16T8F4GC-2HV (MM, ST) | Layer 2, 16*10/100Base-T(X) RJ45 + 8*100M ST (multi-mode, 2KM) + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5200-16T8F4GC-2HV (SM, SC) | Layer 2, 16*10/100Base-T(X) RJ45 + 8*100M SC (single-mode, 20KM) + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5200-16T8F4GC-2HV (SM, ST) | Layer 2, 16*10/100Base-T(X) RJ45 + 8*100M ST (single-mode, 20KM) + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5200-20T4F4GC-2HV (MM, SC) | Layer 2, 20*10/100Base-T(X) RJ45 + 4*100M SC (multi-mode, 2KM) + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5200-20T4F4GC-2HV (MM, ST) | Layer 2, 20*10/100Base-T(X) RJ45 + 4*100M ST (multi-mode, 2KM) + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5200-20T4F4GC-2HV (SM, SC) | Layer 2, 20*10/100Base-T(X) RJ45 + 4*100M SC (single-mode, 20KM) + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5200-20T4F4GC-2HV (SM, ST) | Layer 2, 20*10/100Base-T(X) RJ45 + 4*100M ST (single-mode, 20KM) + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5200-22T2F4GC-2HV (MM, SC) | Layer 2, 22*10/100Base-T(X) RJ45 + 2*100M SC (multi-mode, 2KM) + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5200-22T2F4GC-2HV (MM, ST) | Layer 2, 22*10/100Base-T(X) RJ45 + 2*100M ST (multi-mode, 2KM) + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5200-22T2F4GC-2HV (SM, SC) | Layer 2, 22*10/100Base-T(X) RJ45 + 2*100M SC (single-mode, 20KM) + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5200-22T2F4GC-2HV (SM, ST) | Layer 2, 22*10/100Base-T(X) RJ45 + 2*100M ST (single-mode, 20KM) + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5200-24T4GC-2HV | Layer 2, 24*10/100Base-T(X) RJ45 + 4*1G Combo, dual power supply 110/220VAC (85~264VAC/DC), rack mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEC 62439-2 for MRP
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1X for 802.1X Authentication
IEEE 802.1AB for LLDP
Management
SNMP v1/v2c/v3, RMON, LLDP, PoE, QoS, DHCP Server, DHCP Snooping, port settings, dynamic/static MAC addresses, MAC/IPv4, storm suppression, user passwords, file management, log management, port statistics, link flapping protection, Modbus TCP monitoring
Security
User Privilege Classification, SSH Configuration, HTTPS Configuration, Access Control, SNMP, RMON, Port Limit Control, Port Security, NAS, ACL, Ethernet Services, RADIUS Server Authentication, TACACS + Server Authentication, Port Alarm, Temperature Alarm, Power Supply Alarm, MRP Alarm, Network Load Alarm
Switch Function
802.1Q VLAN, link aggregation, static aggregation, flow control, LACP
Unicast / Multicast
Multicast filtering, IGMP Snooping
Redundancy Technology
Ring, STP/RSTP/MSTP, ERPS
Troubleshooting
Log record, port mirroring, Ping, Traceroute, network cable diagnosis, SFP DDM
Time Management
NTP, Time Zone Configuration
Interface
100M copper port: 10/100Base-T(X) self-adaption, RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/ MDI-X
Autotunning
100M fiber port: 100Base-X, optional SC/ST/FC
Gigabit Combo port: 10/100/1000Base-T(X) self-adaptive RJ45,
1000Base-X SFP slot or forced 100Base-FX SFP slot
CONSOLE port: CLI command line management port(RS-232), RJ45
Relay: support 2 relay alarm outputs, adopt 2 5-pin 5.08mm pitch terminal blocks, the relay occupies the right 2 pins, the current carrying capacity is 1A@30VDC or 0.3A@125VAC
Indicator
Power indicator, running indicator, alarm indicator, interface indicator
Switch Property
Transmission mode: store and forward
MAC address: 8K
Cache: 4.1Mbit
Backplane bandwidth: 12.8Gbps
Switch delay: <10μs
Power Supply
Adopt 2 5-pin 5.08mm pitch terminal blocks (power supply occupies the left 3 pins)
DC Product
2 x 24/48VDC (18~72VDC), redundant power input, support non-polarity
AC product
2 x 110/220VAC (85~264VAC/DC) redundant power inputs
Power Consumption
IES5200-8T16F4GC-2LV No-load: 20.7W@48VDC / Full-load: 23.6W@48VDC
IES5200-8T16F4GC-2HV No-load: 21.2W@220VAC / Full-load: 23.8W@220VAC
IES5200-16T8F4GC-2LV No-load: 13.69W@48VDC / Full-load: 18.76W@48VDC
IES5200-16T8F4GC-2HV No-load: 13.1W@220VAC / Full-load: 16.7W@220VAC
IES5200-16T8F4GC-2HV No-load: 13.1W@220VAC / Full-load: 16.7W@220VAC
IES5200-20T4F4GC-2LV No-load: 10.5W@48VDC / Full-load: 15.6W@48VDC
IES5200-20T4F4GC-2HV No-load: 9.3W@220VAC / Full-load: 13.6W@220VAC
IES5200-22T2F4GC-2LV No-load: 7.5W@48VDC / Full-load: 11.8W@48VDC
IES5200-22T2F4GC-2HV No-load: 8.9W@220VAC / Full-load: 14.1W@220VAC
IES5200-24T4GC-2HV No-load: 6.2W@220VAC / Full-load: 12.3W@220VAC
Working Environment
Operating temperature: -40~75℃
Storage temperature: -40~85℃
elative humidity: 5%~95% (no condensation)
Mechanical Structure
Housing: IP40 protection, metal
Installation: 19-inch 1U rack mounting
Dimension (W x H x D): 440mm×44mm×207mm (lugs are not included)
Weight:
IES5200-8T16F4GC-2LV: 2.411kg
IES5200-8T16F4GC-2HV: 2.658kg
IES5200-16T8F4GC-2LV: 2.361kg
IES5200-16T8F4GC-2HV: 2.608kg
IES5200-20T4F4GC-2LV: 2.370kg
IES5200-20T4F4GC-2HV:2.671kg
IES5200-22T2F4GC-2LV:2.363kg
IES5200-22T2F4GC-2HV:2.682kg
IES5200-24T4GC-2LV: 2.223kg
IES5200-24T4GC-2HV: 2.566kg
Industrial Standard
IEC 61000-4-2 (ESD, electronic static discharge), Level 4
Contact discharge: ±8kV
Air discharge: ± 15kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4
Power supply: ±4kV
Copper port: ±2kV
Relay: ±4kV
IEC 61000-4-5 (Surge), Level 4
Power supply: differential mode±2kV, common mode±4kV
Copper port: differential mode±2kV, common mode±4kV
Relay: differential mode±2kV, common mode±4kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
