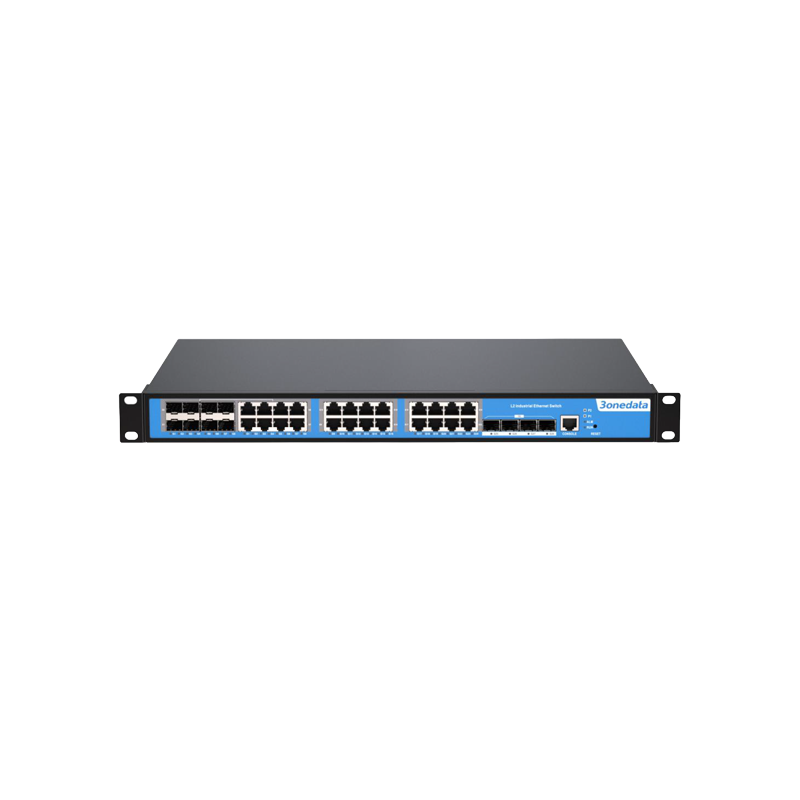

IES5328-16GT4GS8GC-2P220
Layer 2, 16*10/100/1000Base-T(X) RJ45 + 4*100/1000M SFP + 8*1000M Combo, dual power supply: 220VAC/DC (100~240VAC/DC)
IES5328 Serisi
28 Port Full Gigabit Layer 2 Managed Endüstriyel Ethernet Switch
- 4 x Gigabit fiber (SFP), 8 x Gigabit Combo (SFP veya RJ45) ve 16 x Gigabit bakır port
- Patentli ring teknolojisi; single ring, coupling ring, chain ve Dual-homing fonksiyonlarını destekler
- ERPS ve loop detection desteği ile ağ loop’larını etkili şekilde ortadan kaldırır ve data loop kaynaklı broadcast storm’u önler
- Opsiyonel dual AC/DC power supply; giriş voltajı: 100-240VAC/DC veya 48VDC veya 24VDC
- -40~75°C geniş çalışma sıcaklık aralığı
IES5328 serisi, 28 portlu Gigabit managed endüstriyel Ethernet switch modelleridir. Bu seri; Gigabit SFP slotu, Gigabit copper port ve Gigabit fiber/bakır multiplexing port sunar. 1U rack mount tasarımıyla çeşitli endüstriyel network gereksinimlerini karşılar.
Network management sistemi; ARP, ERPS, STP/RSTP/MSTP, 802.1Q VLAN, QoS, IGMP Snooping static multicast, LLDP, port trunking, port mirror vb. gibi çeşitli network protokollerini ve endüstri standartlarını destekler. Port configuration, port statistics, network diagnosis, rapid configuration, online upgrade, loop detection vb. kapsamlı yönetim fonksiyonlarını içerir. CLI, WEB, Telnet, SSH, SNMP ve diğer erişim yöntemleri desteklenir. Network management sistemi; kullanıcı dostu arayüz tasarımı ve kolay kullanım özellikleri ile iyi bir kullanıcı deneyimi sunar.
Bu ürün, opsiyonel dual AC/DC power supply destekler. Giriş power supply yapısı, iki bağımsız güç devresinden oluşur; böylece güç kaynaklarından biri arıza yaptığında cihazın normal çalışması devam eder. Power supply veya port tarafında link failure oluştuğunda ALARM LED’i aktif olur ve alarm verir; aynı zamanda röleye bağlı alarm cihazı hızlı saha arıza tespiti için alarm sinyali iletir. Donanım; fansız, düşük güç tüketimli, geniş sıcaklık ve geniş voltaj aralığına sahip tasarımıyla, zorlu EMC gereksinimleri olan endüstriyel ortamlarda kullanılabilir. Akıllı şebeke, raylı sistemler, akıllı şehir, güvenli şehir, yeni enerji, akıllı üretim ve diğer endüstriyel alanlarda yaygın olarak kullanılabilir.
| Model | Açıklama |
|---|---|
| IES5328-16GT4GS8GC-2P220 | Layer 2, 16*10/100/1000Base-T(X) RJ45 + 4*100/1000M SFP + 8*1000M Combo, dual power supply: 220VAC/DC (100~240VAC/DC), rack mounting, -40~75℃ operating temperature |
| IES5328-16GT4GS8GC-2P48 | Layer 2, 16*10/100/1000Base-T(X) RJ45 + 4*100/1000M SFP + 8*1000M Combo, dual power supply: 48VDC(36~72VDC), rack mounting, -40~75℃ operating temperature |
| IES5328-16GT4GS8GC-2P24 | Layer 2, 16*10/100/1000Base-T(X) RJ45 + 4*100/1000M SFP + 8*1000M Combo, dual power supply: 24VDC(18~72VDC), rack mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE802.1p for CoS
IEEE 802.1AB for LLDP
Management
SNMP v1/v2c/v3 Centralized Management Devices, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Log Management, Port Statistics, ARP
Security
User permission rating, ACL, port alarm, power alarm, storm suppression, Telnet configuration, SSH configuration, link flapping protection, DHCP snooping, loop detection
Switch Function
802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation
Unicast / Multicast
Static Multicast, Multicast Passthrough, GMRP, IGMP-Snooping
Redundancy Technology
Ring, STP/RSTP/MSTP, ERPS
Troubleshooting
Ping, Traceroute, Port Loopback, SFP Digital Diagnosis
Time Management
NTP
Interface
Gigabit copper port: 10/100/1000Base-T(X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self-adaption
Gigabit SFP: 100/1000Base-X self-adaptive SFP slot
Combo port: 10/100/1000Base-T(X) RJ45 or 100/1000Base-X SFP slot
Console port: CLI command line management port (RS-232), RJ45
Alarm port: 2 5-pin 5.08mm pitch terminal blocks(relay occupies 2 pins), support 2 relay alarm outputs, current loading capacity is 5A@30VDC or 10A@125VAC
Indicator
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
Switch Property
Transmission mode: store and forward
MAC address: 16K
Packet buffer size: 12Mbit
Backplane bandwidth: 56G
Time recovery: <20ms
Power Supply
IES5328-16GT4GS8GC-2P220
Input voltage: 220VAC (100~240VAC/DC)
Redundant power supply: support dual power supply redundancy
Overcurrent protection: 5A
Access terminal: single-phase socket with rocker switch
IES5328-16GT4GS8GC-2P48
Input voltage: 48VDC (36~72VDC)
Redundant power supply: support dual power supply redundancy
Overcurrent protection: 3A
Connection protection: anti-reverse connection
Access terminal: 5-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins)
IES5328-16GT4GS8GC-2P24
Input voltage: 24VDC (18~72VDC)
Redundant power supply: support dual power supply redundancy
Overcurrent protection: 3A
Connection protection: anti-reverse connection
Access terminal: 5-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins)
Power Consumption
No-load: 10.5W@220VAC
Full-load: 25.3W@220VAC
Working Environment
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP30 protection, metal
Installation: 19-inch 1U rack mounting
Weight: 3940g
Dimension (W x H x D): 440.4mm×44mm×304.8mm
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ± 8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 3
Power supply: ±2kV
Signal: ±1kV
IEC 61000-4-5 (Surge), Level 3
Power supply: differential mode±1kV, common mode±2kV
Signal: differential mode±1kV, common mode±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
