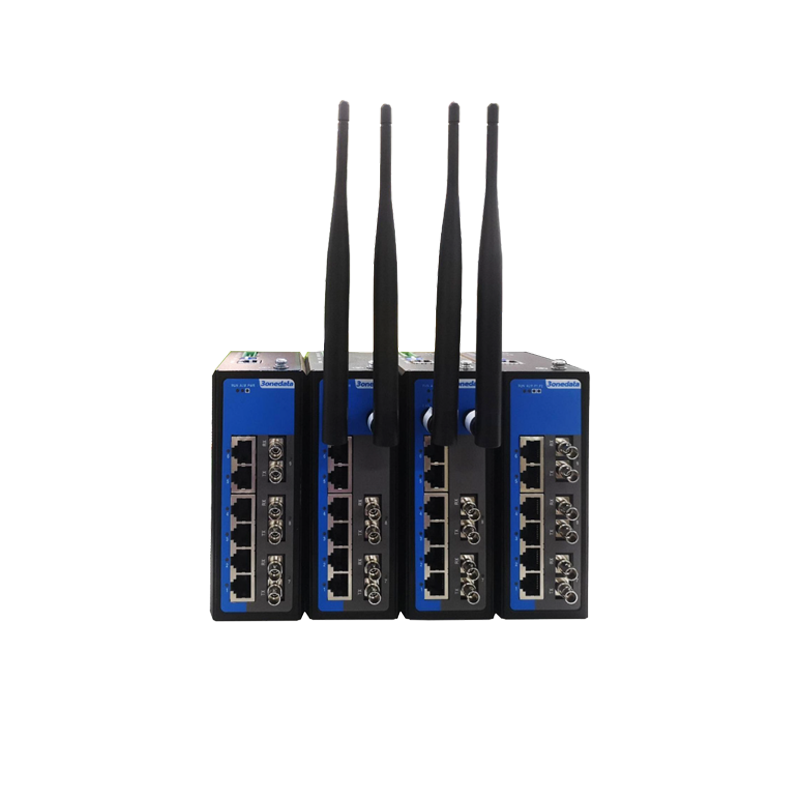

IES6100-6T3F-HV (MM,ST)
6*10/100Base-T(X) RJ45 + 3*100Base-FX ST (multi-mode 2KM), single power supply 220VAC/DC (85~264VAC/DC)
IES6100 Serisi
DIN-Rail/Duvar Montajı 8/9 Fiber/Copper Port Layer 2 Managed Endüstriyel Ethernet WiFi Switch
- 2 x 2.4G WiFi anten arayüzü destekler
- Wireless AP ve bridge çalışma modlarını destekler
- 2/3 x 100M fiber port (1×9) ve 6 x 100M copper port
- Ring patentli teknoloji; single ring, coupling ring, chain, Dual-homing topolojilerini destekler, ağ arızası toparlanma süresi < 20 ms
- DC dual power supply, giriş voltajı 9~60VDC; ayrıca 85~264VAC/DC power input desteği
- -40~75°C geniş çalışma sıcaklık aralığı
IES6100 serisi, 8/9 port fiber/copper Layer 2 managed endüstriyel Ethernet switch modellerinden oluşur. Seri; 100M copper port, fiber port, WiFi anten arayüzleri ve diğer çeşitli arayüz seçeneklerini destekler. Cihazlar, wall mounting veya DIN-Rail mounting ile kurulabilir ve farklı uygulama sahalarına kolaylıkla uyum sağlar.
Network management system; STP/RSTP, MRP, 802.1Q VLAN, QoS, LLDP, IGMP Snooping, Port Trunking, Port Mirroring, 802.1X, Modbus TCP gibi birçok protokol ve endüstri standardını destekler. Ayrıca wireless AP mode ve bridge mode desteği sunar. SNMP, DHCP Server, port configuration, port statistics, access control, network diagnosis, rapid configuration, online upgrading gibi kapsamlı yönetim fonksiyonlarına sahiptir. CLI, WEB, Telnet ve SNMP gibi erişim yöntemleri desteklenir ve kullanıcı dostu arayüz tasarımı ile kolay kullanım sağlar.
Bu seri port alarm fonksiyonunu destekler. DC power ürünleri iki bağımsız güç devresi içerir; güç kaynaklarından biri arızalansa bile cihaz çalışmaya devam eder. Power supply veya port tarafında link hatası oluştuğunda ALARM göstergesi yanar ve röle çıkışı üzerinden alarm iletimi yapılır, böylece sahada hızlı troubleshooting sağlanır. Donanım fanless yapıdadır, düşük güç tüketir; geniş sıcaklık ve voltaj aralığıyla çalışır ve zorlu EMC gereksinimleri için kapsamlı endüstriyel testlerden geçmiştir. Akıllı şehir uygulamaları, raylı sistemler, güvenli şehir çözümleri, yeni enerji sistemleri ve akıllı üretim gibi birçok endüstriyel alanda yaygın şekilde kullanılabilir.
| Model | Açıklama |
|---|---|
| IES6100-6T3F-2LV (MM,SC) | Layer 2, 6*10/100Base-T(X) RJ45 + 3*100Base-FX SC (multi-mode 2KM), dual power supply 12/24/48VDC(9-60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES6100-6T3F-2LV (MM,ST) | Layer 2, 6*10/100Base-T(X) RJ45 + 3*100Base-FX ST (multi-mode 2KM), dual power supply 12/24/48VDC(9-60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES6100-6T3F-2LV (SM,SC) | Layer 2, 6*10/100Base-T(X) RJ45 + 3*100Base-FX SC (single-mode 20KM), dual power supply 12/24/48VDC(9-60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES6100-6T3F-2LV (SM,ST) | Layer 2, 6*10/100Base-T(X) RJ45 + 3*100Base-FX ST (single-mode 20KM), dual power supply 12/24/48VDC(9-60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES6100-6T3F-HV (MM,SC) | Layer 2, 6*10/100Base-T(X) RJ45 + 3*100Base-FX SC (multi-mode 2KM), single power supply 220VAC/DC (85~264VAC/DC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES6100-6T3F-HV (MM,ST) | Layer 2, 6*10/100Base-T(X) RJ45 + 3*100Base-FX ST (multi-mode 2KM), single power supply 220VAC/DC (85~264VAC/DC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES6100-6T3F-HV (SM,SC) | Layer 2, 6*10/100Base-T(X) RJ45 + 3*100Base-FX SC (single-mode 20KM), single power supply 220VAC/DC (85~264VAC/DC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES6100-6T3F-HV (SM,ST) | Layer 2, 6*10/100Base-T(X) RJ45 + 3*100Base-FX ST (single-mode 20KM), single power supply 220VAC/DC (85~264VAC/DC), DIN-Rail mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.1X for 802.1X Authentication
Management
SNMP v1/v2c/v3 Centralized Management of Equipment, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Port Statistics
Security
Classification of User Permissions, Port Alarm, Power Alarm, IEEE802.1X, Threshold Alarm, Loop Protection
Switch Function
802.1Q VLAN, Static Port Aggregation, Bandwidth Management, Flow Control
Unicast / Multicast
Static Multicast, IGMP-Snooping
Redundancy Technology
Ring, STP/RSTP, MRP
Wireless
AP, bridge
Interface
100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/ MDI-X Autotunning
100M fiber port: 100Base-FX, 1×9 fiber port
Console port: CLI command line management port(RS-232), RJ45
Alarm port: 6-pin 5.08mm pitch terminal blocks (2 pins for relay), support 1 relay alarm output
Antenna interface: 2 WiFi antenna interfaces, RPSMA-K(Female)
Indicator
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
Switch Property
Transmission mode: store and forward MAC address: 8K Buffer: 1Mbit Backplane bandwidth: 7.6G Switch time delay: <10μs
Power Supply
DC power supply
The rated voltage is 12/24/48VDC(9-60VDC), dual power supplies, and support 6-pin 5.08mm pitch terminal with built-in overcurrent protection, power supplies occupy 4 pins
DC power supply
20VAC/DC (85~264VAC/DC), support 6-pin 5.08mm pitch terminal with built-in overcurrent protection, power supplies occupy 4 pins
Power Consumption
IES6100-6T2F-W2-2LV Full-load: 8.3W@24VDC
IES6100-6T2F-W2-2LV No-load: 7.2W@24VDC
Working Environment
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 53mm×138mm×110mm
Weight: 750g
Industrial Standard
DC products
IEC 61000-4-2 (ESD, electronic static discharge), Level 4
Air discharge: ± 15kV
Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4
Power supply: ±4kV
Ethernet port: ±2kV
Relay: ±4kV
IEC 61000-4-5 (Surge), Level 4
Power supply: common mode±4kV, differential mode±2kV
Ethernet copper port: ±4kV
AC products
IEC 61000-4-2 (ESD, electronic static discharge), Level 4
Air discharge: ± 15kV
Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
Power supply: ±2kV
Ethernet port: ±2kV
Relay: ±4kV
IEC 61000-4-5 (Surge), Level 3
Power supply: common mode±2kV, differential mode±1kV
Ethernet copper port: ±4kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
