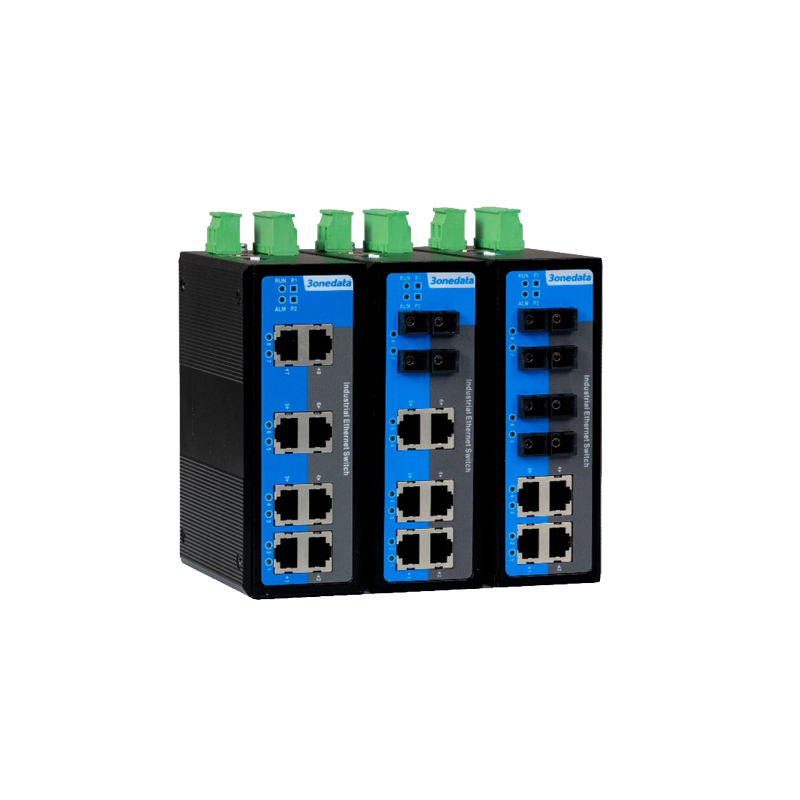

IES618-4F-2P48 (SM,ST)
4*10/100Base-T(X) RJ45 + 4*100M ST (single-mode, 20KM), dual power supply 12/24/48VDC (12~60VDC)
IES618 Serisi
8 Port Layer 2 Managed Endüstriyel Ethernet Switch
- 4 x 100M Ethernet copper port ve 4 x 100M Ethernet port (opsiyonel fiber/copper) destekler
- Ring patentli teknoloji; single ring, coupling ring, chain ring, Dual-homing topolojilerini destekler, ağ arızası otomatik toparlanma süresi ≤ 50 ms
- 12~60VDC redundant dual power supply input, non-polarity destekler
- 220VAC/DC power supply input desteği
- -40~75°C geniş çalışma sıcaklık aralığı
IES618 serisi Layer 2 managed endüstriyel Ethernet switch modellerinden oluşur. Seri, farklı bakır ve fiber port kombinasyonları sunan toplam 6 ürün içerir ve bu sayede çeşitli uygulama senaryolarının ihtiyaçlarını karşılar. Network management system; STP/RSTP, ERPS, 802.1Q VLAN, QoS, Port Trunking, Port Mirroring, LLDP, 802.1X gibi birçok ağ protokolünü ve endüstri standardını destekler. Ayrıca port configuration, port statistics, access control, network diagnosis, rapid configuration ve online upgrading gibi kapsamlı yönetim fonksiyonlarına sahiptir. CLI, WEB, Telnet ve SNMP gibi erişim yöntemlerini destekler ve kullanıcı dostu arayüz tasarımıyla kolay bir kullanım sunar.
DIP switch, cihazın factory defaults ayarlarına döndürülmesini sağlar. DC power supply veya port tarafında link hatası oluştuğunda ALM göstergesi yanar ve röle üzerinden alarm çıkışı verilir; bu da sahada hızlı troubleshooting yapılmasına yardımcı olur. Donanım fanless yapıdadır, düşük güç tüketir; geniş sıcaklık ve voltaj aralığıyla çalışır ve zorlu EMC gereksinimleri için kapsamlı endüstriyel testlerden geçmiştir. Akıllı şebeke, raylı sistemler, akıllı şehir uygulamaları, güvenli şehir çözümleri, yeni enerji sistemleri ve akıllı üretim gibi birçok endüstriyel alanda güvenle kullanılabilir.
| Model | Açıklama |
|---|---|
| IES618-2P48 | Layer 2, 8*10/100Base-T(X) RJ45, dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES618-P220 | Layer 2, 8*10/100Base-T(X) RJ45, single power supply 220VAC/DC (85~264VAC/DC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES618-2F-2P48 (MM,SC) | Layer 2, 6*10/100Base-T(X) RJ45 + 2*100M SC (multi-mode, 2KM), dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES618-2F-2P48 (MM,ST) | Layer 2, 6*10/100Base-T(X) RJ45 + 2*100M ST (multi-mode, 2KM), dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES618-2F-2P48 (SM,SC) | Layer 2, 6*10/100Base-T(X) RJ45 + 2*100M SC (single-mode, 20KM), dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES618-2F-2P48 (SM,ST) | Layer 2, 6*10/100Base-T(X) RJ45 + 2*100M ST (single-mode, 20KM), dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES618-2F-P220 (MM,SC) | Layer 2, 6*10/100Base-T(X) RJ45 + 2*100M SC (multi-mode, 2KM), single power supply 220VAC/DC (85~264VAC/DC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES618-2F-P220 (MM,ST) | Layer 2, 6*10/100Base-T(X) RJ45 + 2*100M ST (multi-mode, 2KM), single power supply 220VAC/DC (85~264VAC/DC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES618-2F-P220 (SM,SC) | Layer 2, 6*10/100Base-T(X) RJ45 + 2*100M SC (single-mode, 20KM), single power supply 220VAC/DC (85~264VAC/DC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES618-2F-P220 (SM,ST) | Layer 2, 6*10/100Base-T(X) RJ45 + 2*100M ST (single-mode, 20KM), single power supply 220VAC/DC (85~264VAC/DC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES618-4F-2P48 (MM,SC) | Layer 2, 4*10/100Base-T(X) RJ45 + 4*100M SC (multi-mode, 2KM), dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES618-4F-2P48 (MM,ST) | Layer 2, 4*10/100Base-T(X) RJ45 + 4*100M ST (multi-mode, 2KM), dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES618-4F-2P48 (SM,SC) | Layer 2, 4*10/100Base-T(X) RJ45 + 4*100M SC (single-mode, 20KM), dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES618-4F-2P48 (SM,ST) | Layer 2, 4*10/100Base-T(X) RJ45 + 4*100M ST (single-mode, 20KM), dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES618-4F-P220 (MM,SC) | Layer 2, 4*10/100Base-T(X) RJ45 + 4*100M SC (multi-mode, 2KM), single power supply 220VAC/DC (85~264VAC/DC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES618-4F-P220 (MM,ST) | Layer 2, 4*10/100Base-T(X) RJ45 + 4*100M ST (multi-mode, 2KM), single power supply 220VAC/DC (85~264VAC/DC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES618-4F-P220 (SM,SC) | Layer 2, 4*10/100Base-T(X) RJ45 + 4*100M SC (single-mode, 20KM), single power supply 220VAC/DC (85~264VAC/DC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES618-4F-P220 (SM,ST) | Layer 2, 4*10/100Base-T(X) RJ45 + 4*100M ST (single-mode, 20KM), single power supply 220VAC/DC (85~264VAC/DC), DIN-Rail mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.1X for 802.1X Authentication
ITU-T G.8032 for ERPS
Management
Console/Telnet/WEB management method, SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, LLDP, File Management, Port Statistics
Security
User privilege classification, Relay Alarm (Port Alarm and Power Alarm), IEEE802.1X, Threshold Alarm, Loop Protection
Switch Function
802.1Q VLAN, Static Port Aggregation, Bandwidth Management, Flow Control
Unicast / Multicast
IGMP Snooping
Redundancy Technology
SW-Ring, ERPS, STP/RSTP
Interface
Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/ MDI-X Autotunning
Fiber port: 100Base-FX, optional SC/ST/FC
Console port: CLI command line management port (RS-232), RJ45
Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current load capability is 1A@24VDC or 0.5A@120VAC
Indicator
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
Switch Property
Transmission mode: store and forward
MAC address: 16K
Buffer: 4Mbit
Backplane bandwidth: 5.6G
Switch time delay: <10μs
Power Supply
DC power: 12/24/48VDC (12~60VDC), redundant dual power input, built-in overcurrent protection, support non-polarity
AC power: 220 VAC/DC (85 ~ 264 VAC/DC), with built-in overcurrent protection
Power Consumption
|
Available Models |
No-load |
Full-load |
|
IES618-2P48 |
2.1W@48VDC |
2.8W@48VDC |
|
IES618-P220 |
2.6W@220VAC |
3.3W@220VAC |
|
IES618-2F-2P48 |
4.5W@48VDC |
5.2W@48VDC |
|
IES618-2F-P220 |
4.5W@220VAC |
5.1W@220VAC |
|
IES618-4F-2P48 |
5.7W@48VDC |
6.1W@48VDC |
|
IES618-4F-P220 |
5.7W@220VAC |
6.2W@220VAC |
Working Environment
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 0%～95% (no condensation)
Physical Characteristic
Housing: IP40 protection, high-strength corrugated metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 53mm×138mm×110mm
Weight: 670g
Industrial Standard of AC Product
IEC 61000-4-2 (ESD), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT)，Level3
Power supply: ±2kV
Ethernet port: ±1kV
Relay: ±2kV
IEC 61000-4-5 (Surge)，Level 3
Power supply: common mode±2kV, differential mode±1kV
Ethernet port: common mode±2kV, differential mode±1kV
Relay: common mode ±2kV, differential mode±1kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Industrial Standard of DC Product
IEC 61000-4-2 (ESD), Level 4
Air discharge: ± 15kV
Contact discharge: ±8kV
IEC 61000-4-4 (EFT)，Level4
Power supply: ±4kV
Ethernet port: ±2kV
Relay: ±4kV
IEC 61000-4-5 (Surge)，Level 4
Power supply: common mode±4kV, differential mode±2kV
Ethernet port: common mode±4kV, differential mode±2kV
Relay: common mode ±4kV, differential mode±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS, UL62368
