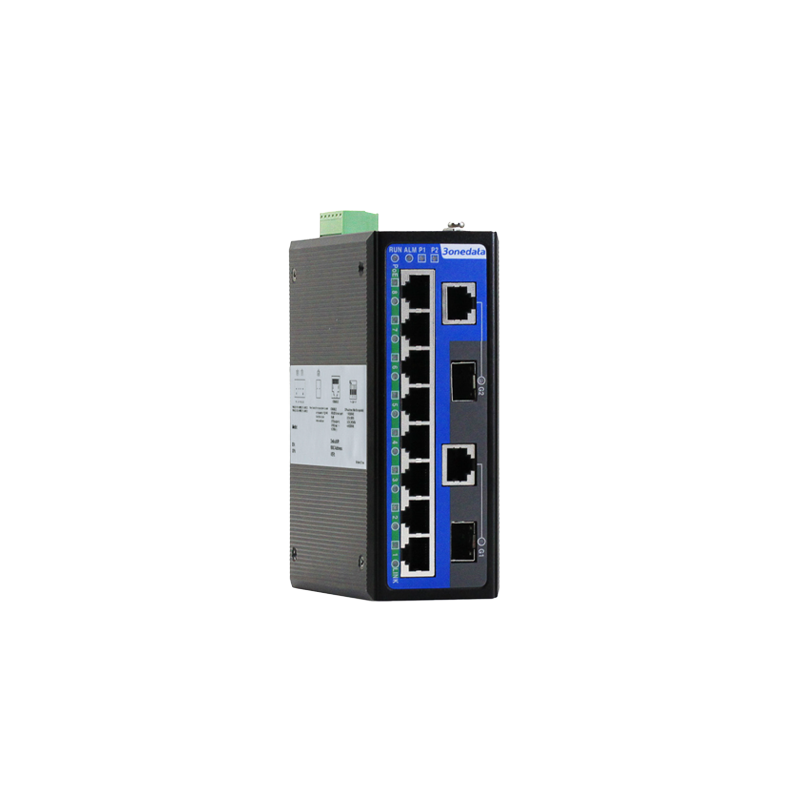

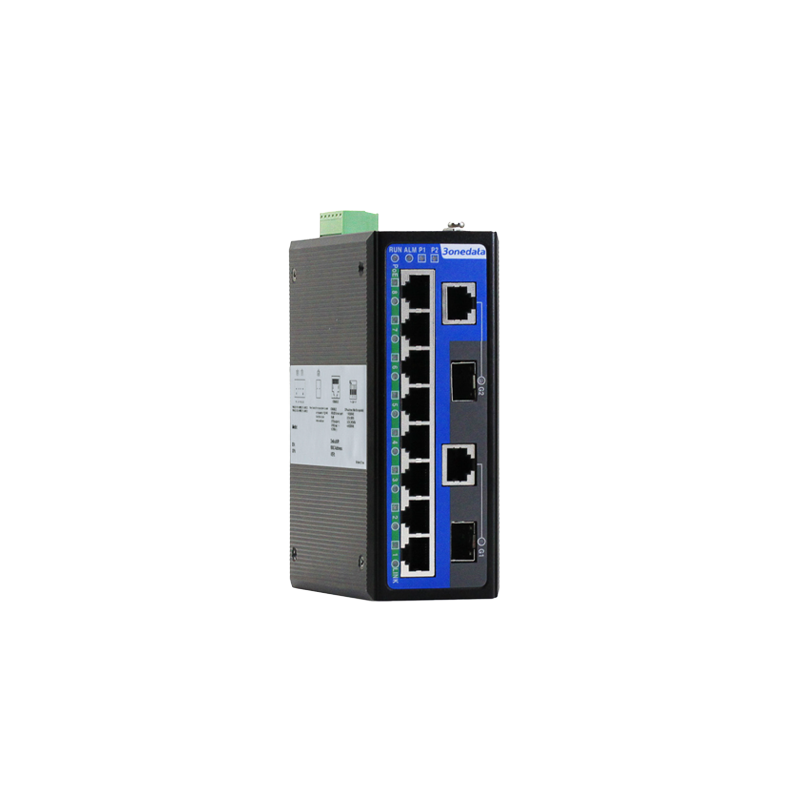

IES6210-8T2GC-P220
8*10/100Base-T(X) RJ45 + 2*1G Combo, single power supply 85~264VAC
IES6210 Serisi
6/10 Port Gigabit Layer 2 Managed Endüstriyel Network Switch
- 2 x Gigabit Combo port (SFP veya RJ45) ve 4/8 x 100M copper port (opsiyonel PoE)
- Tek bir PoE portunun maksimum çıkış gücü 30W
- SW-Ring patentli teknoloji; single ring, coupling ring, chain, Dual-homing topolojilerini destekler, ağ arızası otomatik toparlanma süresi < 20 ms
- Opsiyonel AC/DC power supply, ayrıca DC dual power supply redundancy desteği
- -40~75°C geniş çalışma sıcaklık aralığı
IES6210 serisi, 6/10 port 100M/Gigabit Layer 2 managed industrial Ethernet switch modellerinden oluşur. Seri; 100M copper port (opsiyonel PoE) ve Gigabit Combo port (SFP slot veya RJ45) sunar. PoE beslemesi IEEE802.3af/at protokol standartlarına uygundur. Cihazlar, DIN-Rail veya wall mounting seçenekleriyle farklı kurulum sahalarına uyum sağlar.
Network management system; STP/RSTP, 802.1Q VLAN, QoS, LLDP, PoE Configuration, IGMP Static Multicast, Port Trunking, Port Mirroring gibi birçok protokolü ve endüstri standardını destekler. Ayrıca port configuration, port statistics, access control, Modbus TCP Monitoring, network diagnosis, rapid configuration ve online upgrading gibi kapsamlı yönetim fonksiyonları sunar. CLI, WEB, Telnet ve SNMP erişim yöntemleri desteklenir ve kullanıcı dostu arayüz tasarımıyla kolay kullanım sağlar.
Seri, opsiyonel AC/DC power supply desteğine sahiptir. DC power supply yapısı iki bağımsız devreden oluşur; güç kaynaklarından biri arızalandığında cihaz çalışmaya devam eder. DIP switch, factory setting recovery fonksiyonunu destekler. Power supply veya port tarafında link hatası oluştuğunda ALM göstergesi yanar ve röle çıkışı üzerinden alarm bildirimi yapılır, bu da sahada hızlı troubleshooting imkânı sağlar. Donanım fanless yapıdadır, düşük güç tüketir, geniş sıcaklık ve voltaj aralığıyla zorlu EMC gereksinimlerine uygun olarak test edilmiştir. Akıllı şebeke, raylı sistemler, akıllı şehir uygulamaları, güvenli şehir çözümleri, yeni enerji sistemleri ve akıllı üretim gibi birçok endüstriyel alanda güvenle kullanılabilir.
| Model | Açıklama |
|---|---|
| IES6210-8T2GC-2P48 | Layer 2, 8*10/100Base-T(X) RJ45 + 2*1G Combo, dual power supply 12~48VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES6210-8T2GC-P220 | Layer 2, 8*10/100Base-T(X) RJ45 + 2*1G Combo, single power supply 85~264VAC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES6210-4T2GC-2P48 | Layer 2, 4*10/100Base-T(X) RJ45 + 2*1G Combo, dual power supply 12~48VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES6210-4T2GC-P220 | Layer 2, 4*10/100Base-T(X) RJ45 + 2*1G Combo, single power supply 85~264VAC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES6210-8P2GC-2P24-120W | Layer 2, 8*10/100Base-T(X) PoE (120W) RJ45 + 2*1G Combo, dual power supply 24VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES6210-8P2GC-2P48-120W | Layer 2, 8*10/100Base-T(X) PoE (120W) RJ45 + 2*1G Combo, dual power supply 44~55VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES6210-8P2GC-2P48-240W | Layer 2, 8*10/100Base-T(X) PoE (240W) RJ45 + 2*1G Combo, dual power supply 44~55VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES6210-4P2GC-2P24-60W | Layer 2, 4*10/100Base-T(X) PoE (60W) RJ45 + 2*1G Combo, dual power supply 24VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES6210-4P2GC-2P24-120W | Layer 2, 4*10/100Base-T(X) PoE (120W) RJ45 + 2*1G Combo, dual power supply 24VDC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES6210-4P2GC-2P48-120W | Layer 2, 4*10/100Base-T(X) PoE (120W) RJ45 + 2*1G Combo, dual power supply 44~55VDC, DIN-Rail mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.3ad for LACP
IEEE 802.3af for PoE
IEEE 802.3at for PoE+
GB/T 19582 for Modbus TCP
Management
SNMP v1/v2c Centralized Management of Equipment, Modbus TCP Monitoring, Port Mirroring, QoS, LLDP, DHCP Client, File Management, Port Statistics
Security
Classification of User Permissions, Port Alarm, Power Supply Alarm, Storm Suppression, SFP DDM
Switch Function
802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control
Unicast / Multicast
Static Multicast, IGMP-Snooping
Redundancy Protocol
SW-Ring, STP/RSTP
Time Management
SNTP
PoE
The maximum power of single PoE port: 30W
The power supply pin of PoE: V+, V-, V+, V- correspond to Pin 1, 2, 3, 6
Interface
100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
Combo port: 10/100/1000Base-T(X) or 1000Base-X
Console port: CLI command line management port (RS-232), RJ45
Alarm port: 6-pin 5.08mm pitch terminal blocks, including 2-pin alarm terminal blocks, support 1 relay alarm output, current carrying capacity is 1A@30VDC or 0.3A@125VAC
LED Indicator
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator, PoE Indicator (only for PoE products)
Switch Property
Transmission mode: store and forward
MAC address: 8K
Packet buffer size: 1Mbit
Backplane bandwidth: 7.6G
Switch time delay: <10μs
Power Requirement
Optional 24VDC, 48VDC or 220VAC, 6 pins 5.08mm pitch terminal blocks, including 4 pins power supply terminal blocks
DC dual power supply redundancy, anti-reverse connection
Power Consumption
No-load: ≤4.9W@48VDC
Full-load: ≤122.8W@48VDC
Environmental Limit
Operating temperature range: -40~75℃
Storage temperature range: -40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 53mm×138mm×110mm
Weight: ≤0.62kg
Industrial Standard
IEC 61000-4-2 (ESD), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT), Level 3
Power supply: ±2kV
Ethernet port: ±1kV
Relay: ±2kV
IEC 61000-4-5 (Surge), Level 3
Power supply: common mode±2kV, differential mode±1kV
Ethernet port: common mode±2kV, differential mode±1kV
Relay: common mode±2kV, differential mode±1kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS
