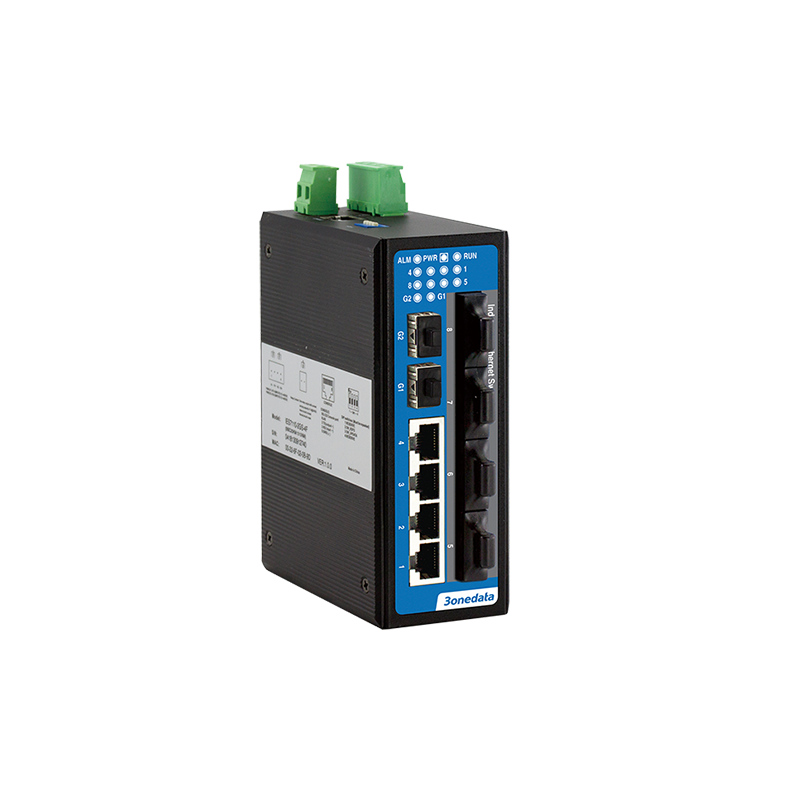

IES7110-4T4F2GS-P220 (SM,ST)
4*10/100Base-T(X) RJ45 + 4*100M ST (single-mode, 20KM) + 2*1000M SFP, single power supply 100~240 VAC/DC
IES7110 Serisi
DIN-Rail ya da Duvar Montajı 10 Port 100M/Gigabit Layer 2 Managed Endüstriyel Ethernet Switch
- 2 x Gigabit fiber port (SFP slot) ve 8 x opsiyonel 100M Ethernet fiber/copper port desteği sağlar.
- Ring patent technology kullanır; single ring, coupling ring, chain ring ve Dual-homing ring network fonksiyonlarını destekler. Ağ arızalarında otomatik kurtarma süresi < 50 ms’dir.
- Gigabit bandwidth, yüksek performans ve yüksek hız ile büyük miktarda video, ses ve veri iletimini mümkün kılar.
- DC Product, 12/24/48VDC (12~60VDC) giriş voltajı ile dual power input desteği sunar.
- AC Product, 100~240VAC/DC giriş voltajını destekler.
- -40 ~ 75°C geniş çalışma sıcaklığı aralığını destekler.
IES7110 serisi, 10 portlu 100M/Gigabit Layer 2 managed industrial Ethernet switch’lerden oluşur. Seri, toplam 6 ürün sunar ve 100M copper port, 100M fiber port ve Gigabit SFP slot dâhil olmak üzere çeşitli arayüzleri destekler. Farklı uygulama senaryolarının gereksinimlerini karşılamak için DIN-Rail mounting veya wall mounting montaj seçeneklerini benimser. Ağ yönetim sistemi; STP/RSTP, 802.1Q VLAN, QoS Function, LLDP, IGMP Snooping, Dynamic Multicast, Port Trunking, Port Mirroring ve 802.1X gibi çeşitli ağ protokolleri ve endüstriyel standartları destekler. Ayrıca Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading gibi kapsamlı yönetim fonksiyonlarına sahiptir ve CLI, WEB, Telnet, SNMP gibi erişim yöntemlerini destekler. Kullanıcı dostu arayüz tasarımı sayesinde kolay ve verimli bir kullanım deneyimi sunar.
DC power supply input, iki bağımsız güç devresinden oluşur ve bunlardan biri arızalansa bile cihazın normal çalışmasını garanti eder. DIP switch tasarımı sayesinde cihaz factory setting recovery işlemini destekler. DC power supply veya port bağlantı hatası oluştuğunda ALARM indicator yanar ve alarm gönderir; aynı zamanda röleye bağlı alarm cihazı da hızlı arıza tespiti için uyarı verir. Donanım, fanless, low power consumption, geniş sıcaklık ve voltaj aralığı tasarımına sahiptir ve zorlu EMC gereksinimlerine uygun endüstriyel standart testlerinden geçmiştir. Akıllı şebeke, raylı sistemler, akıllı şehir, güvenli şehir, yeni enerji, akıllı üretim ve diğer endüstriyel alanlarda yaygın olarak kullanılabilir.
| Model | Açıklama |
|---|---|
| IES7110-8T2GS-2P48 | Layer 2, 8*10/100Base-T(X) RJ45 + 2*1000M SFP, dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7110-6T2F2GS-2P48 (MM,SC) | Layer 2, 6*10/100Base-T(X) RJ45 + 2*100M SC (multi-mode, 2KM) + 2*1000M SFP, dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7110-6T2F2GS-2P48 (MM,ST) | Layer 2, 6*10/100Base-T(X) RJ45 + 2*100M ST (multi-mode, 2KM) + 2*1000M SFP, dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7110-6T2F2GS-2P48 (SM,SC) | Layer 2, 6*10/100Base-T(X) RJ45 + 2*100M SC (single-mode, 20KM) + 2*1000M SFP, dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7110-6T2F2GS-2P48 (SM,ST) | Layer 2, 6*10/100Base-T(X) RJ45 + 2*100M ST (single-mode, 20KM) + 2*1000M SFP, dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7110-4T4F2GS-2P48 (MM,SC) | Layer 2, 4*10/100Base-T(X) RJ45 + 4*100M SC (multi-mode, 2KM) + 2*1000M SFP, dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7110-4T4F2GS-2P48 (MM,ST) | Layer 2, 4*10/100Base-T(X) RJ45 + 4*100M ST (multi-mode, 2KM) + 2*1000M SFP, dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7110-4T4F2GS-2P48 (SM,SC) | Layer 2, 4*10/100Base-T(X) RJ45 + 4*100M SC (single-mode, 20KM) + 2*1000M SFP, dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7110-4T4F2GS-2P48 (SM,ST) | Layer 2, 4*10/100Base-T(X) RJ45 + 4*100M ST (single-mode, 20KM) + 2*1000M SFP, dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7110-8T2GS-P220 | Layer 2, 8*10/100Base-T(X) RJ45 + 2*1000M SFP, single power supply 100~240 VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES7110-6T2F2GS-P220 (MM,SC) | Layer 2, 6*10/100Base-T(X) RJ45 + 2*100M SC (multi-mode, 2KM) + 2*1000M SFP, single power supply 100~240 VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES7110-6T2F2GS-P220 (MM,ST) | Layer 2, 6*10/100Base-T(X) RJ45 + 2*100M ST (multi-mode, 2KM) + 2*1000M SFP, single power supply 100~240 VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES7110-6T2F2GS-P220 (SM,SC) | Layer 2, 6*10/100Base-T(X) RJ45 + 2*100M SC (single-mode, 20KM) + 2*1000M SFP, single power supply 100~240 VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES7110-6T2F2GS-P220 (SM,ST) | Layer 2, 6*10/100Base-T(X) RJ45 + 2*100M ST (single-mode, 20KM) + 2*1000M SFP, single power supply 100~240 VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES7110-4T4F2GS-P220 (MM,SC) | Layer 2, 4*10/100Base-T(X) RJ45 + 4*100M SC (multi-mode, 2KM) + 2*1000M SFP, single power supply 100~240 VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES7110-4T4F2GS-P220 (MM,ST) | Layer 2, 4*10/100Base-T(X) RJ45 + 4*100M ST (multi-mode, 2KM) + 2*1000M SFP, single power supply 100~240 VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES7110-4T4F2GS-P220 (SM,SC) | Layer 2, 4*10/100Base-T(X) RJ45 + 4*100M SC (single-mode, 20KM) + 2*1000M SFP, single power supply 100~240 VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES7110-4T4F2GS-P220 (SM,ST) | Layer 2, 4*10/100Base-T(X) RJ45 + 4*100M ST (single-mode, 20KM) + 2*1000M SFP, single power supply 100~240 VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.1X for 802.1X Authentication
Management
SNMP v1/v2c/v3 Centralized Management of Equipment, Port Mirroring, QoS, LLDP, DHCP Client, File Management, Port Statistics
Security
Classification of User Permissions, Port Alarm, Power Alarm, IEEE802.1X, Threshold Alarm, Loop Protection
Switch Function
802.1Q VLAN, Static Port Aggregation, Bandwidth Management, Flow Control
Unicast / Multicast
Dynamic MAC Multicast, IGMP-Snooping
Redundancy Technology
Ring, STP/RSTP
Interface
100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/ MDI-X Autotunning
100M fiber port: 100Base-FX, optional SC/ST/FC SFP slot: 1000Base-X SFP
Console port: CLI command line management port (RS-232), RJ45
Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output
Indicator
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
Switch Property
Transmission mode: store and forward
MAC address: 4K
Cache: 2Mbit
Backplane bandwidth: 9.6G
Switch time delay: <10μs
Power Supply
DC power: 12/24/48VDC (12~60VDC), adopt 4-pin 7.62mm pitch terminal blocks, redundant dual power input, built-in overcurrent protection, support non-polarity
AC power: 100~240 VAC/DC, with built-in 5.0A overcurrent protection
Power Consumption
IES7110-8T2GS-2P48:
No-load: 3.8W@48VDC
Full-load: 4.0W@48VDC
IES7110-8T2GS-P220:
No-load: 4.1W@220VAC
Full-load: 4.3W@220VAC
IES7110-4T4F2GS-2P48:
No-load: 7.0W@48VDC
Full-load: 8.6W@48VDC
IES7110-4T4F2GS-P220:
No-load: 6.8W@220VAC
Full-load: 8.0W@220VAC
IES7110-6T2F2GS-2P48:
No-load: 5.6W@48VDC
Full-load: 7.8W@48VDC
IES7110-6T2F2GS-P220:
No-load: 5.4W@220VAC
Full-load: 6.8W@220VAC
Working Environment
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%~95% (no condensation)
Mechanical Structure
Housing: IP40 protection, metal
Installation: DIN-Rail or wall Mounting
Dimension (W x H x D): 53mm×138mm×110mm
Weight: 641g
DC Product Industrial Standard
IEC 61000-4-2 (ESD, electronic static discharge), Level 4
Air discharge: ±15kV
Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4
Power supply: ±4kV
Ethernet port: ±2kV
IEC 61000-4-5 (Surge), Level 4
Power supply: common mode±4kV, differential mode±2kV
Ethernet port: common mode±4kV, differential mode±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
AC Product Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
Power supply: ±2kV
Ethernet port: ±1kV
IEC 61000-4-5 (Surge), Level 3
Power supply: common mode±2kV, differential mode±1kV
Ethernet port: common mode±2kV, differential mode±1kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
