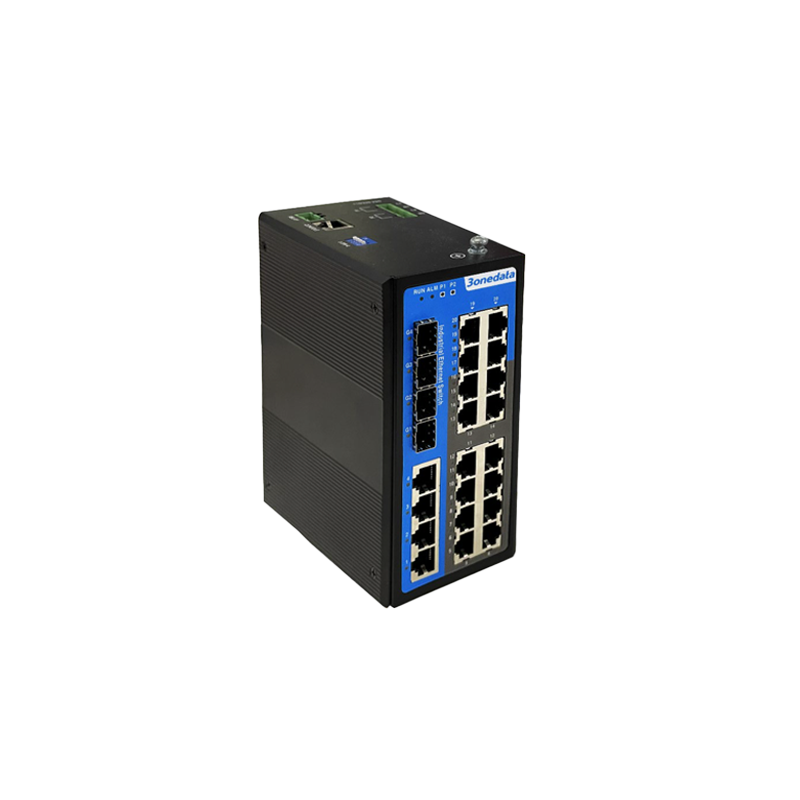

IES7120-12T4F4GS-2LV (MM,ST)
Layer 2, 12*10/100Base-T(X) RJ45 + 4*100M ST (multi-mode, 2KM) + 4*1000M SFP, dual power supply 12/24/48VDC (9~60VDC)
IES7120 Serisi
DIN-Rail ya da Duvar Montajı 20/24 Port 100M/Gigabit Layer 2 Managed Endüstriyel Ethernet Switch
- 12 x 100M copper port, 4 x 100M fiber port ve 4 x Gigabit SFP slot;
- 14 x 100M copper port, 2 x 100M fiber port ve 4 x Gigabit SFP slot;
- 16/20 x 100M copper port ve 4 x Gigabit SFP slot desteği sağlar.
- MRP Ring network desteği, <200ms tekrar konfigürasyon süresi
- Ring patented technology kullanır; single ring, coupling ring, chain ve Dual-homing fonksiyonlarını destekler.
- STP / RSTP / MSTP, ERPS, DHCP, VLAN, QoS, IGMP Snooping, LLDP, ACL ve SNMP gibi birçok ağ protokolü ve endüstri standardını destekler.
- DC ürün, 2 x 12/24/48VDC (9~60VDC) güç girişi, dual power supply redundancy ve anti-reverse connection desteği sunar.
- AC ürün, 1 x 110/220VAC/DC güç kaynağı girişini destekler.
- -40 ~ 75°C geniş çalışma sıcaklığı aralığını destekler.
IES7120 serisi, 20/24 portlu 100M/Gigabit Layer 2 managed industrial Ethernet switch’tir. Seri, 100M copper port, 100M fiber port ve Gigabit SFP slot destekleyen toplam 8 ürün sunar. Farklı uygulama senaryolarının gereksinimlerini karşılamak için DIN-Rail veya wall mounting montaj seçeneklerini destekler. Ağ yönetim sistemi IPv4, VLAN, STP/RSTP/MSTP, ERPS, MRP, DHCP, LLDP, IGMP Snooping, QoS, Modbus TCP monitoring gibi protokolleri destekler ve CLI, WEB, Telnet, SNMP, SSH üzerinden erişim sağlar.
DC power supply input, iki bağımsız güç devresinden oluşur ve bunlardan biri arızalansa bile cihazın normal çalışmasını sağlar. DIP switch tasarımı sayesinde cihaz factory setting recovery ve yeniden başlatma işlemlerini destekler. Güç kaynağı veya port bağlantı hatası oluştuğunda ALM indicator yanar ve alarm gönderir; aynı zamanda röleye bağlı alarm cihazı da uyarı vererek hızlı arıza tespiti sağlar. Donanım, fanless, low power consumption, geniş sıcaklık ve voltaj aralığı tasarımına sahiptir ve zorlu EMC gereksinimlerine uygun endüstriyel standart testlerinden geçmiştir. Akıllı şebeke, yeni enerji, raylı sistemler, akıllı üretim, akıllı şehir ve diğer endüstriyel alanlarda yaygın olarak kullanılabilir.
| Model | Açıklama |
|---|---|
| IES7120-12T4F4GS-2LV (MM,SC) | Layer 2, 12*10/100Base-T(X) RJ45 + 4*100M SC (multi-mode, 2KM) + 4*1000M SFP, dual power supply 12/24/48VDC (9~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-12T4F4GS-2LV (MM,ST) | Layer 2, 12*10/100Base-T(X) RJ45 + 4*100M ST (multi-mode, 2KM) + 4*1000M SFP, dual power supply 12/24/48VDC (9~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-12T4F4GS-2LV (SM,SC) | Layer 2, 12*10/100Base-T(X) RJ45 + 4*100M SC (single-mode, 20KM) + 4*1000M SFP, dual power supply 12/24/48VDC (9~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-12T4F4GS-2LV (SM,ST) | Layer 2, 12*10/100Base-T(X) RJ45 + 4*100M ST (single-mode, 20KM) + 4*1000M SFP, dual power supply 12/24/48VDC (9~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-14T2F4GS-2LV (MM,SC) | Layer 2, 14*10/100Base-T(X) RJ45 + 2*100M SC (multi-mode, 2KM) + 4*1000M SFP, dual power supply 12/24/48VDC (9~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-14T2F4GS-2LV (MM,ST) | Layer 2, 14*10/100Base-T(X) RJ45 + 2*100M ST (multi-mode, 2KM) + 4*1000M SFP, dual power supply 12/24/48VDC (9~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-14T2F4GS-2LV (SM,SC) | Layer 2, 14*10/100Base-T(X) RJ45 + 2*100M ST (single-mode, 20KM) + 4*1000M SFP, dual power supply 12/24/48VDC (9~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-14T2F4GS-2LV (SM,ST) | Layer 2, 4*10/100Base-T(X) RJ45 + 4*100M SC (single-mode, 20KM) + 2*1000M SFP, dual power supply 12/24/48VDC (12~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-16T4GS-2LV | Layer 2, 16*10/100Base-T(X) RJ45 + 4*1000M SFP, dual power supply 12/24/48VDC (9~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-20T4GS-2LV | Layer 2, 20*10/100Base-T(X) RJ45 + 4*1000M SFP, dual power supply 12/24/48VDC (9~60VDC), DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-12T4F4GS-HV (MM,SC) | Layer 2, 12*10/100Base-T(X) RJ45 + 4*100M SC (multi-mode, 2KM) + 4*1000M SFP, single power supply 110/220VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-12T4F4GS-HV (MM,ST) | Layer 2, 12*10/100Base-T(X) RJ45 + 4*100M ST (multi-mode, 2KM) + 4*1000M SFP, single power supply 110/220VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-12T4F4GS-HV (SM,SC) | Layer 2, 12*10/100Base-T(X) RJ45 + 4*100M SC (single-mode, 20KM) + 4*1000M SFP, single power supply 110/220VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-12T4F4GS-HV (SM,ST) | Layer 2, 12*10/100Base-T(X) RJ45 + 4*100M ST (single-mode, 20KM) + 4*1000M SFP, single power supply 110/220VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-14T2F4GS-HV (MM,SC) | Layer 2, 14*10/100Base-T(X) RJ45 + 2*100M SC (multi-mode, 2KM) + 4*1000M SFP, single power supply 110/220VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-14T2F4GS-HV (MM,ST) | Layer 2, 14*10/100Base-T(X) RJ45 + 2*100M ST (multi-mode, 2KM) + 4*1000M SFP, single power supply 110/220VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-14T2F4GS-HV (SM,SC) | Layer 2, 14*10/100Base-T(X) RJ45 + 2*100M SC (single-mode, 20KM) + 4*1000M SFP, single power supply 110/220VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-14T2F4GS-HV (SM,ST) | Layer 2, 14*10/100Base-T(X) RJ45 + 2*100M ST (single-mode, 20KM) + 4*1000M SFP, single power supply 110/220VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-16T4GS-HV | Layer 2, 16*10/100Base-T(X) RJ45 + 4*1000M SFP, single power supply 110/220VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
| IES7120-20T4GS-HV | Layer 2, 20*10/100Base-T(X) RJ45 + 4*1000M SFP, single power supply 110/220VAC/DC, DIN-Rail mounting, -40~75℃ operating temperature |
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3u for 100Base-FX
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE802.1p for CoS
IEEE 802.1X for 802.1X Authentication
IEEE 802.1AB for LLDP
ITU-T G.8032 for ERPS
IEEE 802.3ad for LACP
Management
SNMP v1/v2c/v3, RMON, LLDP, PoE, QoS, DHCP Server, DHCP Snooping, port settings, dynamic/static MAC addresses, MAC/IPv4, storm suppression, user passwords, file management, log management, port statistics, link flapping protection, Modbus TCP monitoring
Security
User Privilege Classification, Port and Power Alarm, SSH Configuration, HTTPS Configuration, Access Control, SNMP, RMON, Port Limit Control, Port Security, NAS, ACL, Ethernet Services, RADIUS Server Authentication, TACACS + Server Authentication, Port Alarm, Temperature Alarm, Power Supply Alarm, Network Load Alarm
Switch Function
802.1Q VLAN, link aggregation, static aggregation, flow control, LACP
Unicast / Multicast
Multicast filtering, IGMP Snooping
Redundancy Technology
Ring, STP/RSTP/MSTP, ERPS, MRP
Troubleshooting
Log record, port mirroring, Ping, Traceroute, network cable diagnosis, SFP DDM
Time Management
NTP, Time Zone Configuration
Interface
100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/ MDI-X Autotunning
100M fiber port: 100Base-X, optional SC/ST/FC
Gigabit SFP: 1000Base-X SFP slot, support forced 100M
Console port: CLI command line management port (RS-232), RJ45
Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity is 5A@30VDC or 10A@125VAC
Indicator
Power indicator, running indicator, alarm indicator, interface indicator
Switch Property
Transmission mode: store and forward
MAC address: 8K
Cache: 4.1Mbit
Backplane bandwidth: 12.8Gbps
Switch time delay: <10μs
Power Supply
Adopt 4-pin 7.62mm pitch terminal blocks
DC product
2 x 12/24/48VDC (9~60VDC), dual power supply redundancy, support anti-reverse connection
AC product
1 x 110/220VAC/DC power supply input
Power Consumption
IES7120-12T4F4GS-2LV:
No-load: 11.571W@48VDC
Full-load: 12.96W@48VDC
IES7120-12T4F4GS-HV:
No-load: 8.9W@220VAC
Full-load: 12.9W@220VAC
IES7120-14T2F4GS-2LV:
No-load: 6.79W@48VDC
Full-load: 11.15W@48VDC
IES7120-14T2F4GS-HV:
No-load: 6.3W@220VAC
Full-load: 10.5W@220VAC
IES7120-16T4GS-2LV:
No-load: 5.2W@48VDC
Full-load: 9.6W@48VDC
IES7120-16T4GS-HV:
No-load: 4.7W@220VAC
Full-load: 9.0W@220VAC
IES7120-20T4GS-2LV:
No-load: 4.9W@48VDC
Full-load: 9.6W@48VDC
IES7120-20T4GS-HV:
No-load: 5.1W@220VAC
Full-load: 9.4W@220VAC
Working Environment
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%~95% (no condensation)
Mechanical Structure
Housing: IP40 protection, metal
Installation: DIN-Rail or wall Mounting
Dimension (W x H x D): 70mm×160mm×130mm
Weight: 1.040kg
Industrial Standard
IEC 61000-4-2 (ESD, electronic static discharge), Level 4
Air discharge: ± 15kV
Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4
Power supply: ±4kV
Ethernet interface: ±2kV
Relay: ±4kV
IEC 61000-4-5 (Surge), Level 4
Power supply: common mode ±4kV, differential mode ±2kV
Ethernet port: common mode ±4kV, differential mode ±2kV
Relay: common mode ±4kV, differential mode ±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
