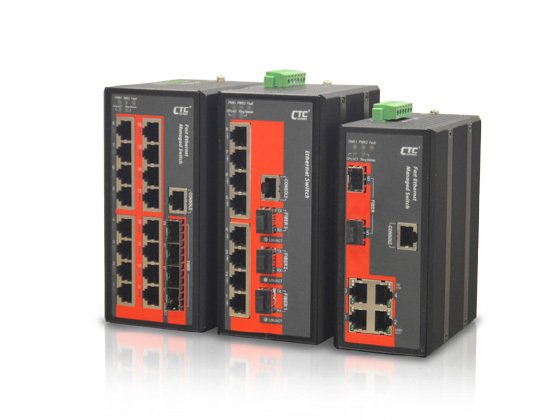

IFS-1604GSM-E
Industrial managed 16x10/100BaseTX(RJ45) + 4x100/1000Base-X SFP, daul 12/24/48VDC power input, -40~75°C
Genel Bilgi
IFS-402GSM, IFS-803GSM ve IFS-1604GSM serileri; 4/8/16 adet 10/100/1000Base-TX port ve 2/3/4 adet Gigabit/Fast Ethernet SFP port içeren yönetilebilir endüstriyel anahtar serileridir. Bu seriler STP/RSTP/MSTP, ITU-T G.8032 ERPS ve multiple u-Ring, Layer 2 Ethernet, IGMP, VLAN, QoS, Security, IPv6, bandwidth control, port mirroring, cable diagnostic ve Green Ethernet gibi birçok fonksiyonu desteklemektedir. DIN rayı ve duvar montajı opsiyonlu olan bu anahtarlar; endüstriyel uygulamalar, akıllı ulaşım sistemleri (ITS) ve askeri uygulamalar gibi zorlu ortamlar için uygundur.
Modellere Göre Port Yapısı
- 4x 10/100Base-TX RJ-45 + 2x 100/1000Base-X SFP Fiber (IFS-402GSM)
- 8x 10/100Base-TX RJ-45 + 3x 100/1000Base-X SFP Fiber (IFS-803GSM)
- 16x 10/100Base-TX RJ-45 + 4x 100/1000Base-X SFP Fiber (IFS-1604GSM)
Sertifikalar
- UL60950-1, CE, FCC, EN50121-4, NEMA TS2
- Heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4
Öne Çıkan Özellikler
- Kablo teşhis aracı: kablo normal/bozuk durum ve mesafe ölçümü
- IP30 koruma sınıfı, fan’sız sağlam metal gövde
- IEEE802.3az EEE (Green Ethernet) ile enerji tasarrufu
- STP, RSTP, MSTP, ITU-T G.8032 ERPS ile yedekli ağ yapısı
- 5 u-Ring desteği (detay için: u-Ring White Paper)
- u-Ring ile < 10ms toparlanma süresi, 250 cihaza kadar destek
- DHCP Server/Client/Relay/Snooping ve Option 82 desteği
- QoS, CoS, bandwidth control, Storm Control, DiffServ
- VLAN: IEEE802.1q, MAC/IP/Protokol bazlı, GVRP, MVR
- Dinamik (LACP) ve statik link agregasyon
- IGMP snooping v1/v2/v3, IGMP filtreleme, proxy reporting
- Gelişmiş güvenlik: IEEE802.1X, RADIUS, ACL, TACACS+, SSL/SSH
- TFTP/HTTP yazılım güncelleme, yedekli firmware
- IEEE1588 PTP V2 ile hassas zaman senkronizasyonu
- RMON, MIB II, port mirroring, Syslog, DNS, NTP, LLDP
- IPv6 desteği: Telnet/ICMPv6
- Yönetim: CLI, Web, SNMP v1/v2c/v3, Telnet
- SmartConfig ile toplu cihaz yapılandırma
- SmartView merkezi yönetim desteği
- 50 SmartView sunucusu ile 25.000 cihaza kadar EMS desteği
| Toplam Port Sayısı | : | 20 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 16 |
| 100/1000Base SFP | : | 4 |
|
Specifications |
||||
|
Standard |
IEEE 802.3 |
10Base-T 10Mbit/s Ethernet |
||
|
IEEE 802.3u |
100Base-TX, 100Base-FX, Fast Ethernet |
|||
|
IEEE 802.3z |
1000Base-X Gbit/s Ethernet over Fiber-Optic |
|||
|
IEEE 802.1d |
STP (Spanning Tree Protocol) |
|||
|
IEEE 802.1w |
RSTP (Rapid Spanning Tree Protocol ) |
|||
|
IEEE 802.1s |
MSTP (Multiple Spanning Tree Protocol) |
|||
|
ITU-T G.8032 / Y.1344 |
ERPS (Ethernet Ring Protection Switching) |
|||
|
IEEE 802.1Q |
Virtual LANs (VLAN) |
|||
|
IEEE 802.1X |
Port based and MAC based Network Access Control, Authentication |
|||
|
IEEE 802.3ac |
Max frame size extended to 1522Bytes. |
|||
|
IEEE 802.3ad |
Link aggregation for parallel links with LACP(Link Aggregation Control Protocol) |
|||
|
IEEE 802.3x |
Flow control for Full Duplex |
|||
|
IEEE 8 02.1ad |
Stacked VLANs, Q-in-Q |
|||
|
IEEE 8 02.1p |
LAN Layer 2 QoS/CoS Protocol for Traffic Prioritization |
|||
|
IEEE 8 02.1ab |
Link Layer Discovery Protocol (LLDP) |
|||
|
IEEE 802.3az |
EEE (Energy Efficient Ethernet) |
|||
|
VLAN ID |
4094 IEEE802.1Q VLAN VID |
|||
|
Switch Architecture |
Back-plane (Switching Fabric): 4.8Gbps (IFS-402GSM) , 7.6Gbps (IFS-803GSM) 11.2Gbps (IFS-1604GSM) Full wire-speed |
|||
|
Data Processing |
Store and Forward |
|||
|
Flow Control |
IEEE 802.3x for full duplex mode Back pressure for half duplex mode |
|||
|
Network Connector
|
4x 10/100Base-TX RJ-45 + 2x 100/1000Base-X SFP Slot (IFS-402GSM) 8x 10/100Base-TX RJ-45 and 3x 100/1000Base-X SFP Slot (IFS-803GSM) 16x 10/100Base-TX RJ-45 and 4x 100/1000Base-X SFP Slot (IFS-1604GSM) RJ-45 UTP port support Auto negotiation speed, Auto MDI/MDI-X function, SFP port support 100/1000M dual speed with DDMI
|
|||
|
Console |
R S -232 (R J - 45) |
|||
|
Network Cable
|
UTP/STP above Cat. 5e cable |
|||
|
EIA/TIA-568 100-ohm (100m) |
||||
|
Protocols |
CSMA/CD |
|||
|
Reverse Polarity Protection |
Supported |
|||
|
Overload Current Protection |
Supported |
|||
|
CPU Watch Dog |
Supported |
|||
|
Power Supply |
Redundant Dual DC 12/24/48V (9.6~60VDC) Input power (Removable Terminal Block ) |
|||
|
Power Consumption
|
Input Voltage |
IFS- 402GSM |
IFS- 803GSM |
IFS- 1604GSM |
|
12VDC |
5.7W |
6.5W |
10.8W |
|
|
24VDC |
5.8W |
7W |
10.6W |
|
|
48VDC |
8.5W |
8.6W |
12.5W |
|
|
LED
|
Per unit: Power 1 (Green), Power 2 (Green), Fault (Amber), CPU Act (Green), Ring Master (Yellow) |
|||
|
Per RJ-45 port: 10/100 Link/Active (Green) |
||||
|
SFP Fiber Per port: Link/Active (Green) |
||||
|
Jumbo Frame |
9.6KB |
|||
|
IEEE802.3ac |
Max frame size extended to 1522Bytes (allow Q-tag in packet) |
|||
|
MAC Address Table |
8K |
|||
|
Memory Buffer |
512K Bytes for packet buffer |
|||
|
Warning Message |
System Syslog, SMTP/ e-mail event message, alarm relay |
|||
|
Alarm Relay Contact |
Relay outputs with current carrying capacity of 1 A @24VDC |
|||
|
Removable Terminal Block |
Provide 2 redundant power, alarm relay contact, 6 Pin |
|||
|
Operating Temperature |
-10 ~ 60°C (IFS-402GSM, IFS-803GSM, IFS-1604GSM) -40 ~ 75°C (IFS-402GSM-E, IFS-803GSM-E, IFS-1604GSM-E) |
|||
|
Operating Humidity |
5% to 95% (Non-condensing) |
|||
|
Storage Temperature |
-40 ~ 85°C |
|||
|
Housing |
Rugged Metal, IP30 Protection, Fanless |
|||
|
Dimensions |
106 x 62.5 x 135 mm (D x W x H) (IFS-402GSM) 106 x 72 x 152 mm (D x W x H) (IFS-803GSM, IFS-1604GSM) |
|||
|
Weight |
0.715kg (IFS-402GSM) , 0.79kg (IFS-803GSM) 0.82kg (IFS-1604GSM) |
|||
|
Installation Mounting |
DIN Rail mounting or wall mounting (optional) |
|||
|
MTBF
|
861,962hrs (IFS-402GSM) 612,523hrs (IFS-803GSM) 419, 048 Hrs (IFS-1604GSM) ( MI L- HDBK -217 ) |
|||
|
Warranty |
5 years |
|||
|
Certification |
||||
|
EMC |
CE |
|||
|
EMI (Electromagnetic Interference) |
FCC Part 15 Subpart B Class A,CE EN55022 Class A |
|||
|
Railway Traffic |
EN50121- 4 |
|||
|
Immunity for Heavy Industrial Environment |
EN61000-6-2 |
|||
|
Emission for Heavy Industrial Environment |
EN61000-6-4 |
|||
|
EMS (Electromagnetic Susceptibility) Protection Level |
EN61000-4-2 (ESD) Level 3, Criteria B EN61000-4-3 (RS) Level 3, Criteria A EN61000-4-4 (Burst) Level 3, Criteria A EN61000-4-5 (Surge) Level 3, Criteria B EN61000-4-6 (CS) Level 3, Criteria A EN61000-4-8 (PFMF, Magnetic Field) Field Strength: 300A/m, Criteria A |
|||
|
Safety |
UL60950-1 |
|||
|
Shock |
IEC 60068 -2-27 |
|||
|
Freefall |
IEC 60068 -2-32 |
|||
|
Vibration |
IEC 60068 -2-6 |
|||
