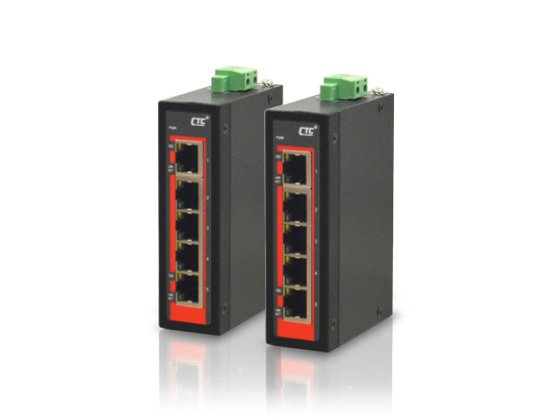

IFS-500C
Industrial compact size 5x10/100MbpsTX, daul 12/24/48VDC power input, -10~60oC
IFS-500C serisi, 5 adet 10/100Base-TX port içeren kompakt yönetilemez endüstriyel Fast Ethernet anahtar serisidir. DIN rail ve duvar montaj opsiyonlu olan bu anahtarlar endüstriyel uygulamalar, akıllı ulaşım sistemleri (ITS) dışında askeri uygulamalar gibi zorlu ortamlar için de uygundur.
• 12/24/48VDC (9.6~60VDC), veya AC24V (18~36VAC) besleme
• Fansız IP30 metal muhafaza
• Kolay kurulumlu kompakt yapı
• Endüstriyel çalışma sıcaklığı -40 ~ 75°C ("-E" versiyonu)
• Çok düşük güç tüketimi
• CE, FCC, ve raylı sistemler için EN50121-4
• EMS, EMI, EN61000-6-2, EN61000-6-4
| Toplam Port Sayısı | : | 5 |
| Çalışma Sıcaklığı | : | -10/+60C |
| 10/100BaseT(X) | : | 5 |
|
Standards |
IEEE 802.3 10Base-T Ethernet |
||
|
IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet |
|||
|
IEEE 802.3x Flow Control and Back Pressure |
|||
|
Switch Architecture |
Back-plane (Switching Fabric) : 1.0 Gbps Full wire-speed |
||
|
Data Processing |
Store and Forward |
||
|
Transfer Rate |
14,880pps for Ethernet port |
||
|
148,800pps for Fast Ethernet port |
|||
|
Flow Control |
IEEE 802.3x flow control, back pressure flow control |
||
|
MAC Address Table |
1K |
||
|
Packet Buffer Size |
448Kbits |
||
|
Network Connector |
5x RJ-45 |
||
|
RJ-45 Port: Auto MDI/MDI-X function, 10/100Base-TX auto negotiation speed, Full/Half duplex |
|||
|
Network Cable |
10Base-T: 2-pair UTP/STP Cat. 5 cable |
||
|
EIA/TIA-568 100-ohm (100m) |
|||
|
100Base-TX: 2-pair UTP/STP Cat. 5 cable |
|||
|
EIA/TIA-568 100-ohm (100m) |
|||
|
Protocols |
CSMA/CD |
||
|
LED |
Per unit: Power (Green) |
||
|
RJ-45 Per port: Link/Active (Green), Speed 100 ( Yellow) |
|||
|
Reverse Polarity Protection |
For DC input power protection |
||
|
Overload Current Protection |
Supported |
||
|
Power Supply |
DC 12/24/48V (9.6~60VDC) or AC 24V (18~36VAC) input power (Removable Terminal Block) |
||
|
Power Consumption |
Input Voltage |
Power Consumption(Watt) |
|
|
DC 12V |
0.9W |
||
|
DC 24V |
1.2W |
||
|
DC 48V |
2W |
||
|
Removable Terminal Block |
Provides for input power (2 Pin) |
||
|
Operating Temperature |
-10 ~ 60°C (IFS-500C) |
||
|
-40 ~ 75°C ( I F S - 5 0 0 C- E |
|||
|
Operating Humidity |
5% to 95% (Non-condensing) |
||
|
Storage Temperature |
-40 ~ 85°C |
||
|
Housing |
Rugged Metal, IP30 Protection, Fanless |
||
|
Dimensions |
70 x 30 x 103 mm (D x W x H) |
||
|
Weight |
220g |
||
|
Installation Mounting |
DIN Rail mounting, or wall mounting (Optional) |
||
|
MTBF |
1,738,327 Hours ( M I L- H D B K -217 ) |
||
|
Warranty |
5 years |
||
|
Certification |
|||
|
EMC/EMS |
CE |
||
|
EMI (Electromagnetic Interference)
|
FCC Part 15 Subpart B Class A, CE
|
||
|
Railway Traffic |
EN50121- 4
|
||
|
Immunity for Heavy Industrial Environment |
EN61000-6-2
|
||
|
Emission for Heavy Industrial Environment |
EN61000-6-4 |
||
|
EMS (Electromagnetic Susceptibility) Protection Level
|
EN61000-4-2 (ESD) Level 3, Criteria B
|
||
|
EN61000-4-3 (RS) Level 3, Criteria A
|
|||
|
EN61000-4-4 (Burst) Level 3, Criteria A
|
|||
|
EN61000-4-5 (Surge) Level 3, Criteria B
|
|||
|
EN61000-4-6 (CS) Level 3, Criteria A
|
|||
|
EN61000-4-8 (PFMF, Magnetic Field) Field Strength: 300A/m, Criteria A |
|||
|
Shock |
|||
