IGS-812SM
Industrial managed 8x10/100/1000BaseTX(RJ45) + 12x100/1000Base-X SFP, dual 12/24/48VDC power input, -10/60oC

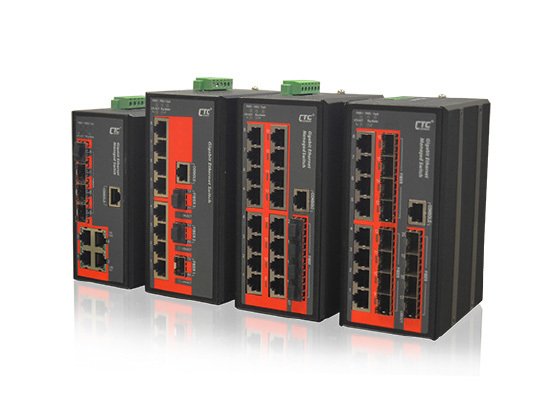

IGS-404SM, IGS-803SM, IGS-812SM, IGS-1604SM serileri, 4~16 10/100/1000Base-T port ve 3~12 Gigabit/Fast Ethernet SFP port içeren yönetilebilir endüstriyel anahtar serisidir. Bu seriler STP/RSTP/MSTP/ ITU-T G.8032 ERPS ve multiple u-Ring, layer 2 Ethernet IGMP, VLAN, QoS, Security, IPv6, bandwidth control, port mirroring, cable diagnostic ve Green Ethernet gibi birçok fonksiyonu desteklemektedir. DIN rail ve duvar montaj opsiyonlu olan bu anahtarlar endüstriyel uygulamalar, akıllı ulaşım sistemleri (ITS) dışında askeri uygulamalar gibi zorlu ortamlar için de uygundur.
- 4x 10/100/1000Base-T RJ-45 and 4x 100/1000Base-X SFP Fiber (IGS-404SM)
- 8x 10/100/1000Base-T RJ-45 and 3x 100/1000Base-X SFP Fiber (IGS-803SM)
- 8x 10/100/1000Base-T RJ-45 and 12x 100/1000Base-X SFP Fiber (IGS-812SM)
- 16x 10/100/1000Base-T RJ-45 and 4x 100/1000Base-X SFP Fiber (IGS-1604SM)
- UL60950-1, CE, FCC, Rail Traffic EN50121-4, Traffic control NEMA TS2 certified
- Heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
- Cable diagnostic, Measuring cable normal or broken point distance
- Rugged Metal, IP30 Protection & Fanless design
- Supports Green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet) management to optimize the power consumption
- STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
- Provides 5 instances that each can support u-Ring, u-Chain or SubRing type for flexible uses. Supports up to 5 rings in one device (White Paper)
- u-Ring for Redundant Cabling, recovery time <10ms in 250 devices
- DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay option 82
- QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
- IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, GVRP, MVR
- Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
- IGMP snooping V1/V2/V3, IGMP Filtering/Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
- Software upgrade via TFTP and HTTP, redundant firmware to avoid upgrade failure
- Supports IEEE1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
- RMON, MIB II, Port mirroring, Event syslog, DNS, NTP, SNTP, IEEE802.1ab LLDP
- Supports IPv6 Telnet server /ICMP v6
- CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management
- Provides SmartConfig for quick and easy mass configuration tool (Please see Catalog chapter 1- Software Management for more details)
- Supports SmartView for Centralized management (Please see Catalog chapter 1- Software Management for more details)
- Supporting Central EMS for management of up to 50 SmartView Server, and maximum up to 25,000 devices
| Toplam Port Sayısı | : | 20 |
| Çalışma Sıcaklığı | : | -10/+60C |
| 10/100/1000BaseT(X) | : | 8 |
| 100/1000Base SFP | : | 12 |
|
Specifications |
||||||
|
Standard |
IEEE 802.3 |
10Base-T 10Mbit/s Ethernet |
||||
|
IEEE 802.3u |
100Base-TX, 100Base-FX, Fast Ethernet |
|||||
|
IEEE 802.3ab |
1000Base-T Gbit/s Ethernet over twisted pair |
|||||
|
IEEE 802.3z |
1000Base-X Gbit/s Ethernet over Fiber-Optic |
|||||
|
IEEE 802.1d |
STP (Spanning Tree Protocol) |
|||||
|
IEEE 802.1w |
RSTP (Rapid Spanning Tree Protocol) |
|||||
|
IEEE 802.1s |
MSTP (Multiple Spanning Tree Protocol) |
|||||
|
ITU-T G.8032 / Y.1344 |
ERPS (Ethernet Ring Protection Switching) |
|||||
|
IEEE 802.1Q |
Virtual LANs (VLAN) |
|||||
|
IEEE 802.1X |
Port based and MAC based Network Access Control, Authentication |
|||||
|
IEEE 802.3ac |
Max frame size extended to 1522Bytes. |
|||||
|
IEEE 802.3ad |
Link aggregation for parallel links with LACP(Link Aggregation Control Protocol) |
|||||
|
IEEE 802.3x |
Flow control for Full Duplex |
|||||
|
IEEE 8 02.1ad |
Stacked VLANs, Q-in-Q |
|||||
|
IEEE 8 02.1p |
LAN Layer 2 QoS/CoS Protocol for Traffic Prioritization |
|||||
|
IEEE 8 02.1ab |
Link Layer Discovery Protocol (LLDP) |
|||||
|
IEEE 802.3az |
EEE (Energy Efficient Ethernet) |
|||||
|
VLAN ID |
4094 IEEE802.1Q VLAN VID |
|||||
|
Switch Architecture |
Back-plane (Switching Fabric): 16Gbps (IGS-404SM), 22Gbps (IGS-803SM) 40Gbps (IGS-812SM, IGS-1604SM) Full wire-speed |
|||||
|
Data Processing |
Store and Forward |
|||||
|
Flow Control |
IEEE 802.3x for full duplex mode Back pressure for half duplex mode |
|||||
|
Network Connector
|
4x 10/100/1000Base-T RJ-45 + 4x 100/1000Base-X SFP connector (IGS-404SM) 8x 10/100/1000Base-T RJ-45 + 3x 100/1000Base-X SFP connector (IGS-803SM) 8x 10/100/1000Base-T RJ-45+ 12x 100/1000Base-X SFP connector (I G S - 812 SM) 16x 10/100/1000Base-T RJ-45+ 4x 100/1000Base-X SFP connector (IGS -16 0 4SM) RJ-45 UTP port support Auto negotiation speed, Auto MDI/MDI-X function, SFP port support dual speed with DDMI
|
|||||
|
Console |
R S -232 (R J - 45) |
|||||
|
Network Cable
|
UTP/STP above Cat. 5e cable |
|||||
|
EIA/TIA-568 100-ohm (100m) |
||||||
|
Protocols |
CSMA/CD |
|||||
|
Reverse Polarity Protection |
Supported for power input |
|||||
|
Overload Current Protection |
Supported |
|||||
|
CPU Watch Dog |
Supported |
|||||
|
Power Supply |
Redundant Dual DC 12/24/48V (9.6~60VDC) Input power (Removable Terminal Block ) |
|||||
|
Power Consumption
|
Input Voltage |
IGS- 404SM |
IGS- 803SM |
IGS- 812SM |
IGS- 1604SM |
|
|
12VDC |
8.2W |
8.5W |
14.3W |
14.5W |
||
|
24VDC |
8.1W |
9.1W |
14.2W |
14.4W |
||
|
48VDC |
9.6W |
10.6W |
15.8W |
16.3W |
||
|
LED
|
Per unit: Power 1 (Green), Power 2 (Green), Fault (Amber), CPU Act (Green), Ring Master (Yellow) |
|||||
|
Per RJ-45 port: 10/100 Link/Active (Green) 1000 Link/Active (Amber) |
||||||
|
SFP Fiber Per port: Link/Active (Green) |
||||||
|
Jumbo Frame |
9.6KB |
|||||
|
IEEE802.3ac |
Max frame size extended to 1522Bytes (allow Q-tag in packet) |
|||||
|
MAC Address Table |
8K |
|||||
|
Memory Buffer |
512K Bytes for packet buffer |
|||||
|
Warning Message
|
System Syslog, SMTP/ e-mail event message, alarm relay |
|||||
|
Alarm Relay Contact |
Relay outputs with current carrying capacity of 1 A @24VDC, |
|||||
|
Operating Temperature |
-10 ~ 60°C (IGS-404SM, IGS-803SM, IGS-812SM, IGS-1604SM) -40 ~ 75°C (IGS-404SM-E, IGS-803SM-E, IGS-812SM-E, IGS-1604SM-E) |
|||||
|
Operating Humidity |
5% to 95% (Non-condensing) |
|||||
|
Storage Temperature |
-40 ~ 85°C |
|||||
|
Housing |
Rugged Metal, IP30 Protection, Fanless |
|||||
|
Dimensions |
106 x 62.5 x 135 mm (D x W x H) (IGS-404SM)106 x 72 x152 mm (D x W x H) (IGS-803SM, IGS-812SM, IGS-1604SM |
|||||
|
Weight |
0.725kg (IGS-404SM) 0.78kg (IGS-803SM) 0.795kg(I G S - 812 SM) 0.82kg (IGS -16 0 4SM
|
|||||
|
Installation Mounting |
DIN Rail mounting or wall mounting (optional) |
|||||
|
MTBF
|
861,962 Hours (IGS-404SM) 612,523 Hours (IGS-803SM) 517,181 Hours (I G S - 812 SM) 412,015 Hours (IGS -16 0 4SM) ( M I L- H D B K -217 )
|
|||||
|
Warranty |
5 years |
|||||
|
Certification |
||||||
|
EMC |
CE |
|||||
|
EMI (Electromagnetic Interference) |
FCC Part 15 Subpart B Class A,CE EN55022 Class A |
|||||
|
Railway Traffic |
EN50121- 4 |
|||||
|
Immunity for Heavy Industrial Environment |
EN61000-6-2 |
|||||
|
Emission for Heavy Industrial Environment |
EN61000-6-4 |
|||||
|
EMS (Electromagnetic Susceptibility) Protection Level |
EN61000-4-2 (ESD) Level 3, Criteria B EN61000-4-3 (RS) Level 3, Criteria A EN61000-4-4 (Burst) Level 3, Criteria A EN61000-4-5 (Surge) Level 3, Criteria B EN61000-4-6 (CS) Level 3, Criteria A EN61000-4-8 (PFMF, Magnetic Field) Field Strength: 300A/m, Criteria A |
|||||
|
Safety |
UL60950-1 |
|||||
|
Shock |
IEC 60068 -2-27 |
|||||
|
Freefall |
IEC 60068 -2-32 |
|||||
|
Vibration |
IEC 60068 -2-6 |
|||||
