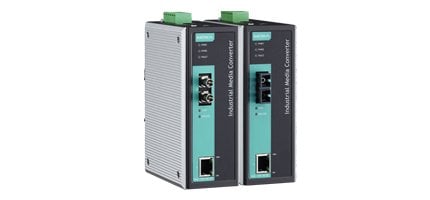

IMC-101-M-SC-T
Industrial Ethernet-to-fiber media converters
IMC-101 serisi endüstriyel medya çeviriciler, 10/100BaseT(X) ve 100BaseFX(SC/ST) arasında endüstriyel sınıf ortam dönüşümü sağlar. IMC-101 serisinin güvenilir endüstriyel tasarımı, endüstriyel otomasyon uygulamalarınızın çalışma sürekliliğini sağlar ve her bir IMC-101 dönüştürücü bir röle çıkışı uyarı alarmı içerir. IMC-101 serisi, tehlikeli bölgeler (Class 1, Division 2/Zone 2, IECEx, DNV, and GL Certification) gibi zorlu endüstriyel ortamlar için tasarlanmıştır ve FCC, UL ve CE standartlarına uygundur. Tüm IMC-101 serisi ürünler %100 yanma testine tabi tutulur.
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- Link Fault Pass-Through (LFP)
- Power failure, port break alarm by relay output
- Redundant power inputs
- -40 to 75°C operating temperature range (T models)
- Designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx)
ÜRÜN SİPARİŞ KODLARI :
| Model | Açıklama |
|---|---|
| IMC-101-M-SC | Industrial 10/100BaseT(X) to 100BaseFX media converter, multi mode, SC fiber connector, 0 to 60°C |
| IMC-101-M-SC-T | Industrial 10/100BaseT(X) to 100BaseFX media converter, multi mode, SC fiber connector, -40 to 75°C |
| IMC-101-M-ST | Industrial 10/100BaseT(X) to 100BaseFX media converter, multi mode, ST fiber connector, 0 to 60°C |
| IMC-101-M-ST-T | Industrial 10/100BaseT(X) to 100BaseFX media converter, multi mode, ST fiber connector, -40 to 75°C |
| IMC-101-S-SC | Industrial 10/100BaseT(X) to 100BaseFX media converter, single mode, SC fiber connector, 40km, 0 to 60°C |
| IMC-101-S-SC-T | Industrial 10/100BaseT(X) to 100BaseFX media converter, single mode, SC fiber connector, -40 to 75°C |
| IMC-101-S-SC-80 | Industrial 10/100BaseT(X) to 100BaseFX media converter, single mode, SC fiber connector, 80km, 0 to 60°C |
| IMC-101-S-SC-80-T | Industrial 10/100BaseT(X) to 100BaseFX media converter, single mode, SC fiber connector, 80km, -40 to 75°C |
| IMC-101-M-SC-IEX | Industrial 10/100BaseT(X) to 100BaseFX media converter, multi mode, SC connector, IECEx, 0 to 60°C operating temperature |
| IMC-101-M-SC-T-IEX | Industrial 10/100BaseT(X) to 100BaseFX media converter, multi mode, SC connector, IECEx, -40 to 75°C operating temperature |
| IMC-101-M-ST-IEX | Industrial 10/100BaseT(X) to 100BaseFX media converter, multi mode, ST connector, IECEx, 0 to 60°C operating temperature |
| IMC-101-M-ST-T-IEX | Industrial 10/100BaseT(X) to 100BaseFX media converter, multi mode, ST connector, IECEx, -40 to 75°C operating temperature |
| IMC-101-S-SC-IEX | Industrial 10/100BaseT(X) to 100BaseFX media converter, single mode, SC connector, 40 km, IECEx, 0 to 60°C operating temperature |
| IMC-101-S-SC-T-IEX | Industrial 10/100BaseT(X) to 100BaseFX media converter, single mode, SC connector, 40 km, IECEx, -40 to 75°C operating temperature |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) |
| Fiber Ports | 100BaseFX (SC/ST connectors) |
| LED Indicators | PWR1, PWR2, FAULT, 10/100M (TP port), 100M (Fiber port), FDX/COL (Fiber port) |
| DIP Switches | 100BaseFX Full/Half duplex selection, port break alarm mask |
| Alarm Contact | One relay output with current carrying capacity of 1 A @ 24 VDC |
| • Optical Fiber | |
| • Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Weight | 630 g (1.39 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 45 VDC redundant inputs |
| Input Current | 320 mA @ 45 VDC max. |
| Connection | Removable terminal block |
| Overload Current Protection | 1.1 A |
| Reverse Polarity Protection | Present |
| • Standards and Certifications | |
| Safety | UL 508 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone2 Ex nA nC op is IIC T4 Gc, IECEx Ex nA nC IIC T4 Gc |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | EN 61000-4-2 (ESD): Contact: 6 kV; Air: 8 kV EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m EN 61000-4-4 (EFT): Power: 2 kV; Signal: 2 kV EN 61000-4-5 (Surge): Power 1 kV; Signal 1 kV EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m EN 61000-4-8 (PFMF) EN 61000-4-11 |
| Green Product | RoHS, CRoHS, WEEE |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Marine | DNV, GL |
| • MTBF (mean time between failures) | |
| Time | 401,000 hrs |
| Standard | MIL-HDBK-217F |
| • Warranty | |
| Warranty Period | 5 years |
